RM0091 Inter-integrated circuit (I

C) interface

Doc ID 018940 Rev 1 483/742

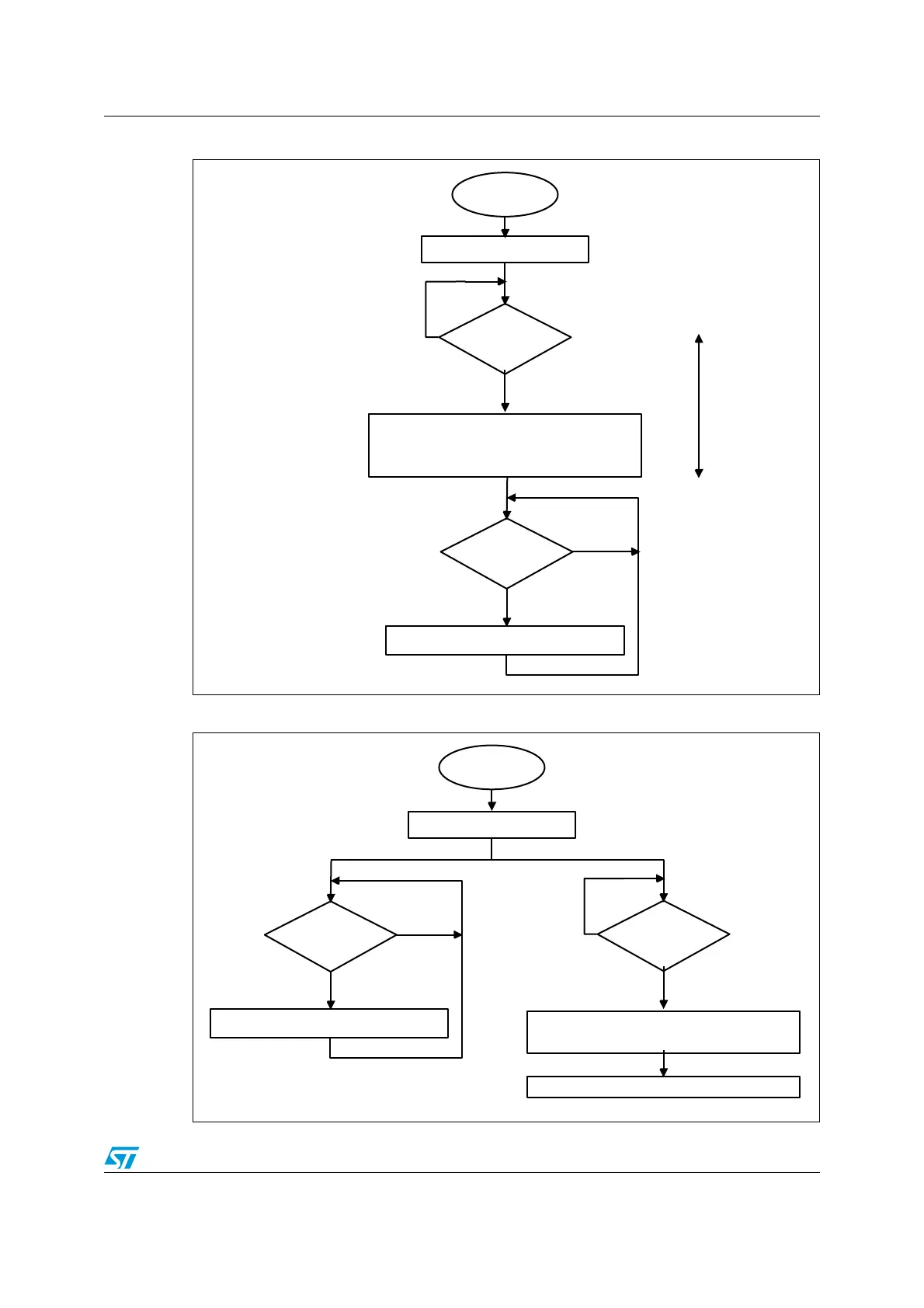

Figure 203. Transfer sequence flowchart for I2C slave transmitter, NOSTRETCH=0

Figure 204. Transfer sequence flowchart for I2C slave transmitter, NOSTRETCH=1

Slave initialization

Slave

transmission

Read ADDCODE and DIR in I2Cx_ISR

Optional: Set I2Cx_ISR.TXE = 1

Set I2Cx_ICR.ADDRCF

Write I2Cx_TXDR.TXDATA

I2Cx_ISR.ADDR

=1?

Yes

I2Cx_ISR.TXIS

=1?

Yes

SCL

stretched

MS19852V1

Slave initialization

Slave

transmission

Optional: Set I2Cx_ISR.TXE = 1

and I2Cx_ISR.TXIS=1

Write I2Cx_TXDR.TXDATA

I2Cx_ISR.STOPF

=1?

Yes

I2Cx_ISR.TXIS

=1?

Yes

Set I2Cx_ICR.STOPCF

Default Chapter1
