General-purpose timer (TIM14) RM0091

358/742 Doc ID 018940 Rev 1

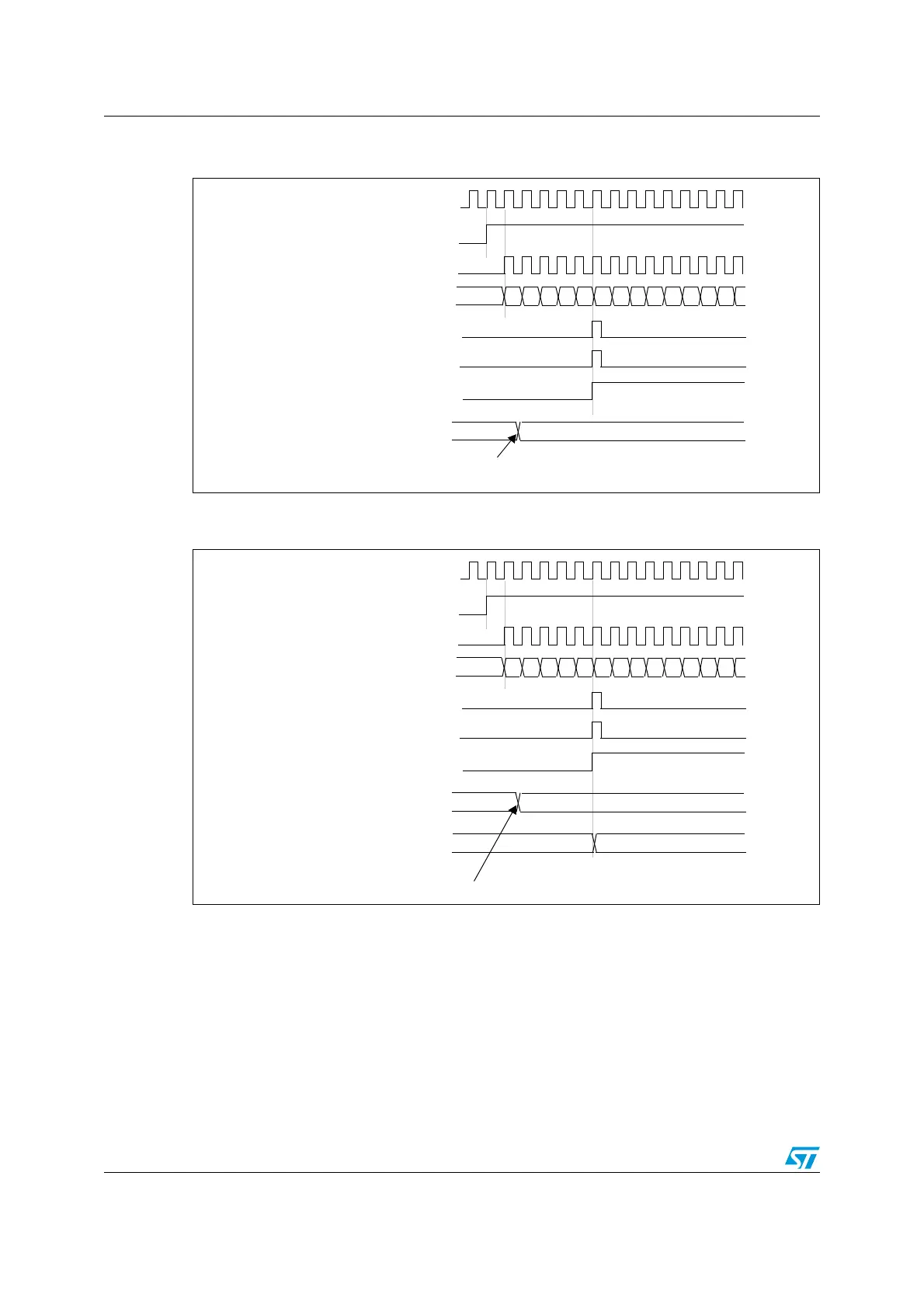

Figure 144. Counter timing diagram, update event when ARPE=0 (TIMx_ARR not

preloaded)

Figure 145. Counter timing diagram, update event when ARPE=1 (TIMx_ARR

preloaded)

CK_PSC

CEN

Timer clock = CK_CNT

Counter register

Update interrupt flag (UIF)

Counter overflow

Update event (UEV)

01 02 03 04 05 06 0732 33 34 35 3631

Auto-reload register

FF 36

Write a new value in TIMx_ARR

CK_PSC

CEN

Timer clock = CK_CNT

Counter register

Update interrupt flag (UIF)

Counter overflow

Update event (UEV)

01 02 03 04 05 06 07F1 F2 F3 F4 F5F0

Auto-reload preload register

F5 36

Auto-reload shadow register

F5 36

Write a new value in TIMx_ARR
