Autopilot system calibration 6 Vehicles
such as front axle, rear axle, or center of track rotation).
7. Re-enter the cab and continue to drive down the guidance line.
8. Turn the vehicle around and then re-engage on the same line in the opposite direction.

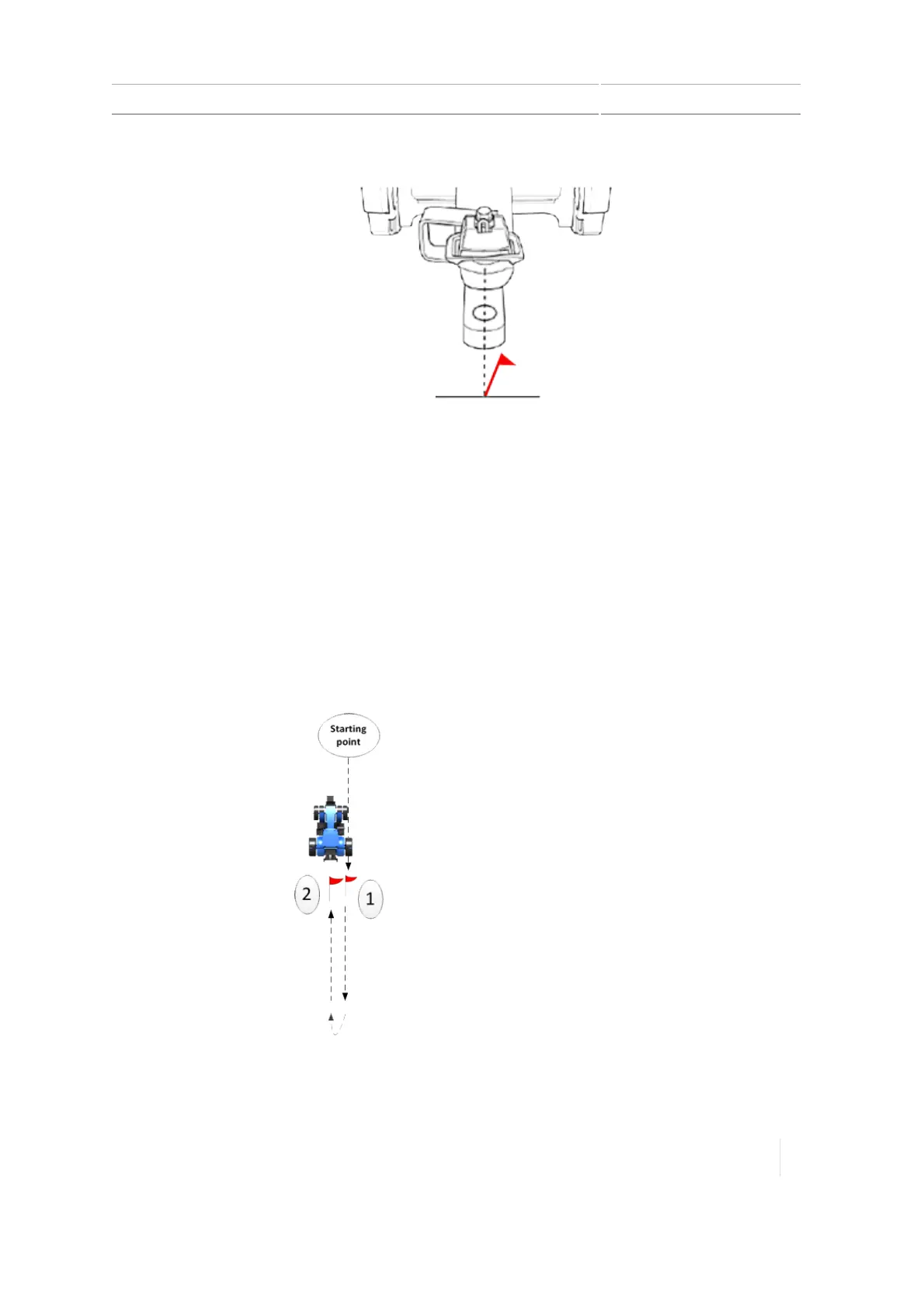

9. Stop the vehicle with the drawbar (or other feature used to mark the center line of the vehicle)
as close to the first flag as possible.
10.
Mark the vehicle's position.
a. Place the vehicle in park and exit the cab.
b. Place a second flag in the ground to mark the
vehicle's center line.
c. Measure the distance between flag 1 and flag 2 and
note it.
Distance between flag 1 and flag 2
(step c):
____________________________
Version 1.075, Revision C TMX-2050 Display User Guide 163
