8 Implements ISOBUS for implements
1.

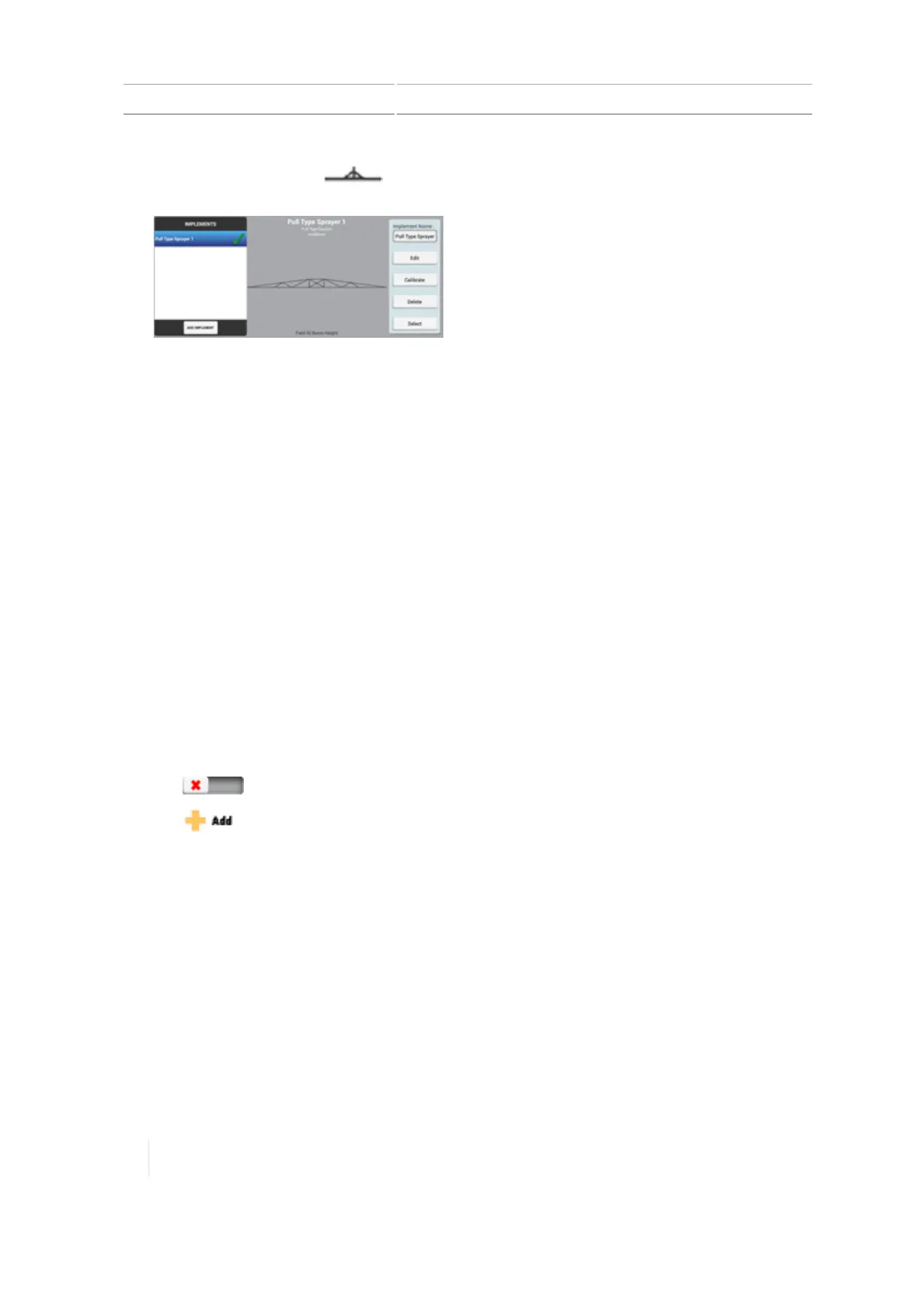

At the Home screen, tap . The Implement setup panel displays.
Tap ADD IMPLEMENT.
2. At the OPERATION section, tap the type of operation you will be performing with the
implement.
3. At the IMPLEMENT / Type section, tap the type of implement you will be using. Then tap Next
to continue.
4. At the NAME section, tap ISOImplement Data. A list of ECUs that are connected to the TMX-
2050 display displays. Optionally, choose the ECUof the implement you will be using.
5. In the Name entry box, the system has pre-named the implement by giving it the name of the
type. You have the option to enter a different name if you want to change it.
6. Tap Next to continue to the MEASUREMENTS section.
7. At the MEASUREMENTS section:
a. If the implement is connected during setup, the system completes the measurements by
getting this information from the ECU you chose in step 4. Verify this information and
make any necessary corrections.
b. If the implement is not connected during setup, enter the measurements manually. See .
Tap Next to continue to APPLICATIONCONTROL.
8.
Tap to turn on the application control feature for the channel.
9.
Tap .
10. Tap Next.
11.
The display takes you to a set of screens to set up the channel, beginning with the TYPE section.
Complete the settings at the TYPEscreen and tap Next.
192 TMX-2050 Display User Guide Version 1.075, Revision C
