Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-25
General Troubleshooting
Side (Toner Door) Switch
1. Enter Service Diagnostics (page 4-8).
2. Run the Side Switch test: Engine Diag > Sensor Test > Side Switch.

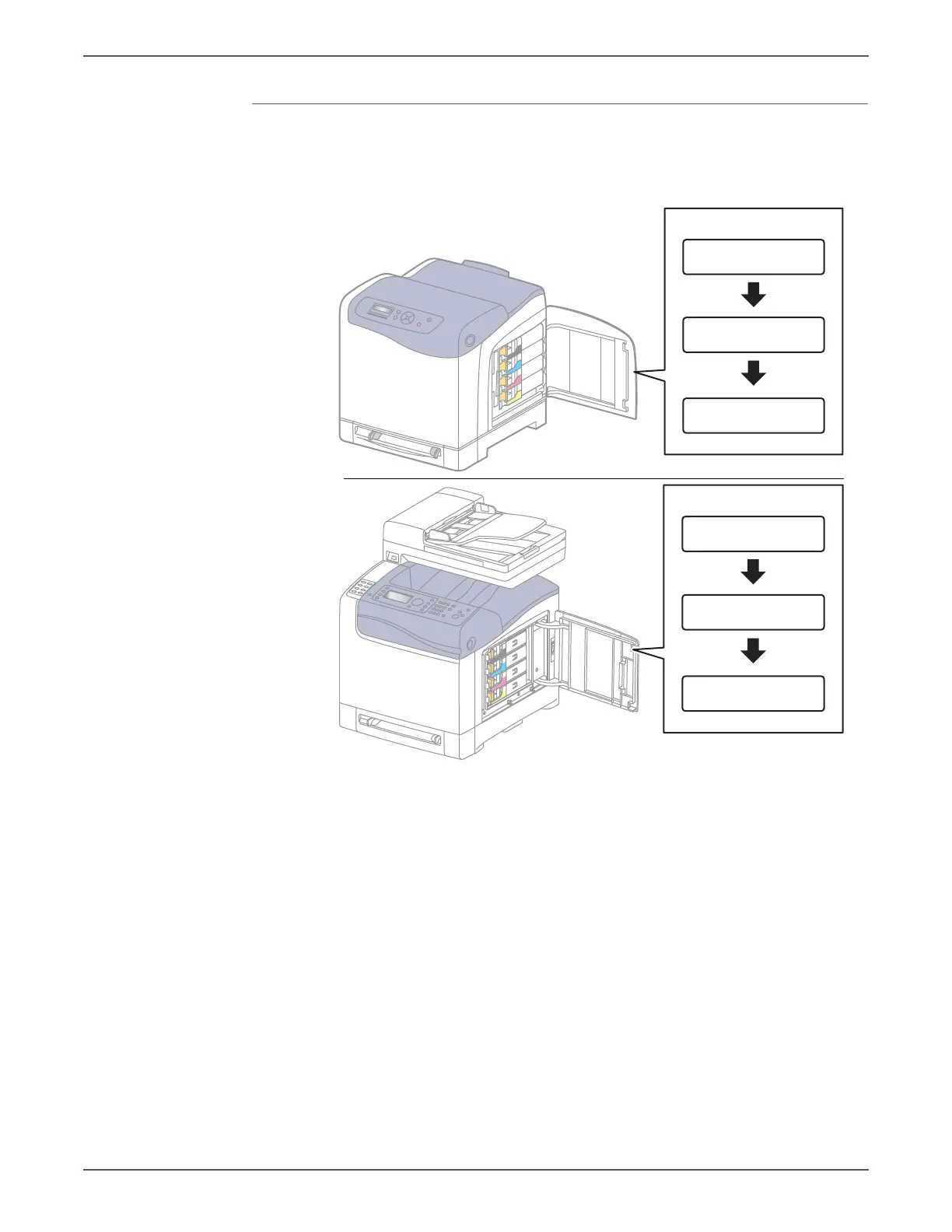

3. Open and close the Toner Door while checking the display.
Note
Press Cancel to stop the test.
Control Panel
Normal
Side Switch
L - 00
Side Switch
H - 00
Side Switch
L - 01
s6500-114
Control Panel
Normal
s6500-113
Side Switch
L - 00
Side Switch
H - 00
Side Switch
L - 01
