4-24 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting

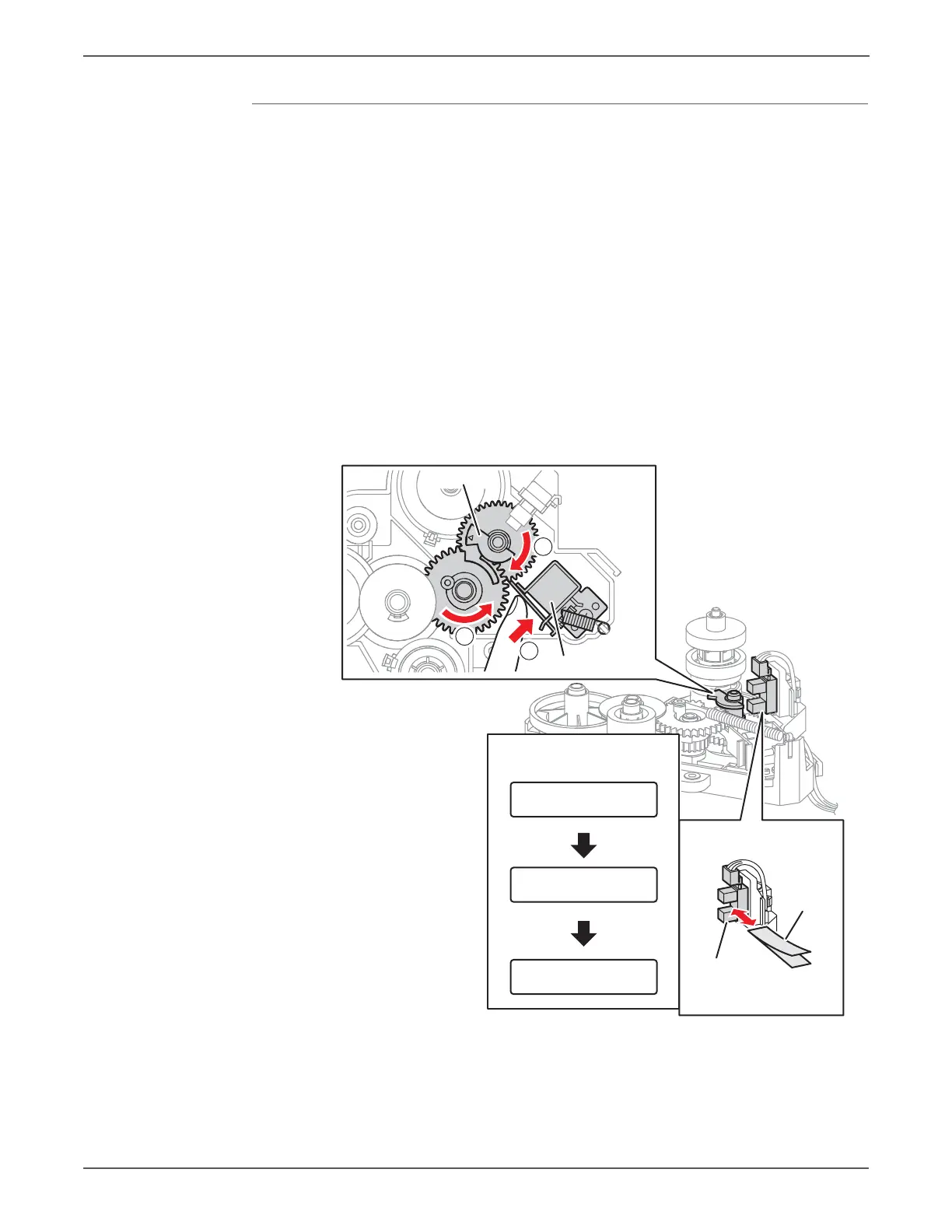

K Mode Sensor
Close the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 1.
3. Open the Front Cover.
4. Lower the Transfer Belt.
5. Remove the Imaging Unit (page 8-7).
6. Remove the Left Side Cover (page 8-18).
7. Remove the Feed Drive Assembly (page 8-117) but do not disconnect the
harness.
8. Run the K Mode Sensor test: Engine Diag > Sensor Test > K Mode Sensor.
9. Press the lever mounted on the solenoid to retract the actuator from the
sensor.
10. Move a strip of paper in and out of the sensor to simulate the actuator.
Press Cancel to stop the test.
Control Panel
K Mode Sensor
Paper
K Mode Solenoid
Actuator
Normal
K Mode Sensor
L - 00
K Mode Sensor
H - 00
K Mode Sensor
L - 01
1
2
3
s6500-110
