Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-35
General Troubleshooting

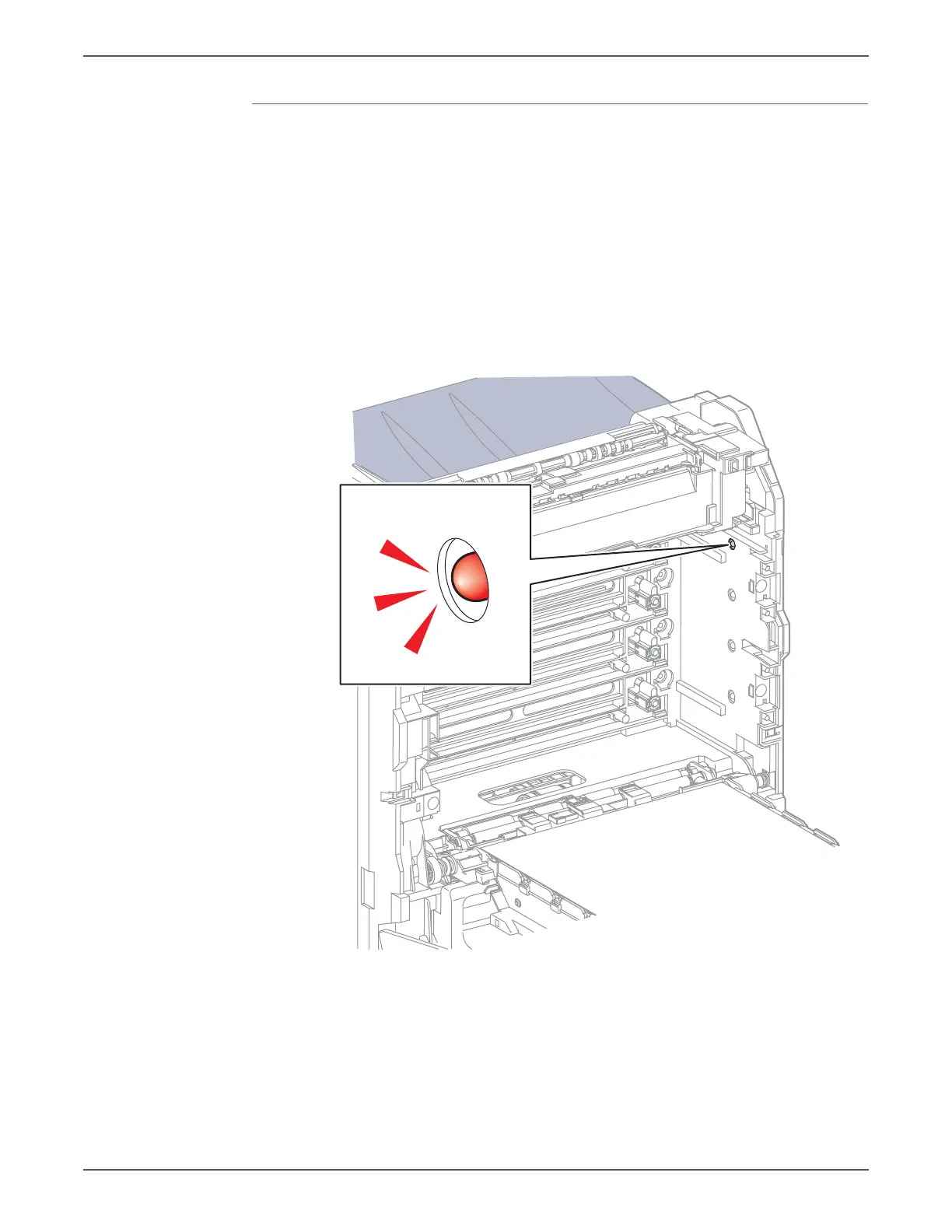

Drum Erase Lamp (K)
Note
Close the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 1.
3. Open the Front Cover.
4. Lower the Transfer Belt.
5. Remove the Imaging Unit (page 8-7).
6. Run the Drum Erase Lamp K test: Engine Diag > Motor Test > Drum Erase
Lamp K.
7. Verify that the lamp is operating.
Note
Press Cancel to stop the test.
s6500-111
