Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-59
General Troubleshooting
Home Position Sensor
1. Enter Service Diagnostics (page 4-8).
2. Open the Platen Cover.
3. Move the carriage forward with the FB Motor test.
4. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Home Position Sensor test.
5. Check the ControL Panel display for Status OFF.
6. Press Stop to return one step higher menu.
7. Reverse the carriage with the FB Motor test.
8. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Home Position Sensor test again.
9. Check the ControL Panel display for Status ON.
10. Press the Stop button to stop the Home Position Sensor test.

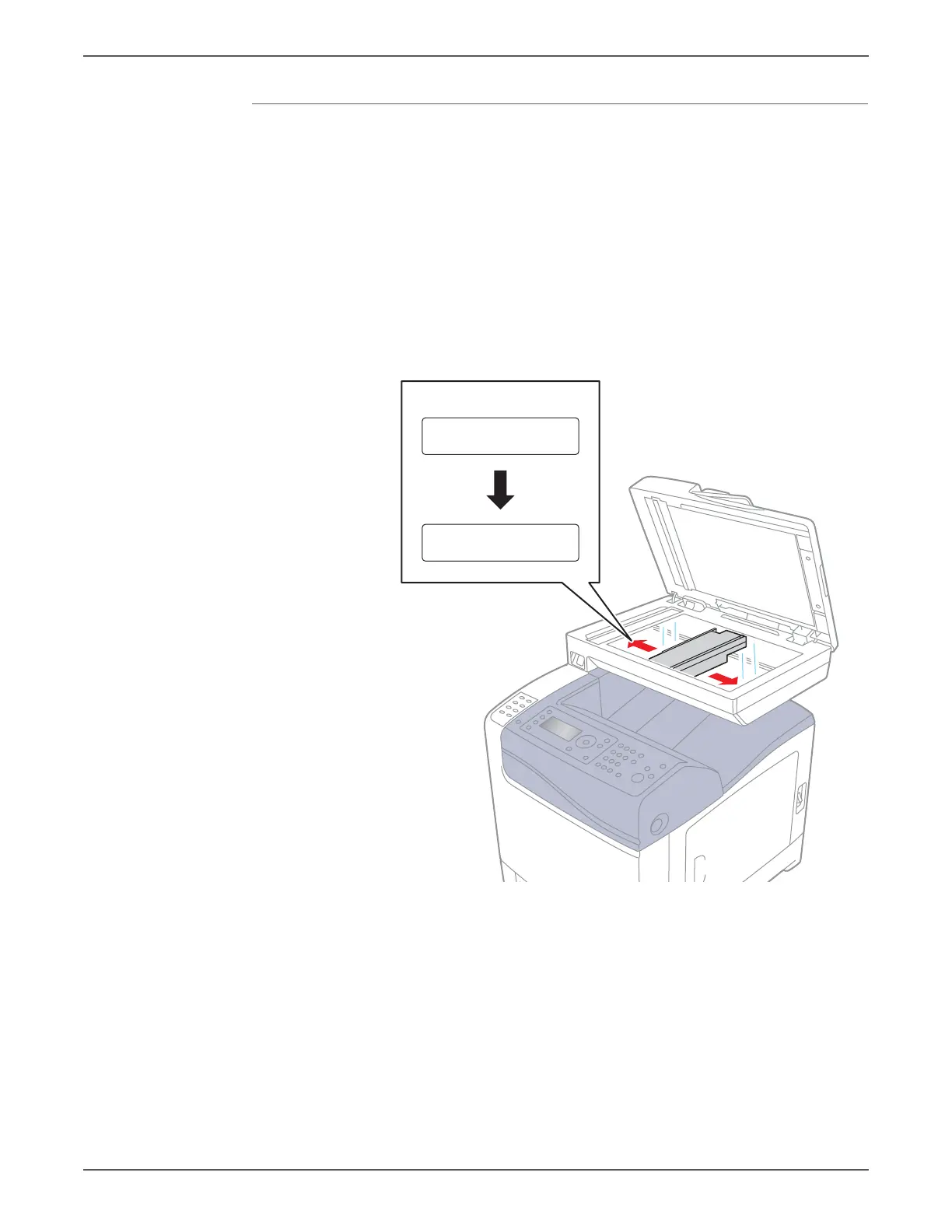

s6500-098
Control Panel
Normal
Home Position Sensor
Status OFF
Home Position Sensor
Status ON
