Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-53
Service Parts Disassembly

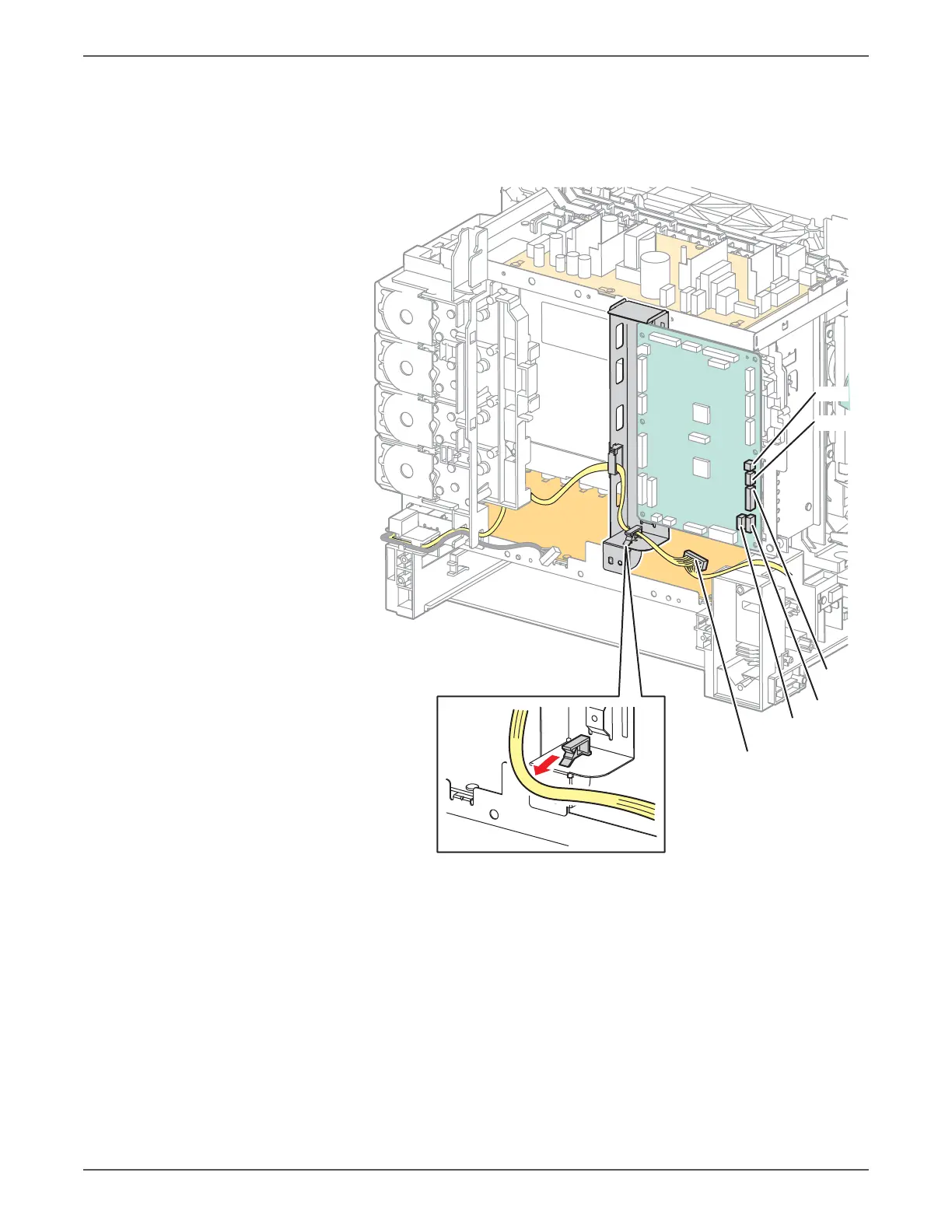

15. Disconnect P/J27 from the MCU Board.
16. Release the Duplexer part of the option harness from the clamp and the edge
saddle on the right MCU Bracket.
17. Release the option harness and the Control Panel harness B from the hooks of
the Dispense Assembly.
18. Disconnect P/J20, P/J23, and P/J28 from the MCU Board, but do not release
the wires from the AC Harness Guide.
19. Disconnect P/J24 and P/J26 from the MCU Board, and release the wires from
the hooks and the harness guide channels.
20. Disconnect P/J16 from the bottom of the MCU Board.
s6500-233
P/J27
P/J26
P/J24
P/J20
P/J28
P/J23
