8-54 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

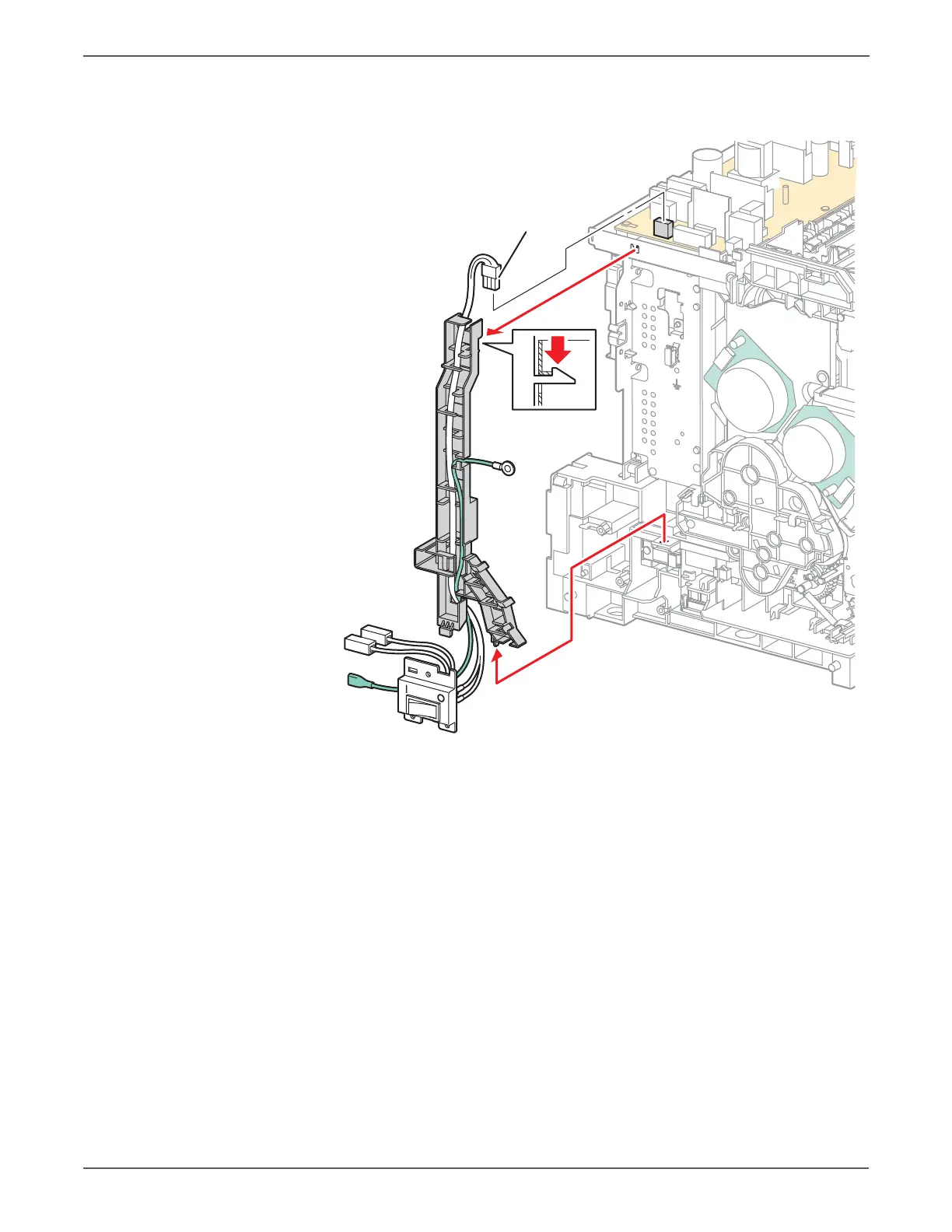

21. Disconnect the Power Switch Harness from the LVPS (P/J48), then release the
hook that secures the AC harness guide to the chassis; allow the guide to lay
to the side.
s6500-232
P/J48
