Service Parts Disassembly

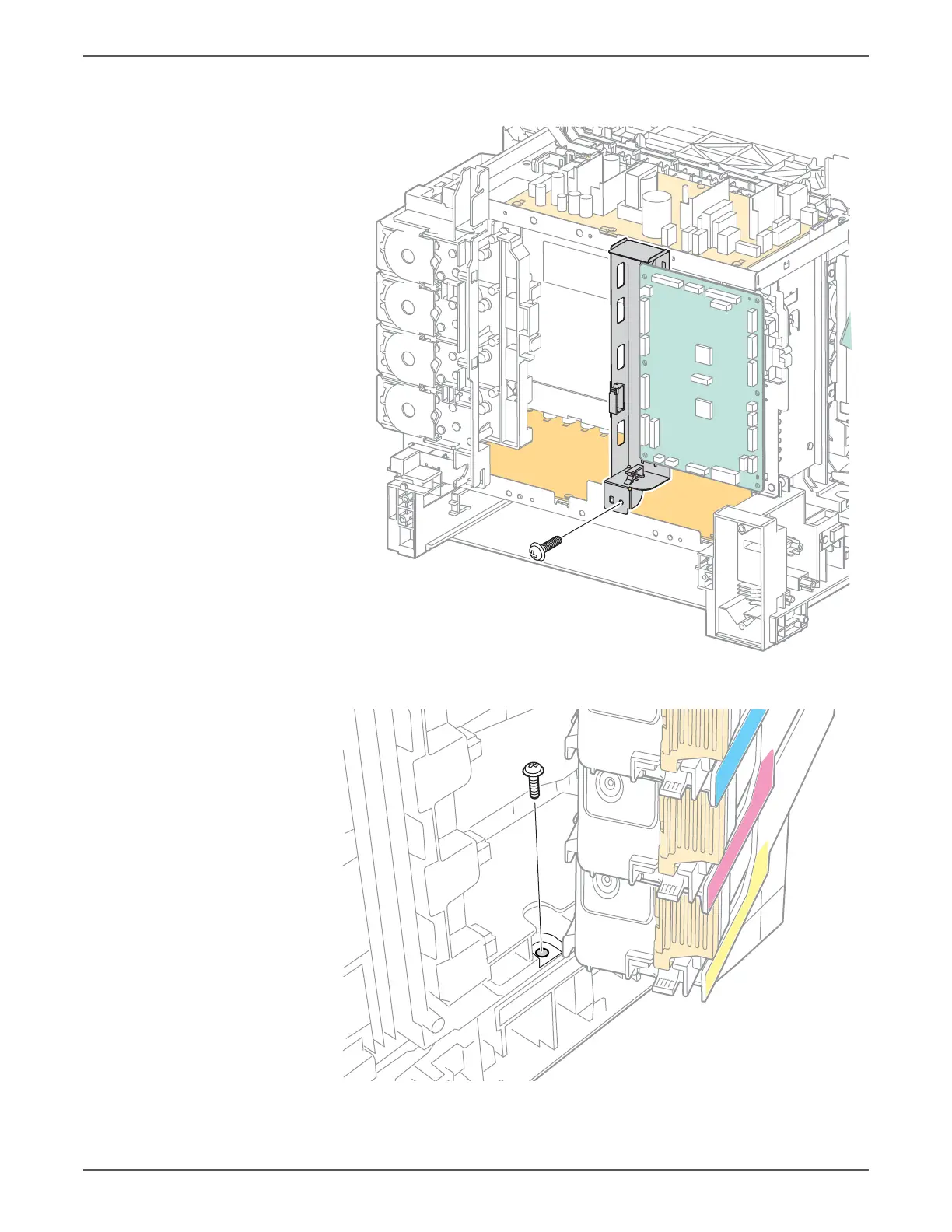

22. Remove the lower screw (silver, 6mm) that secures the Right MCU Board
bracket to the chassis.
23. Open the Toner Cartridge Holders and Remove the screw (silver, tap, 8mm).
s6500-495
s6500-234
