Service Parts Disassembly

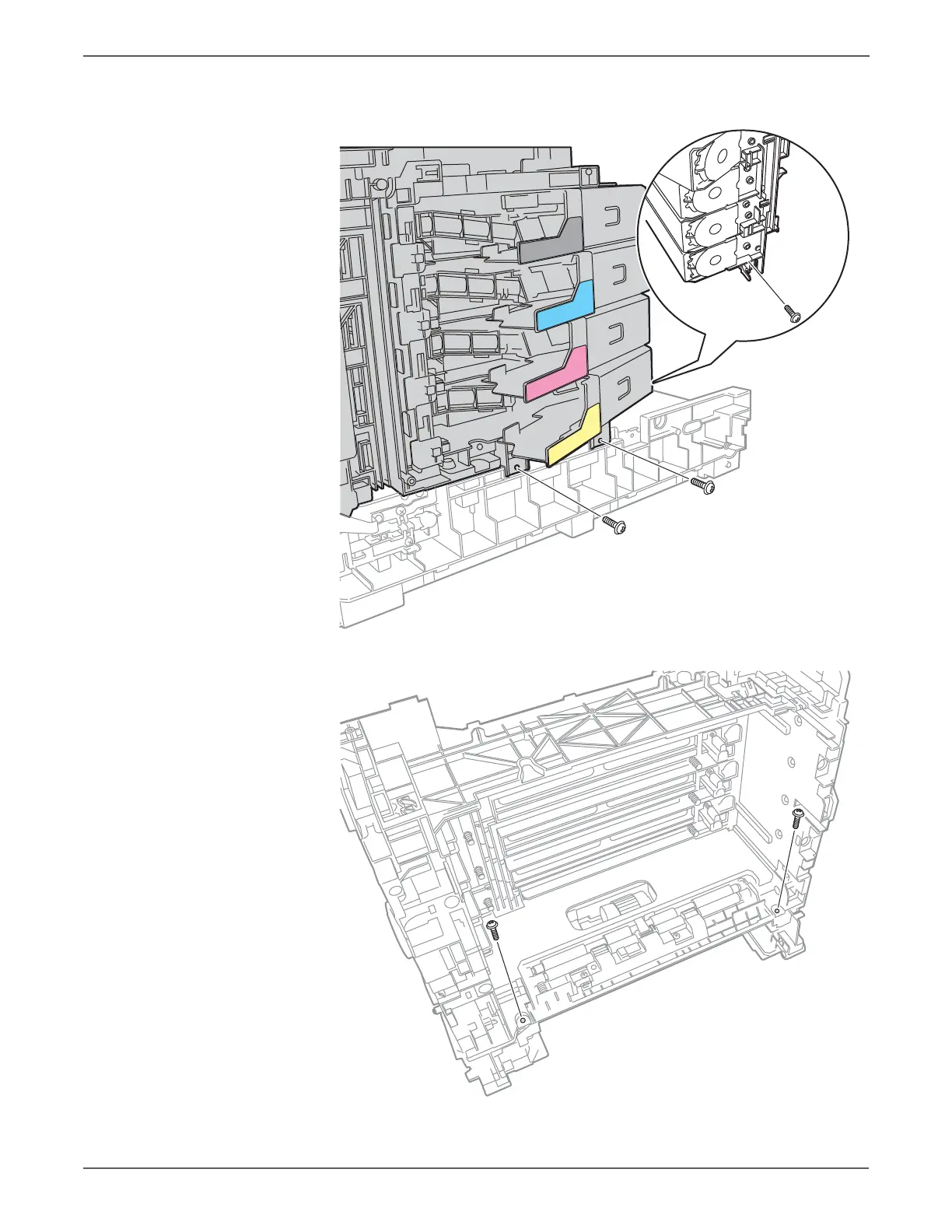

24. Remove two screws (silver, tap, 8mm) that secure the bottom and one screw
(silver, M4, 6mm) that secures the rear of the Dispense Assembly.
25. Remove two screws (silver, tap, 8mm) that secure the front of the frame.
s6500-235
s6500-236
