8-122 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

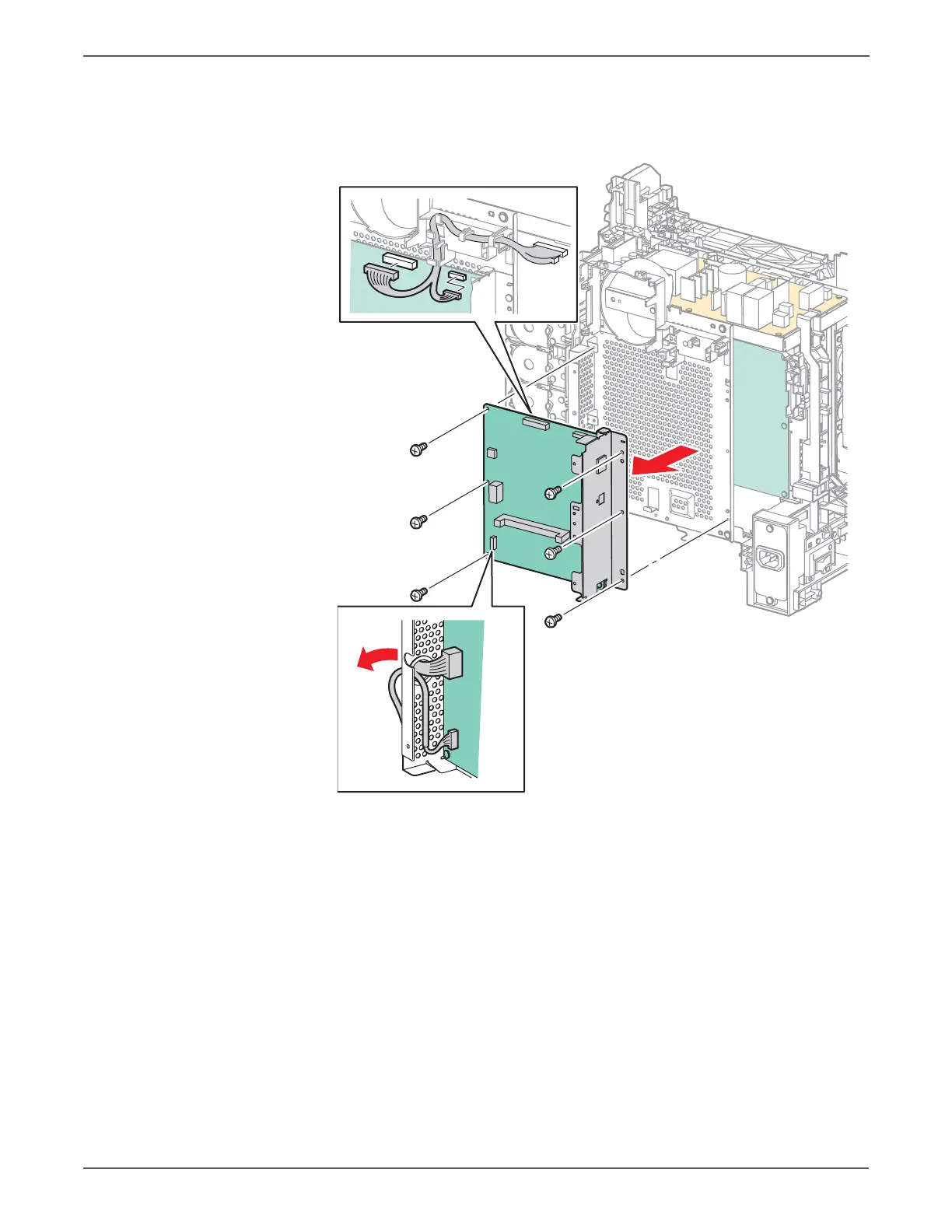

12. Disconnect all connections to the IP Board and release the harnesses from the
IP Board cage.
13. Remove six screws (silver, metal, 6mm) that secure the IP Board and rear
panel to the chassis.
s6500-306
