Xerox Phaser 6500 Service Manual

2-28 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
• Registration Clutch
The Registration (Drive) Clutch transmits drive energy from the Main Drive to
the rubber registration roller, and transports paper from the Tray and Manual
Feed slot toward the Imaging Unit. The registration clutch must engage and
start the paper moving so that it reaches the Imaging Unit at the correct time
to pick up the toner image.

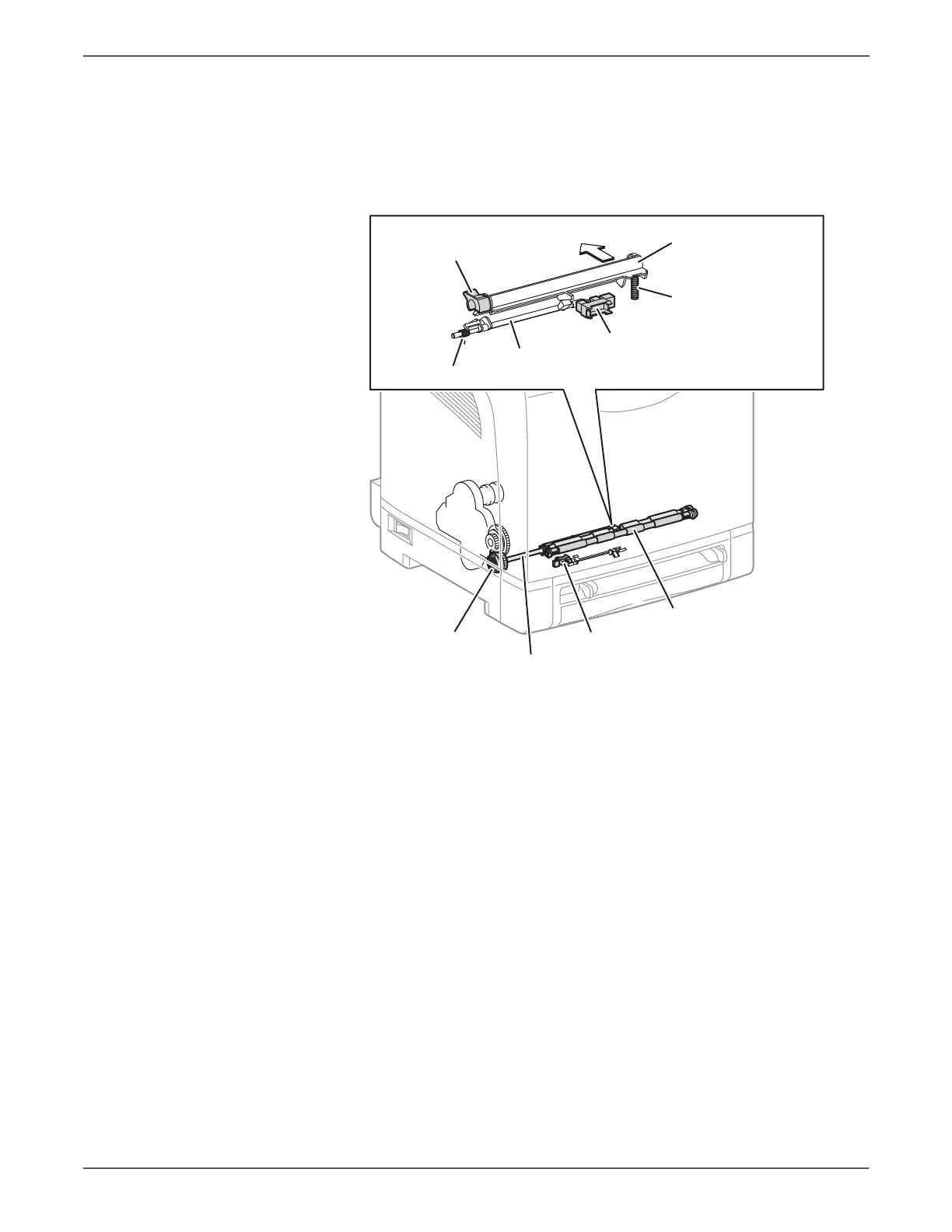

s6500-044
Registration Sensor
Rubber Registration Roller
Metal Registration Roller
Registration Clutch
Registration
Output Spring
Registration Actuator Spring
Registration
Out Actuator
Registration In Actuator
Registration Roller Actuator
Registration Sensor
Rear View
Front
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
