Xerox VersaLink B7025 Service Manual

April 2017
5-119
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.50
Parts Lists
Launch Issue

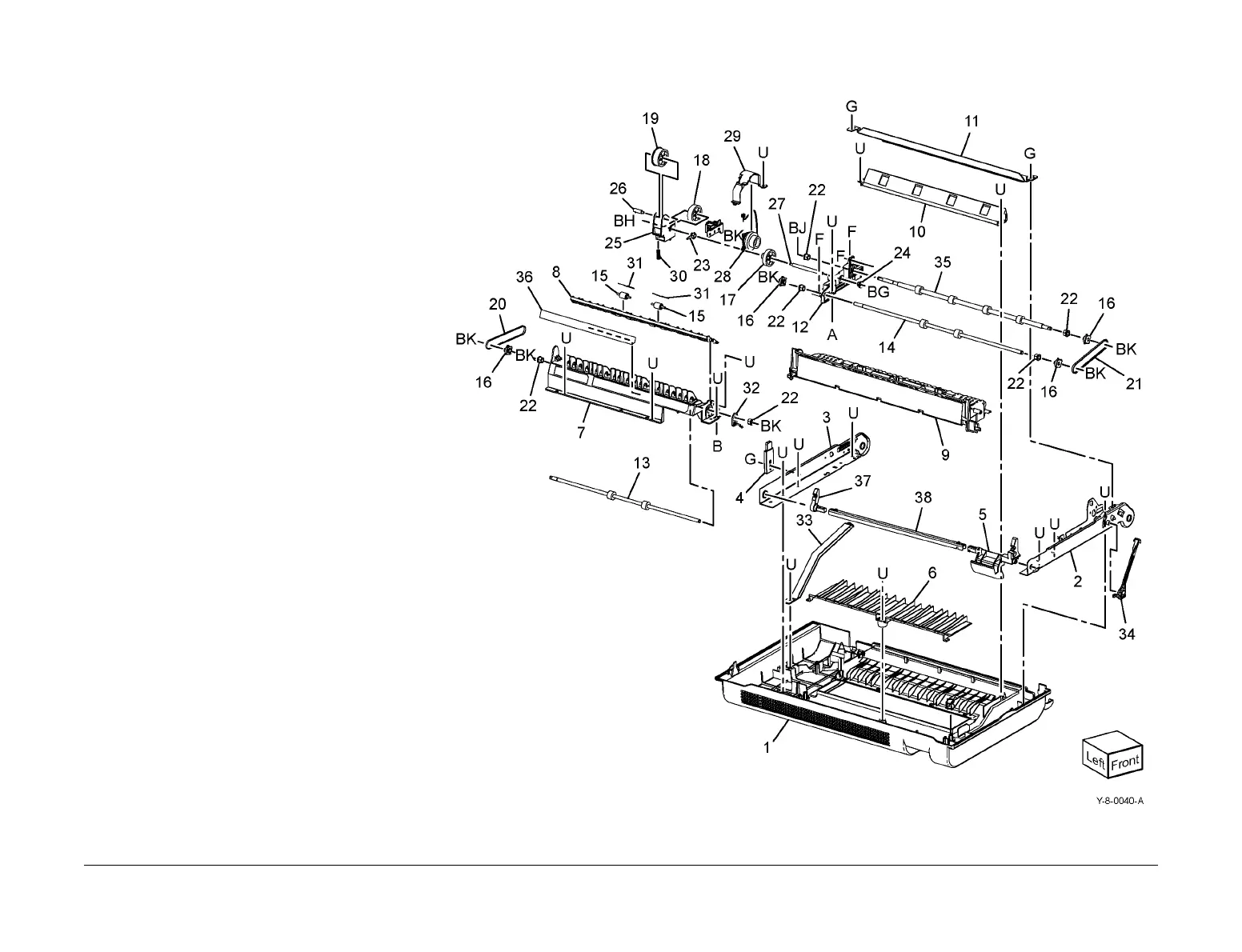

PL 80.50 Duplex LH Cover
Component
Item Part Description
1 – Left cover (Not Spared)
2 – Front frame (Not Spared)
3 – Rear frame (Not Spared)
4 – Fusing plate (Not Spared)
5 011E28351 Lever latch front mat
6 – Duplex cover chute (Not Spared)
7 – LH cover duplex chute (Not
Spared)
8 – LH low chute (Not Spared)
9 – TA pinch chute assembly (Not
Spared)
10 – Duplex out chute (Not Spared)
11 – Plate tie TA (Not Spared)
12 – Gear bracket (Not Spared)
13 – Duplex 1 roll (Not Spared)
14 – Duplex 2 roll (Not Spared)
15 – Duplex nip roll (Not Spared)
16 – Pulley (Not Spared)
17 – Gear (Not Spared)
18 – Gear (Not Spared)
19 – Swing gear (Not Spared)
20 – Belt (Not Spared)
21 – Belt (Not Spared)
22 – Bearing (Not Spared)
23 – Bearing (Not Spared)
24 – Bearing (Not Spared)
25 – Swing bracket (Not Spared)
26 – Swing shaft (Not Spared)
27 – Clutch shaft (Not Spared)
28 121K56560 Duplex clutch (CL77-003)
29 – Clutch cover (Not Spared)
30 – Spring (Not Spared)
31 – Pinch spring (Not Spared)
32 – Ground plate (Not Spared)
33 869E14461 LH rear support
34 868E48840 LH front support
35 – Duplex 3 roll (Not Spared)
36 – Label (Not Spared)
37 011E29140 Rear latch lever
38 – Plate latch (Not Spared)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
