Xerox VersaLink B7025 Service Manual

April 2017
4-6
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 1.1, REP 1.2
Launch Issue
Repairs and Adjustments

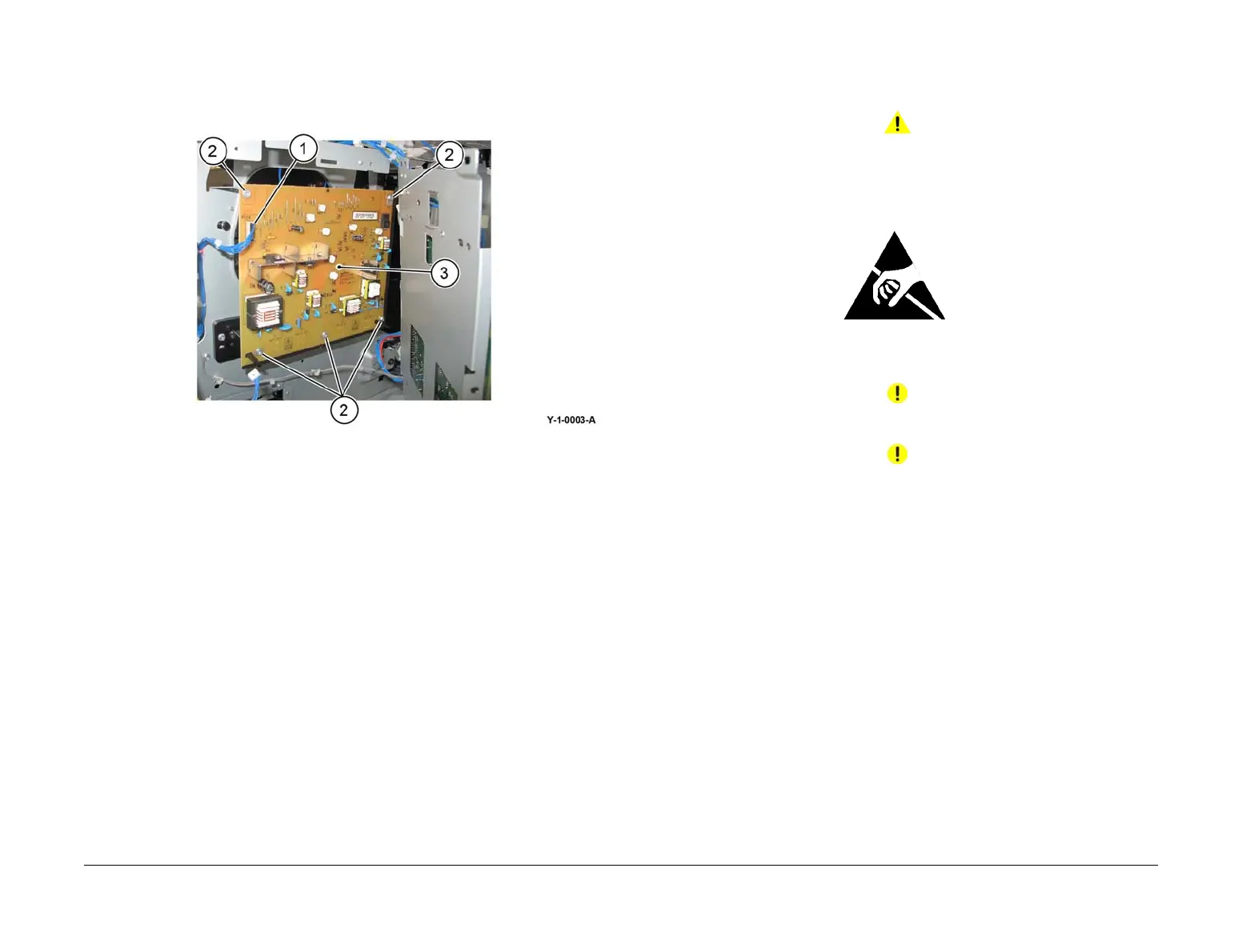

7. Remove the HVPS, Figure 4:
a. Disconnect the connector (1).
b. Remove five screws (2).
c. Remove the HVPS (3).
Figure 4 HVPS Removal
Replacement
The replacement is the reverse of the removal procedure.
REP 1.2 Drive PWB
Parts List on PL 1.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
CAUTION
When installing a new drive PWB and a new ESS PWB at the same time, first install the new
ESS PWB, then switch on the machine, GP 10. If the new ESS PWB installation is successful,
switch off the machine, then install the new drive PWB.
1. If possible, record the current software level by either:
• Printing the configuration report, GP 14.
• From the user interface Home screen, touch Device, then About. Scroll down to view
the Software Version.
2. Remove the upper rear cover, REP 28.5.
3. Remove the lower rear cover, REP 28.6.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
