Xerox VersaLink B7025 Service Manual

April 2017
8-95
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Fax
Overview
Super G3 analog fax capability is provided as an optional 1 or 3-line fax module or as a soft-
ware-enabled Digital Fax over IP (VoIP Fax)
The 1 or 3-line fax module contains the fax modem(s) and fax speaker and is installed at the
rear of the printer adjacent to the ESS PWB, Figure 1. The line 1 fax PWB, PL 20.05 Item 10, is
fitted with a single fax modem. For the 3-line fax option, the line 2 and 3 fax PWBs, PL 20.05
Item 15 are connected to the line 1 fax PWB via the riser PWB, PL 20.05 Item 16. The line 1
fax PWB is connected directly to the ESS PWB and is controlled by software running on the
ESS PWB. Refer to BSD 20.1 Fax. The fax module also features a port to accommodate an
optional telephone handset.
Fax over IP (VoIP Fax) is a purchasable option, installed via the USB port, which allows the
printer to send and receive faxes over an IP based network using session Initiation Protocol
(SIP) and Voice over IP (VoIP) protocols and services. The Fax over IP enabled printer can
send and receive faxes from a variety of analog and digital devices.
Fax functionality is selected and controlled via the UI.

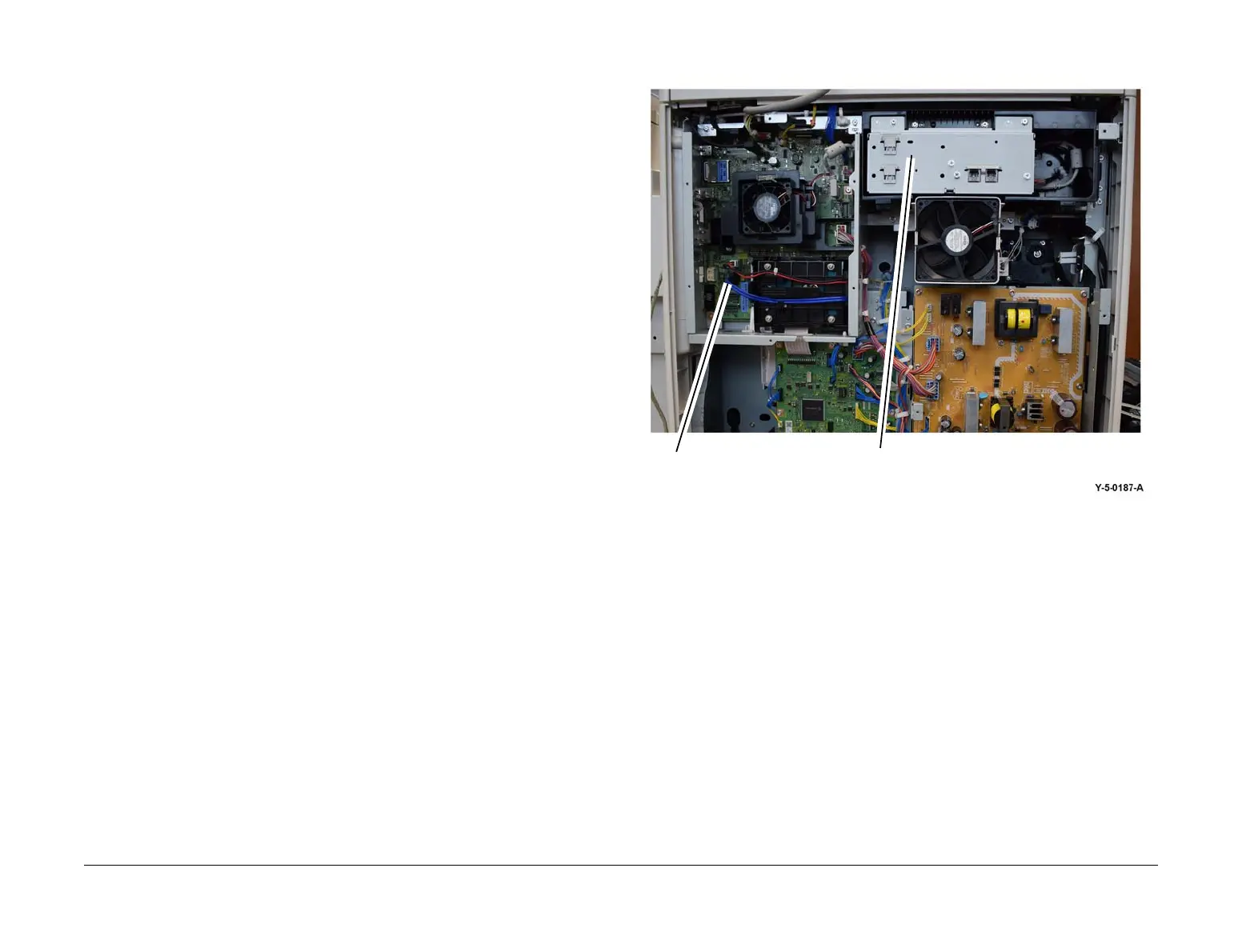

Figure 1 Fax module
Fax module (1-line module shown)
ESS PWB

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
