Xerox VersaLink B7025 Service Manual

April 2017
4-213
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.36, REP 80.37
Repairs and Adjustments
Launch Issue

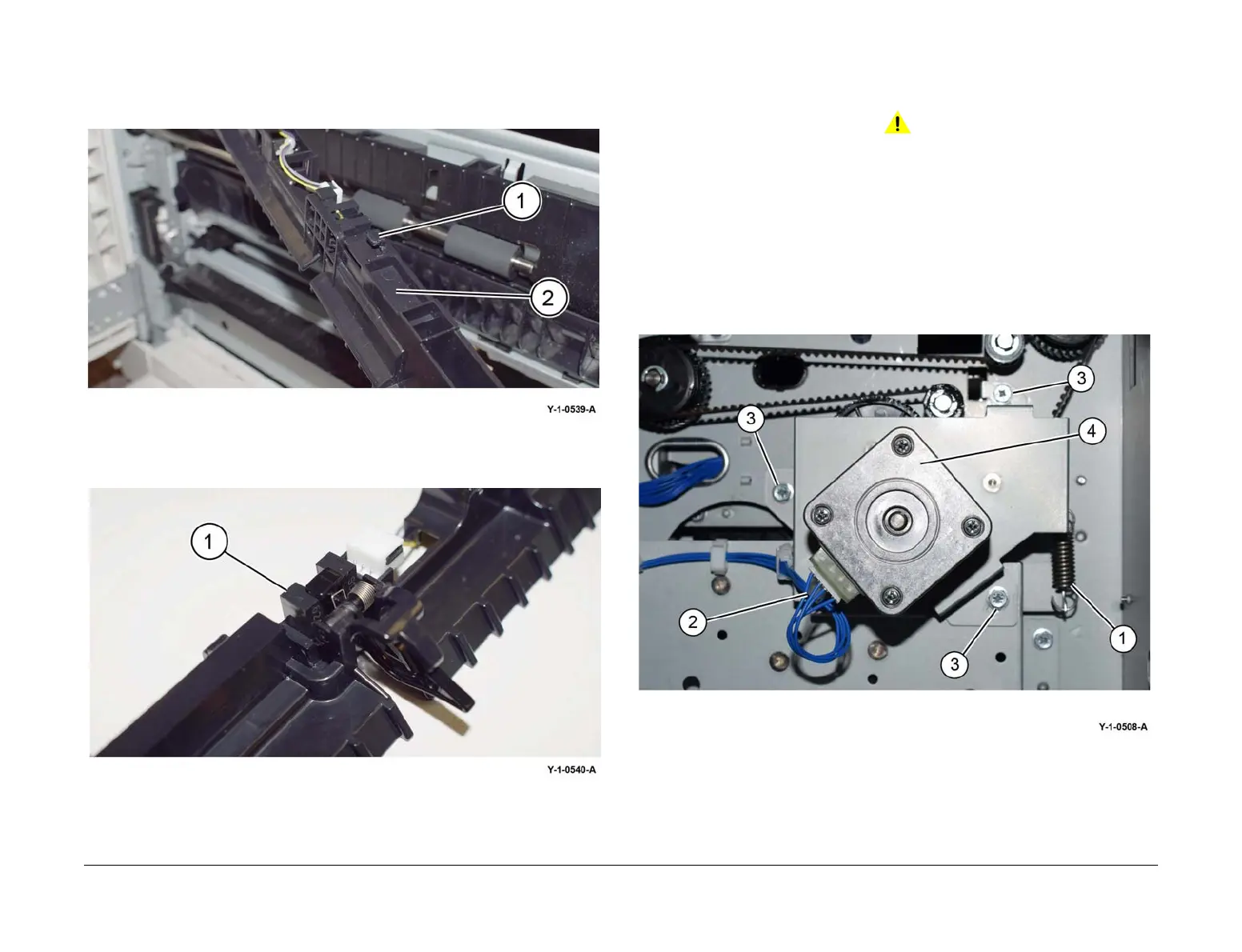

3. Remove the takeaway chute, Figure 2:
a. Move the takeaway chute to the rear to release the hook (1).
b. Disconnect the connector at the rear of the takeaway chute.
c. Remove the takeaway chute (2).
Figure 2 Takeaway chute removal
4. Remove the tray 2 feed out sensor (1), Figure 3.
Figure 3 Sensor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.37 Takeaway Motor 2 Assembly (TTM)
Parts List on PL 70.85
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the TTM rear cover, PL 70.95 Item 8.
2. Remove the takeaway motor 2 assembly, Figure 1:
a. Unhook the spring (1).
b. Disconnect the PJ and release the harness (2).
c. Remove three screws (3).
d. Remove the takeaway motor 2 assembly (4).
Figure 1 Motor assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the drive belt is correctly installed, refer to REP 80.28.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
