Xerox VersaLink B7025 Service Manual

April 2017
4-136
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 28.2, REP 28.3
Launch Issue
Repairs and Adjustments
7. Remove the inner cover, Figure 2:
a. Remove four screws (1).
b. Remove the inner cover (2).
NOTE: It will be necessary to carefully bend the top edge of the right cover to
release a tab on the top right of the inner cover.

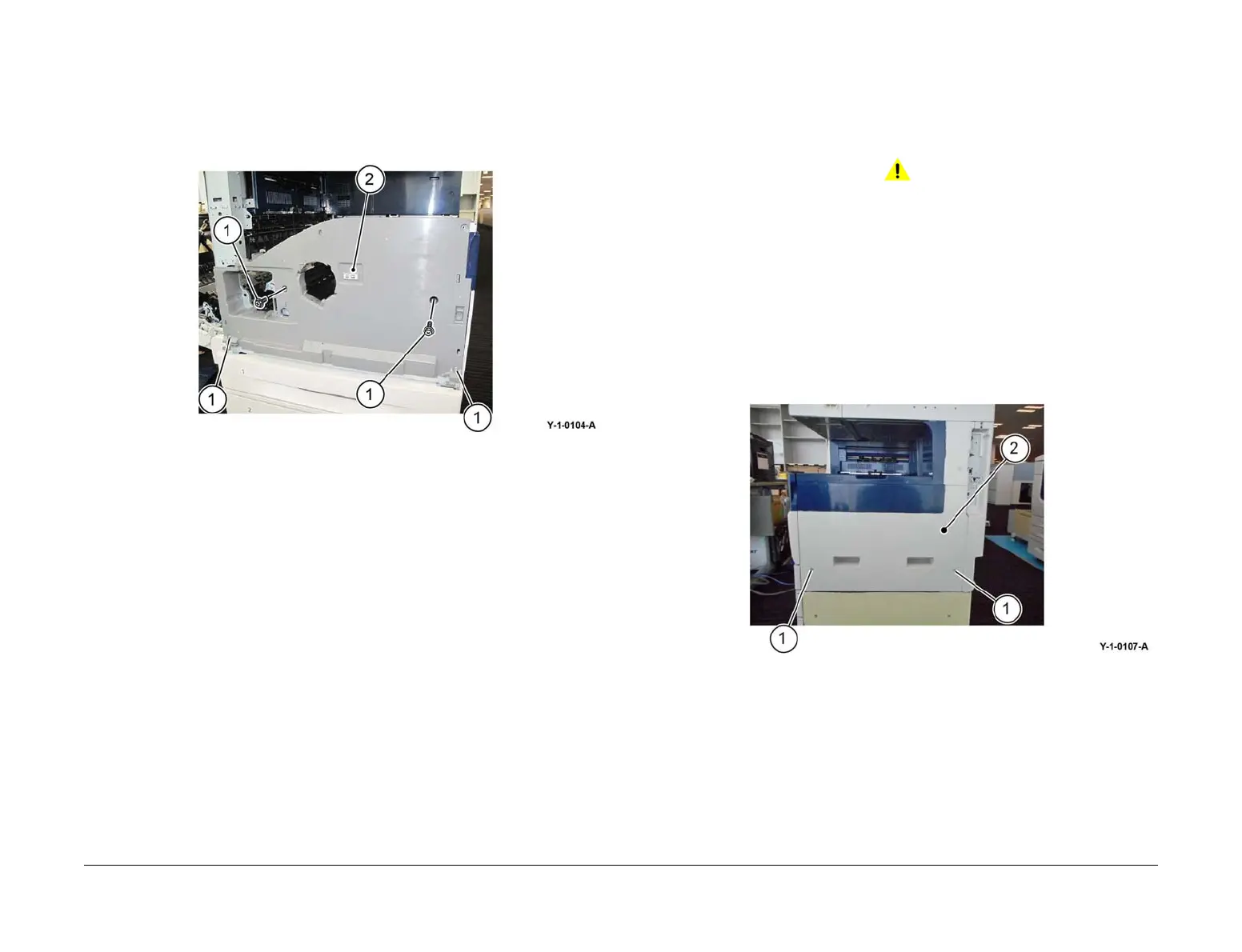

Figure 2 Inner cover removal
Replacement
The replacement is the reverse of the removal procedure.
REP 28.3 Right Cover
Parts List on PL 28.05
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. If a finisher LX is installed, undock the finisher LX, REP 13.5.
2. If a finisher LX is installed, remove the vertical infill covers, PL 13.40.
3. Open the front cover.
4. Pull out tray 1.
5. Remove the right cover, Figure 1:
a. Remove two screws (1).
b. Remove the right cover (2).
Figure 1 Right cover removal
Replacement
The replacement is the reverse of the removal procedure.
