Xerox VersaLink B7025 Service Manual

April 2017
5-5
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 1.15
Parts Lists
Launch Issue

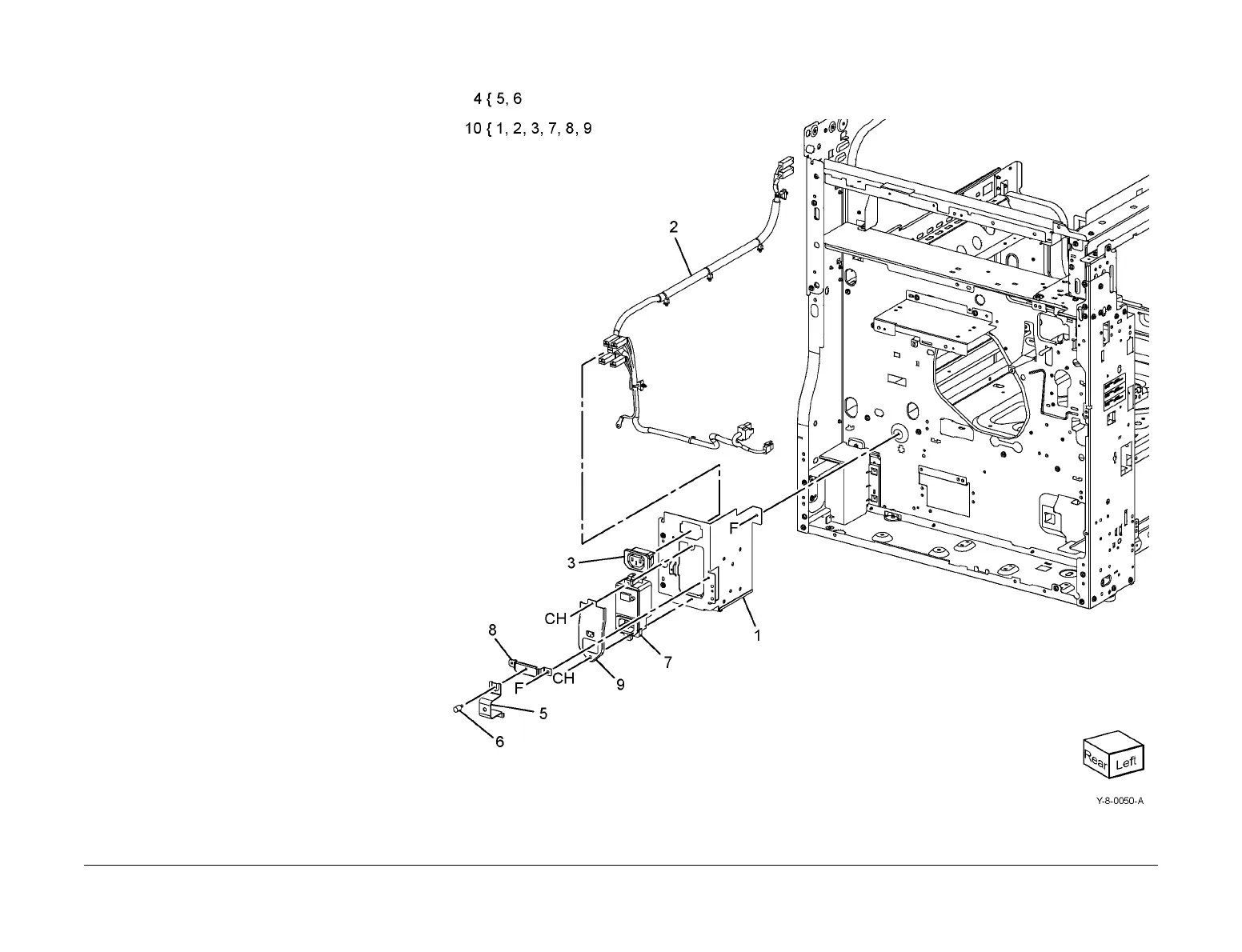

PL 1.15 GFI Breaker
Item Part Description
1 – Support bracket (P/O PL 1.15 Item
10)
2 – AC main harness assembly (P/O
PL 1.15 Item 10)
3 – Finisher outlet (P/O PL 1.15 Item
10)
4 – AC bracket assembly (Not Spared)
5 – AC stopper bracket (P/O PL 1.15
Item 4)
6 – Screw (P/O PL 1.15 Item 4)
7 – Inlet GFI breaker (P/O PL 1.15 Item
10)
8 – Connect bracket (P/O PL 1.15 Item
10)
9 – Inlet bracket (P/O PL 1.15 Item 10)
10 101K72840 AC chassis assembly
11 917W03102 Power cord 220V
– 917W03005 Power cord 110V

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
