Xerox VersaLink B7025 Service Manual

April 2017
5-54
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.45
Launch Issue
Parts Lists

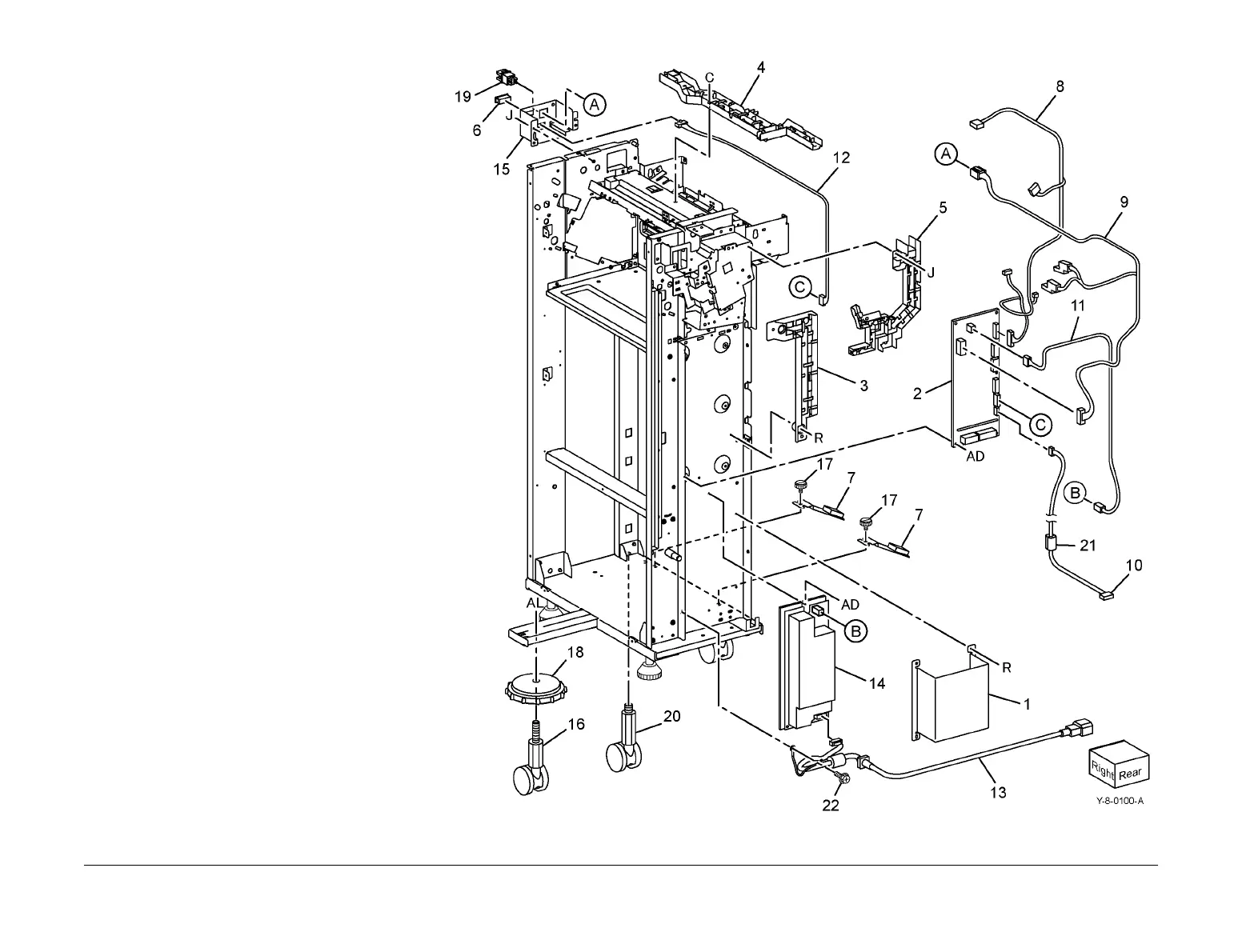

PL 13.45 Office Finisher LX Folder
Electrical
Item Part Description
1 – LVPS cover (Not Spared)
2 960K89730 Finisher PWB (REP 13.23)
3 – Harness guide (Not Spared)
4 – Harness guide (Not Spared)
5 – Harness guide (Not Spared)
6 – Magnet (Not Spared)
7 – Gasket plate assembly (Not
Spared)
8 – Wire harness (Not Spared)
9 – Wire harness (Not Spared)
10 962K60482 Wire harness (IF)
11 962K60493 Wire harness (LVPS)
12 962K60593 Wire harness (IF)
13 962K60511 Power cable
14 105E22610 Finisher LVPS (REP 13.24)
15 – Bracket (Not Spared)
16 – Caster (Not Spared)
17 – Thumb Screw (Not Spared)
18 – Knob (Not Spared)
19 110E97990 Finisher front door interlock switch
(S12-302)
20 – Castor (Not Spared)
21 – Core (Not Spared)
22 – Screw (Not Spared)
