Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQS 2, IQS 3
Launch Issue
Imaqe Quality
IQS 2 Background
Documents
Test patterns: 82E2000 (A3 and 11x17) 82E2010 (A4) 82E2020 (8.5x11) and visual scale,
82P448 for reference.
Specification
Copy
Compare the copies of the test pattern, Figure 1, made from the document glass, with the
visual scale, 82P448. The background of the copies must be lighter than the reference area B.
Print
Compare a print of the internal test pattern 128 with the visual scale, 82P448. The background
of the print must be lighter than the reference area B.
Corrective Action
If the background specification is not met, perform the IQ4 Background RAP.

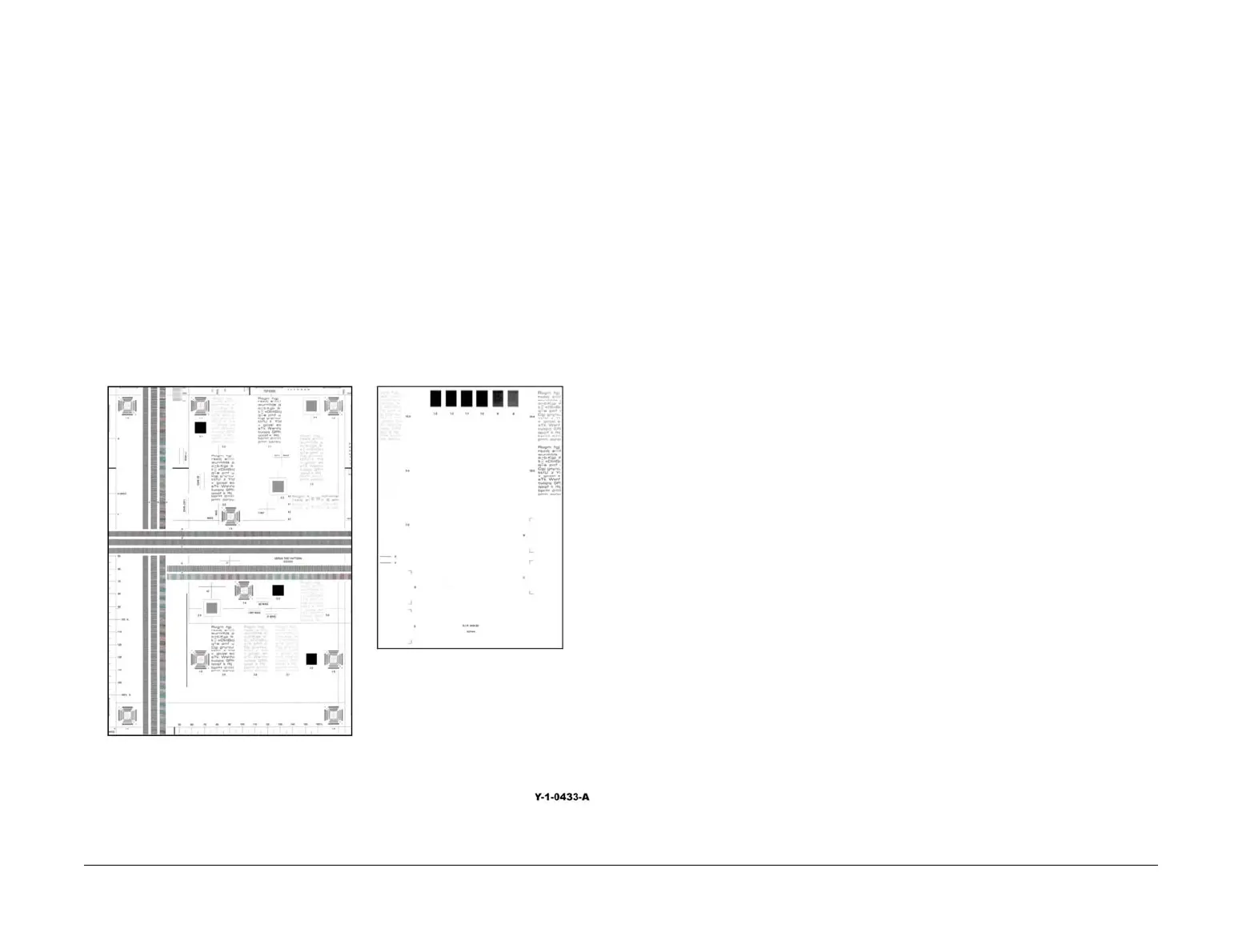

Figure 1 Test pattern
IQS 3 Fusing
Documents
Test Patterns: 82E2000 (A3 and 11x17) 82E2010 (A4) 82E2020 (8.5x11).
Procedure
Make 5 copies of the test pattern, Figure 1. Check the fusing by folding one of the copies
through the centre of a solid area. Use a finger to apply medium pressure along the fold to
crease the paper. Unfold the copy. Use a finger to lightly rub the area of the fold and adjacent
areas.
Specification
Any break should measure less than 1mm (1/32 inch) across the line of a fold. Any area
rubbed with a cloth should not smudge or the image lift off the surface of the paper. When
checking the fusing on heavyweight paper (200gsm), rub the image with a finger. Images fused
on the smooth side of the paper have a greater resistance to rubbing than images fused on the
rough side of the paper. Do not attempt to fold heavyweight paper, as this breaks the fibres.
Corrective Action
If the fusing specification is not met, perform the IQ21 Unfused Copy/Toner Offset RAP.
82E2000
SIR 494.00
82P448
