Xerox VersaLink B7025 Service Manual

April 2017
4-197
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.18, REP 80.19
Repairs and Adjustments
Launch Issue
Replacement
1. The replacement is the reverse of the removal procedure.
2. Align the tab on the LH cover front frame with the cutout on the bypass tray front frame
assembly then move the LH cover backwards, Figure 5.

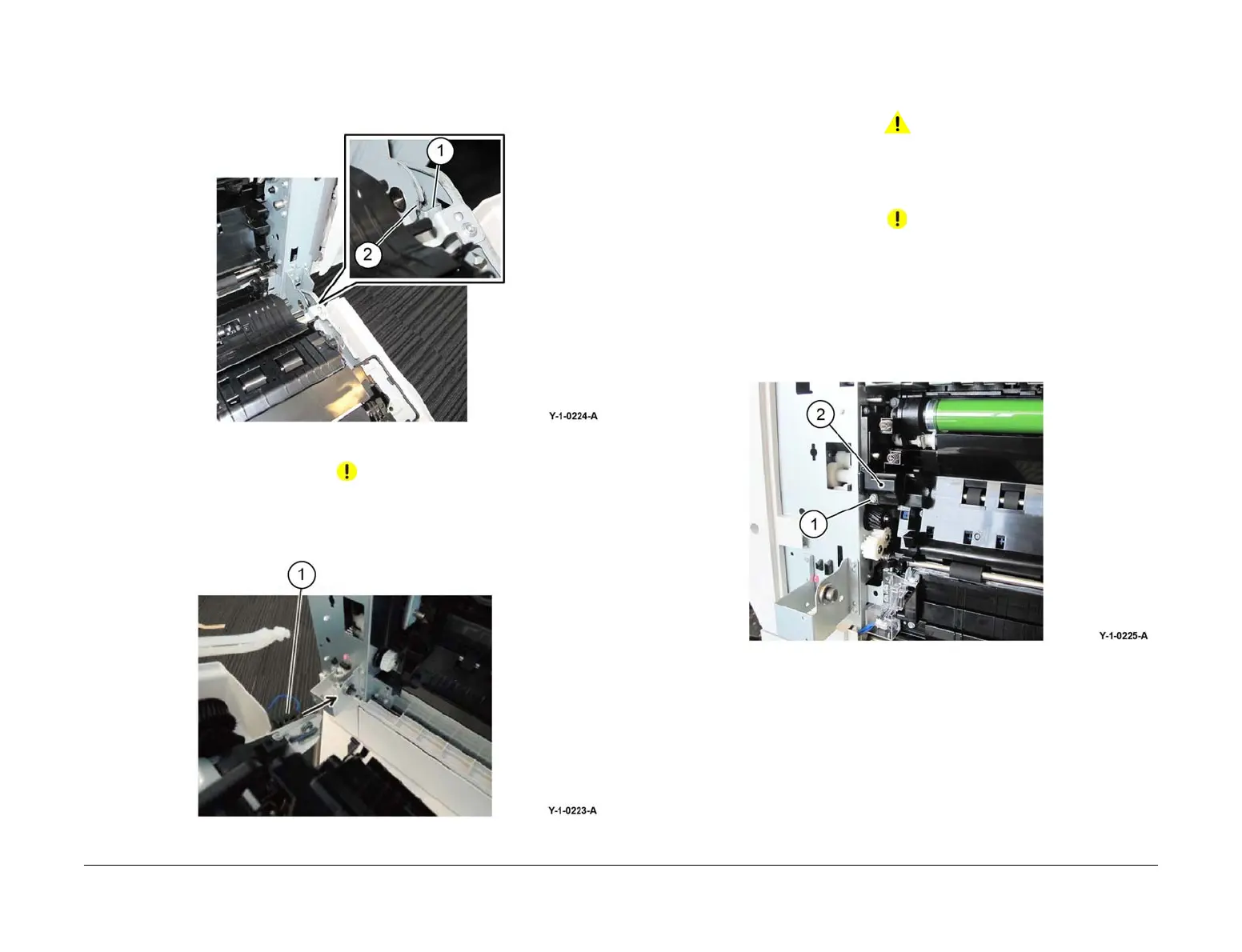

Figure 5 Alignment
CAUTION
When reinstalled the LH cover, do not let the rear harness guide (1) contact the bracket. Refer
to Figure 6.
Figure 6 Harness guide
REP 80.19 Registration Transport Assembly
Parts List on PL 80.55
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
If the L/H cover is removed for a long period of time, remove the drum cartridge, REP 90.4.
1. Remove the bypass tray, REP 70.2.
2. Remove the L/H cover, REP 80.18.
3. Remove the connector cover, Figure 1:
a. Remove the screw (1).
b. Remove the connector cover (2).
Figure 1 Connector cover removal

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
