Xerox VersaLink B7025 Service Manual

April 2017
4-202
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.24
Launch Issue
Repairs and Adjustments
REP 80.24 HCF Retard Lever Spring
Parts List on PL 80.62
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HCF feeder, REP 80.21.
2. Place the feeder on a flat surface. Release the green lever to open the upper feeder
assembly.
3. Remove the retard lever spring, Figure 1:
a. Remove the lower chute (1).
b. Remove the plastic cover (2).
c. Remove the retard roll (3).
d. Remove the E-rings on the lever and spring.
e. Remove the lever (4).
NOTE: Note how the spring extension fits into the lever.
f. Remove the retard lever spring (5).

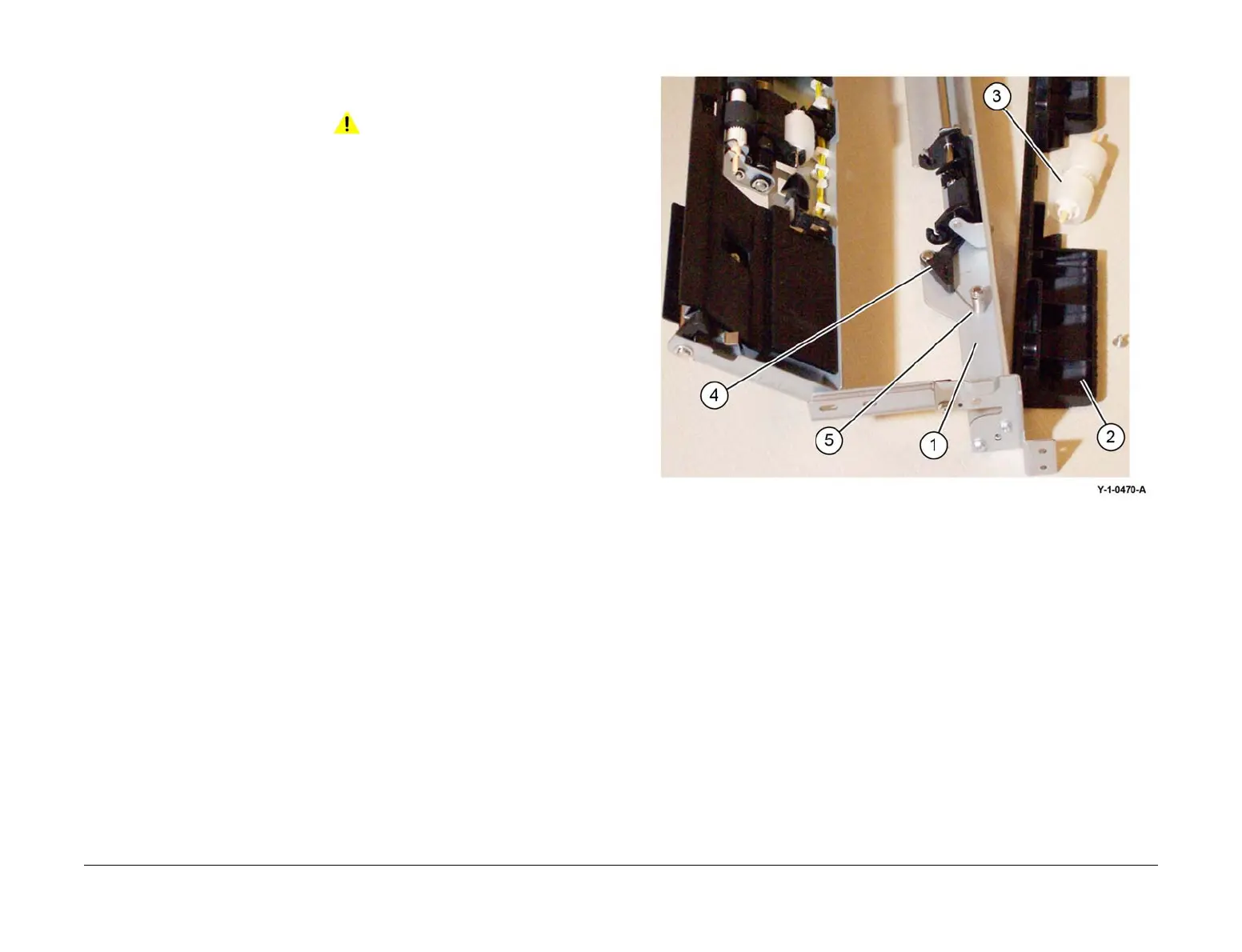

Figure 1 Retard lever spring
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the plastic pads on the lower chute fit in the track before pushing it in.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
