Xerox VersaLink B7025 Service Manual

April 2017
8-11
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Drive PWB
The drive PWB controls the print engine, providing power and drive signals to most of the
motors, sensors, clutches and solenoids, plus assemblies including the HVPS, fuser, drum car
-
tridge and toner CRUM. Refer to Figure 3.
Refer to:
• BSD 3.1 PWB Communications (ESS PWB to Drive PWB)
• BSD 3.2 PWB Communications (ESS PWB/Drive PWB to STM)
• BSD 3.3 PWB Communications (ESS PWB/Drive PWB to 1TM/3TM)TTM
• BSD 3.6 PWB Communications (ESS PWB/Drive PWB to Finisher)
• BSD 4.1 Main Drive Control
• BSD 4.2 Drum Drive Control

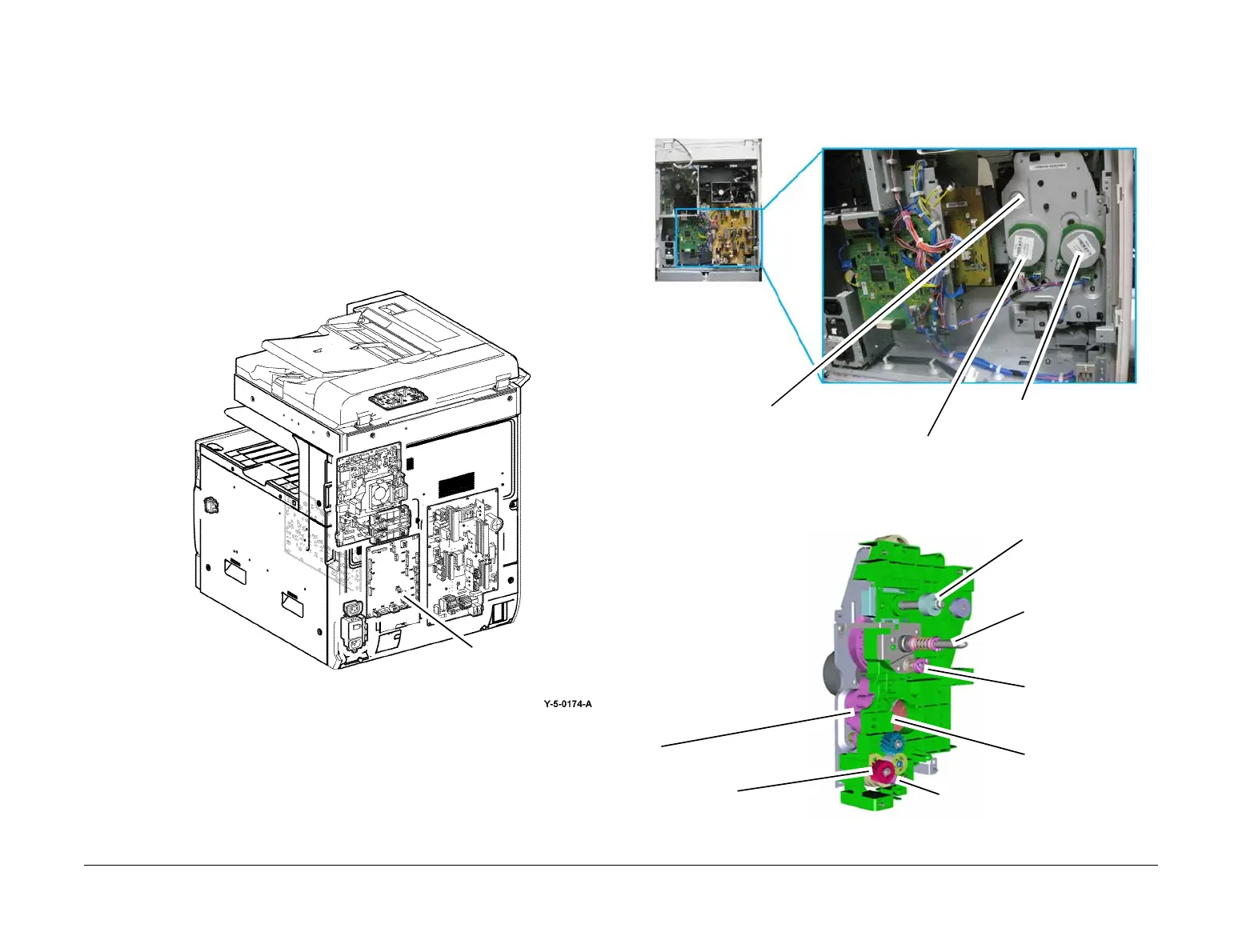

Figure 3 Drive PWB
Main Drives and Cooling
Main Drives
The main drive module PL 40.05 Item 1, is located to the rear of the machine behind the LVPS,
PL 1.10 Item 8. Refer to Figure 1.
Figure 1 Main drive assembly
The main drive couplings are shown in Figure 2.
Figure 2 Main drives couplings side
Drive PWB
Drive assembly
Drum motor
Main motor
Fuser drive
Drum drive
Developer drive
Bypass tray drive
Duplex drive
Registration drive
Takeaway drive

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
