Xerox VersaLink B7025 Service Manual

April 2017
4-207
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.32, REP 80.33
Repairs and Adjustments
Launch Issue
3. Release the springs (1), then remove the nip rolls (2), Figure 2.

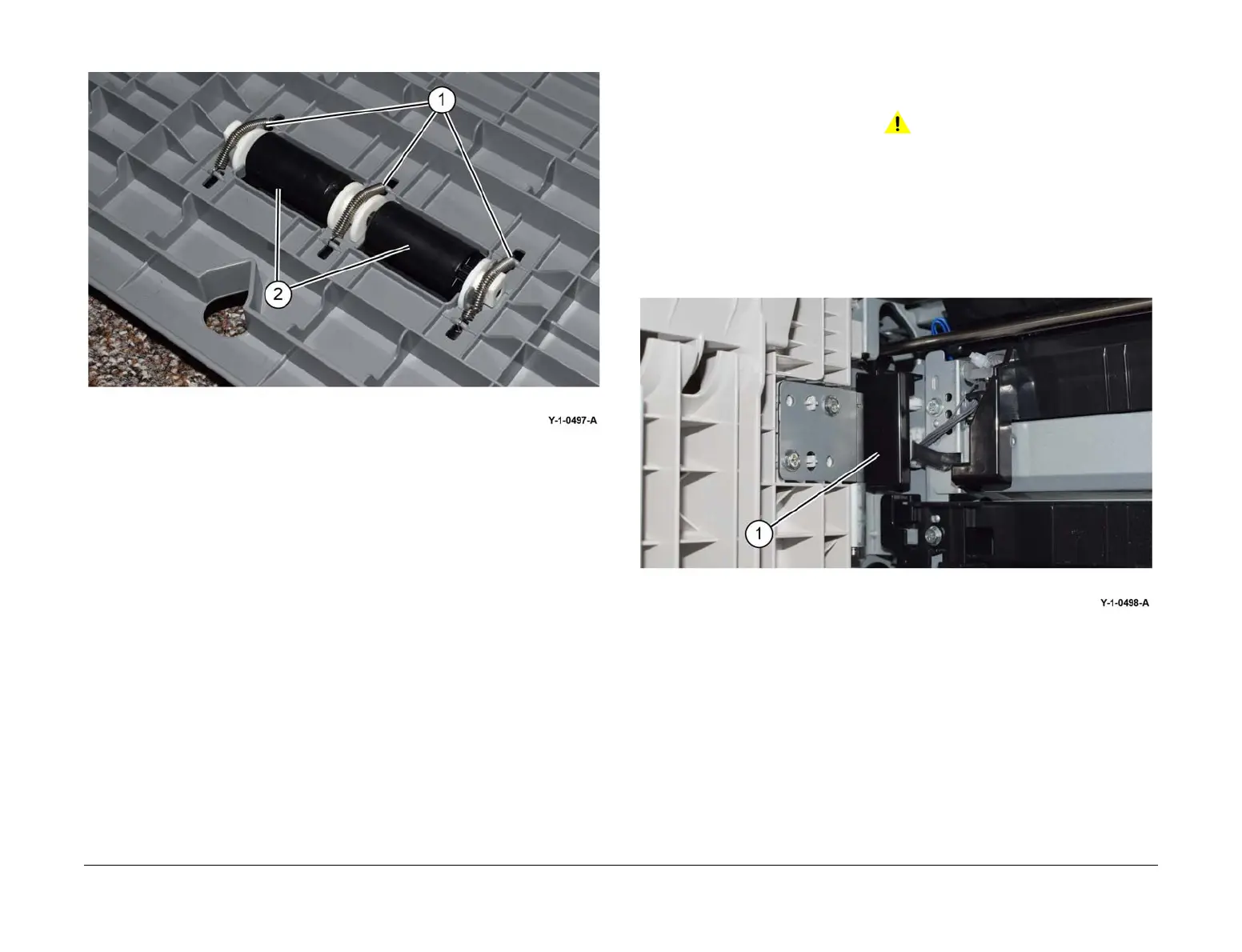

Figure 2 Nip rolls removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.33 Tray 2 Feeder Assembly (TTM)
Parts List on PL 80.65
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Pull out tray 2. Remove the paper.
2. Remove tray 2.
3. Open the left cover assembly, PL 70.70 Item 7.
4. Remove the ESD cover (1), Figure 1:
Figure 1 ESD cover removal
