Xerox VersaLink B7025 Service Manual

April 2017
5-59
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.70
Parts Lists
Launch Issue

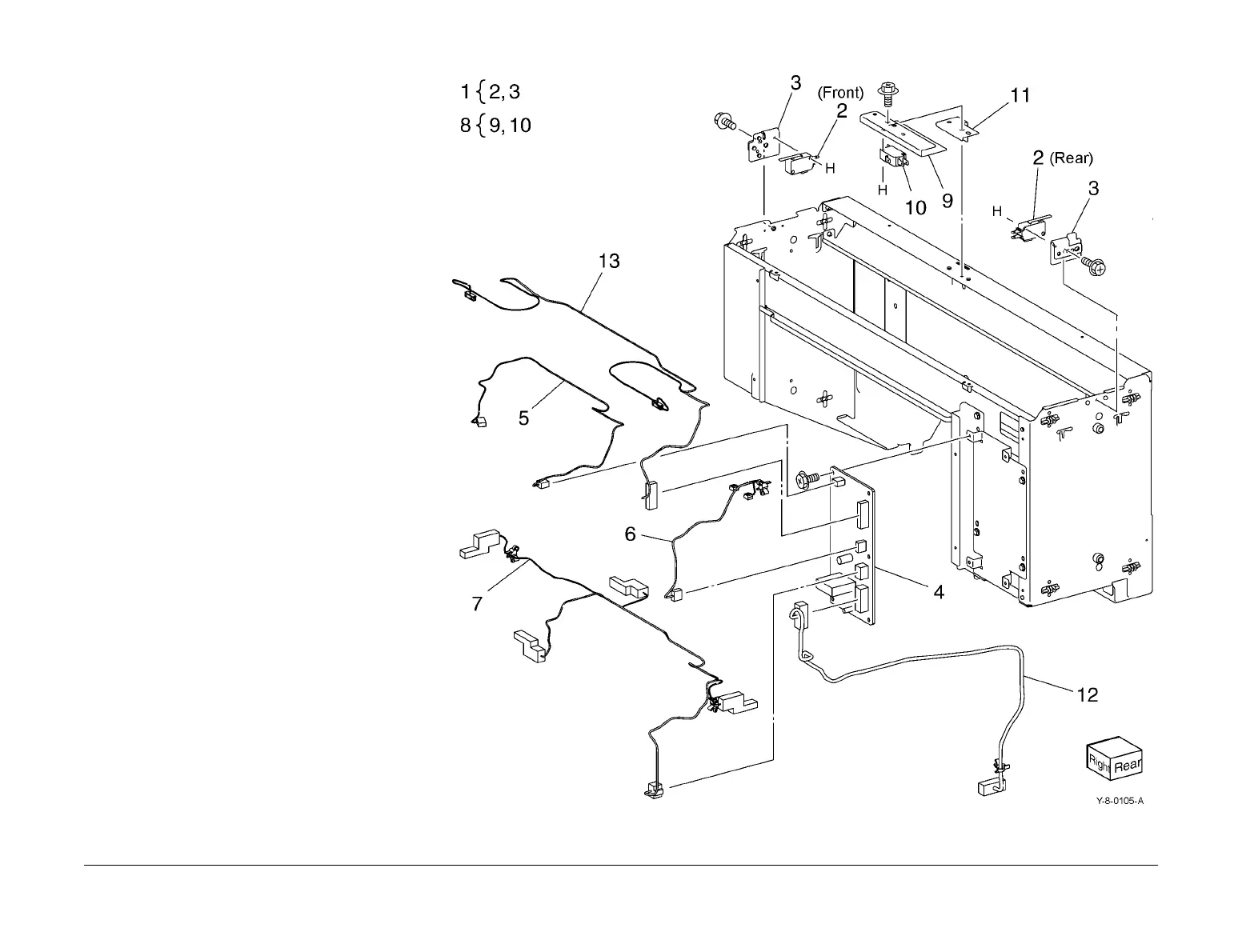

PL 13.70 Office Finisher LX Booklet
Electrical
Item Part Description
1 068K58351 Stapler rear safety switch/stapler
front safety switch
2 – Booklet stapler safety switch
assembly (P/O PL 13.70 Item 1)
3 – Bracket (P/O PL 13.70 Item 1)
4 960K32543 Booklet PWB (REP 13.30)
5 – Wire harness (Not Spared)
6 – Wire harness (Not Spared)
7 – Wire harness (Not Spared)
8 068K58361 Booklet stapler cover switch
assembly
9 – Bracket (P/O PL 13.70 Item 8)
10 – Booklet cover open switch (S13-
300) (P/O PL 13.70 Item 8)
11 – Plate (Not Spared)
12 – Wire harness (Not Spared)
13 – Wire harness (Not Spared)
