Xerox VersaLink B7025 Service Manual

April 2017
5-46
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.20
Launch Issue
Parts Lists

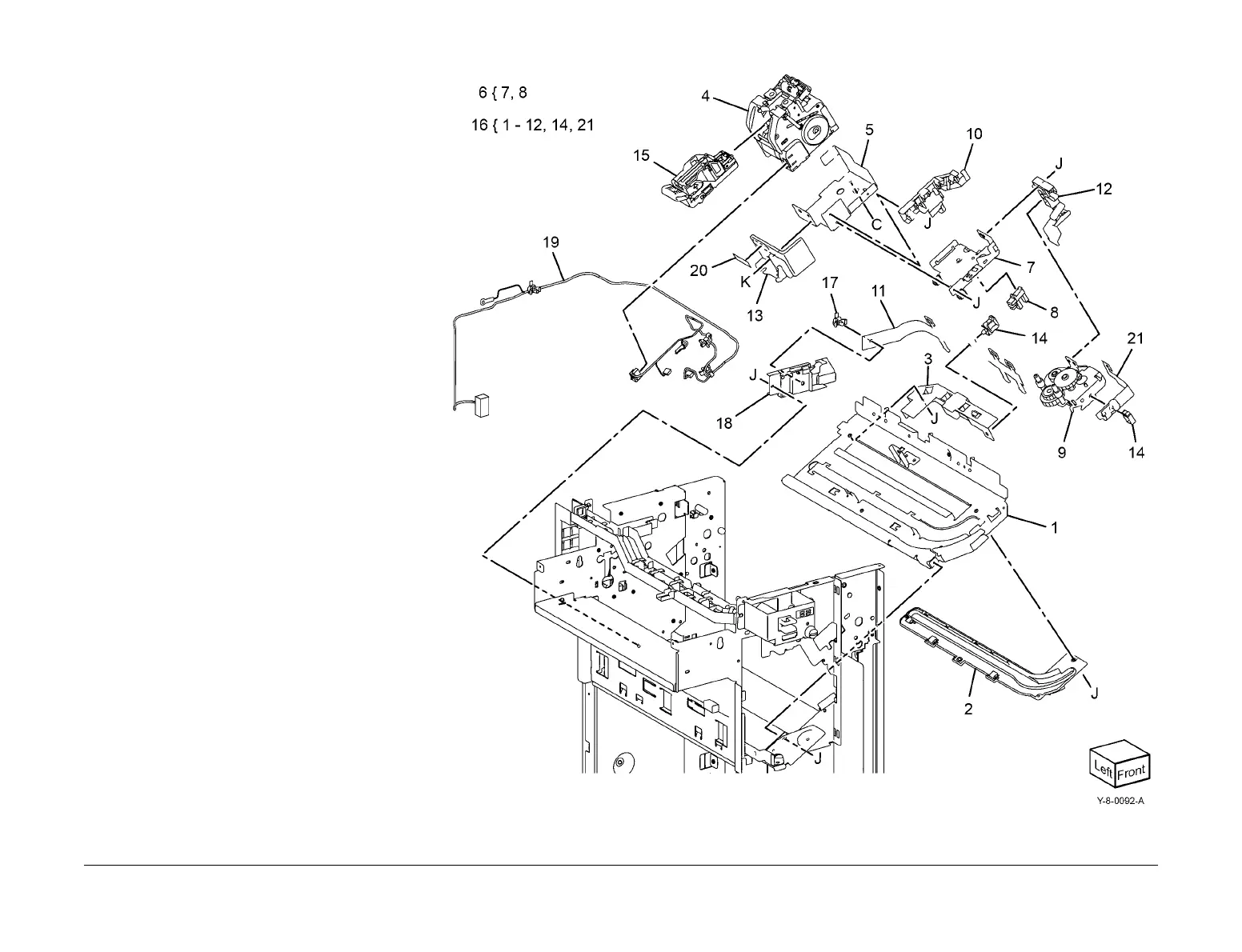

PL 13.20 Office Finisher LX Stapler
Item Part Description
1 – Base frame (P/O PL 13.20 Item 16)
2 – Rail (P/O PL 13.20 Item 16)
3 – Harness guide (P/O PL 13.20 Item
16) (FX)
4 029K93260 Stapler assembly (REP 13.16)
5 – Holder (P/O PL 13.20 Item 16)
6 – Stapler move position sensor
assembly (Not Spared)
7 – Bracket (P/O PL 13.20 Item 6)
8 130E94940 Stapler move position sensor (Q12-
241)
9 068K58811 Stapler move motor assembly
(MOT12-046) (REP 13.15)
10 – Harness guide (P/O PL 13.20 Item
16)
11 – Harness support guide (P/O PL
13.20 Item 16)
12 – Harness guide (P/O PL 13.20 Item
16)
13 – Stapler cover (Not Spared)
14 – Clamp (P/O PL 13.20 Item 16)
15 – Stapler cartridge (See NOTE)
16 801K64900 Stapler unit
17 – Cable band (Not Spared)
18 – Harness guide (Not Spared)
19 952K35890 Wire harness
20 – Label (Not Spared)
21 – Stapler move motor bracket (P/O
PL 13.20 Item 9)
NOTE: Refer to PL 26.05 for the staple refills and cartridge.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
