Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.60
Launch Issue
Parts Lists

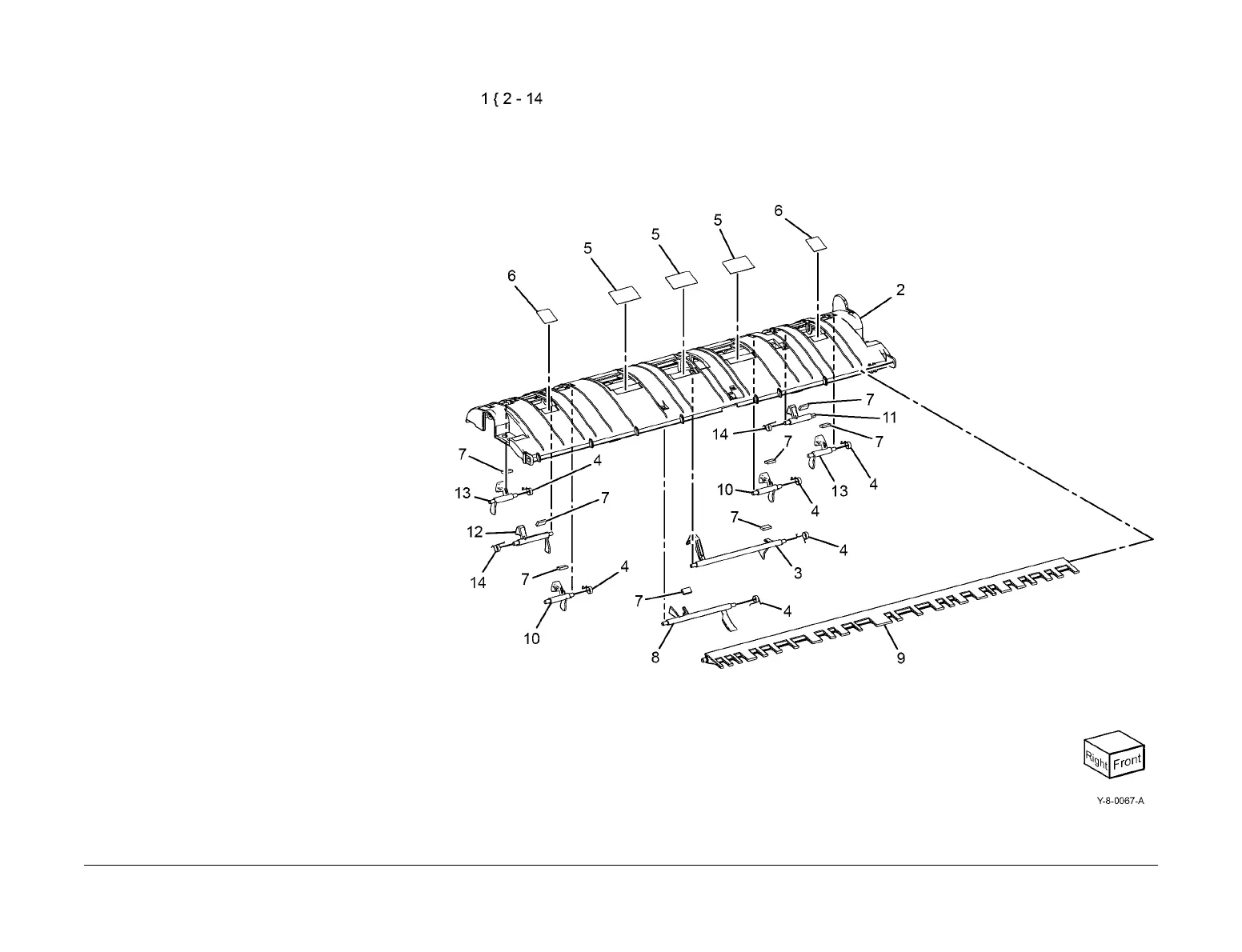

PL 5.60 Invert Chute
Item Part Description
1 – Invert chute assembly (REF: PL
5.45 Item 3)
2 – Invert chute (P/O PL 5.60 Item 1)
3 – Pre-registration actuator (P/O PL
5.60 Item 1)
4 – Spring (P/O PL 5.60 Item 1)
5 – W seal (P/O PL 5.60 Item 1)
6 – S seal (P/O PL 5.60 Item 1)
7 – Pad (P/O PL 5.60 Item 1)
8 – Invert actuator (P/O PL 5.60 Item 1)
9 – Invert gate (P/O PL 5.60 Item 1)
10 – APS 1 actuator (P/O PL 5.60 Item
1)
11 – APS 2 actuator (P/O PL 5.60 Item
1)
12 – APS 2 dummy actuator (P/O PL
5.60 Item 1)
13 – APS 3 actuator (P/O PL 5.60 Item
1)
14 – Spring (P/O PL 5.60 Item 1)
