Xerox VersaLink B7025 Service Manual

April 2017
5-6
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 2.05
Launch Issue
Parts Lists

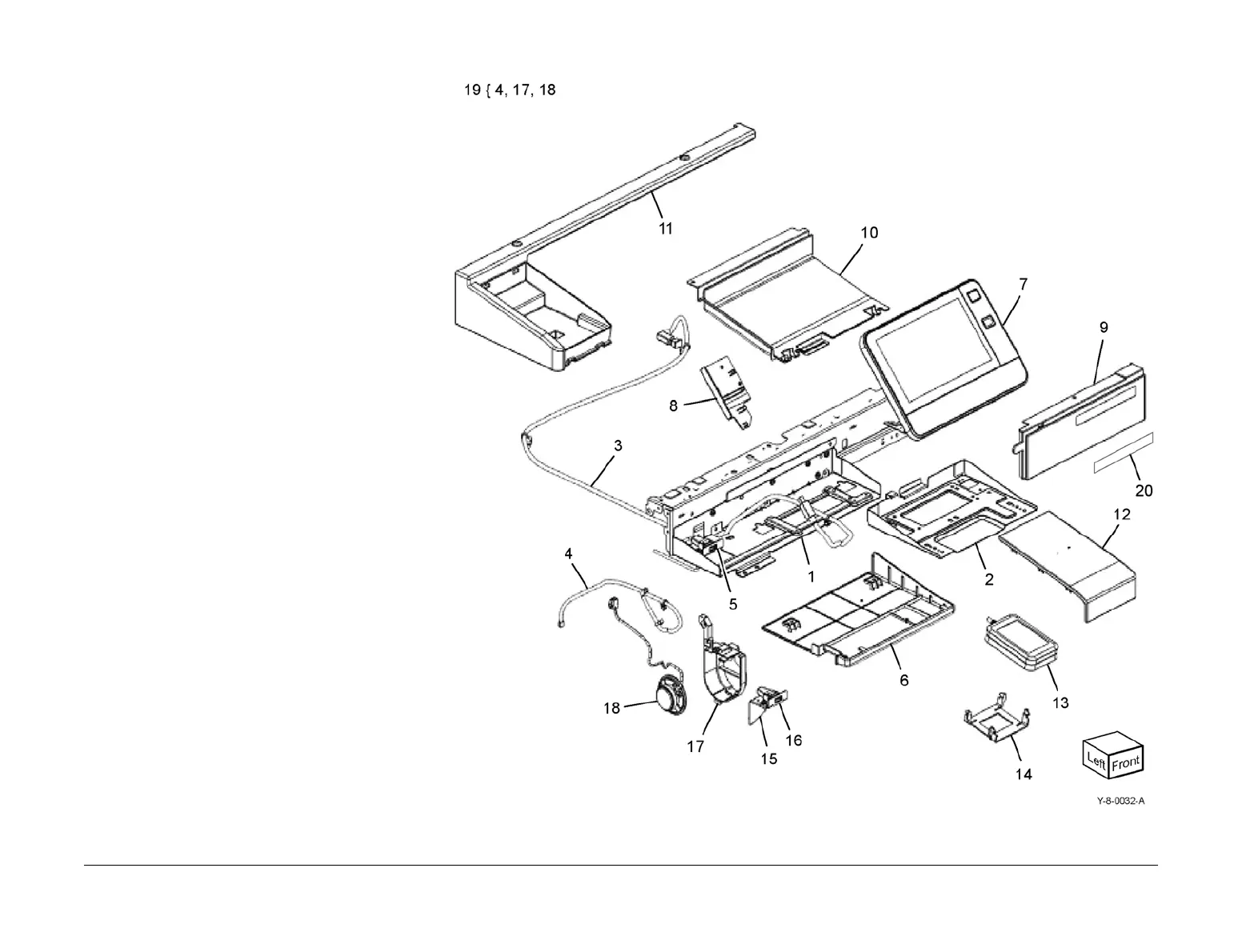

PL 2.05 User Interface
Item Part Description
1 – UI bracket (Not Spared)
2 – UI frame (Not Spared)
3 952K33680 UI harness
4 – UI speaker harness (P/O PL 2.05
Item 19)
5 952K33380 USB ICCR harness
6 – Bottom cover (Not Spared)
7 948K02981 UI assembly (REP 2.1)
8 – Cable cover (Not Spared)
9 – Lower cover (Not Spared)
10 822E25851 Inner cover
11 – Upper cover (Not Spared)
12 – ICCR cover (Not Spared)
13 – Card reader (Not Spared)
14 – ICCR bottom cover (Not Spared)
15 – Front USB bracket (Not Spared)
16 952K33390 USB cable assembly
17 – Speaker holder (P/O PL 2.05 Item
19)
18 – Speaker assembly (P/O PL 2.05
Item 19)
19 – Speaker bracket assembly (Not
Spared)
20 – Name label (Not Spared)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
