April 2017
5-89
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.27
Parts Lists
Launch Issue

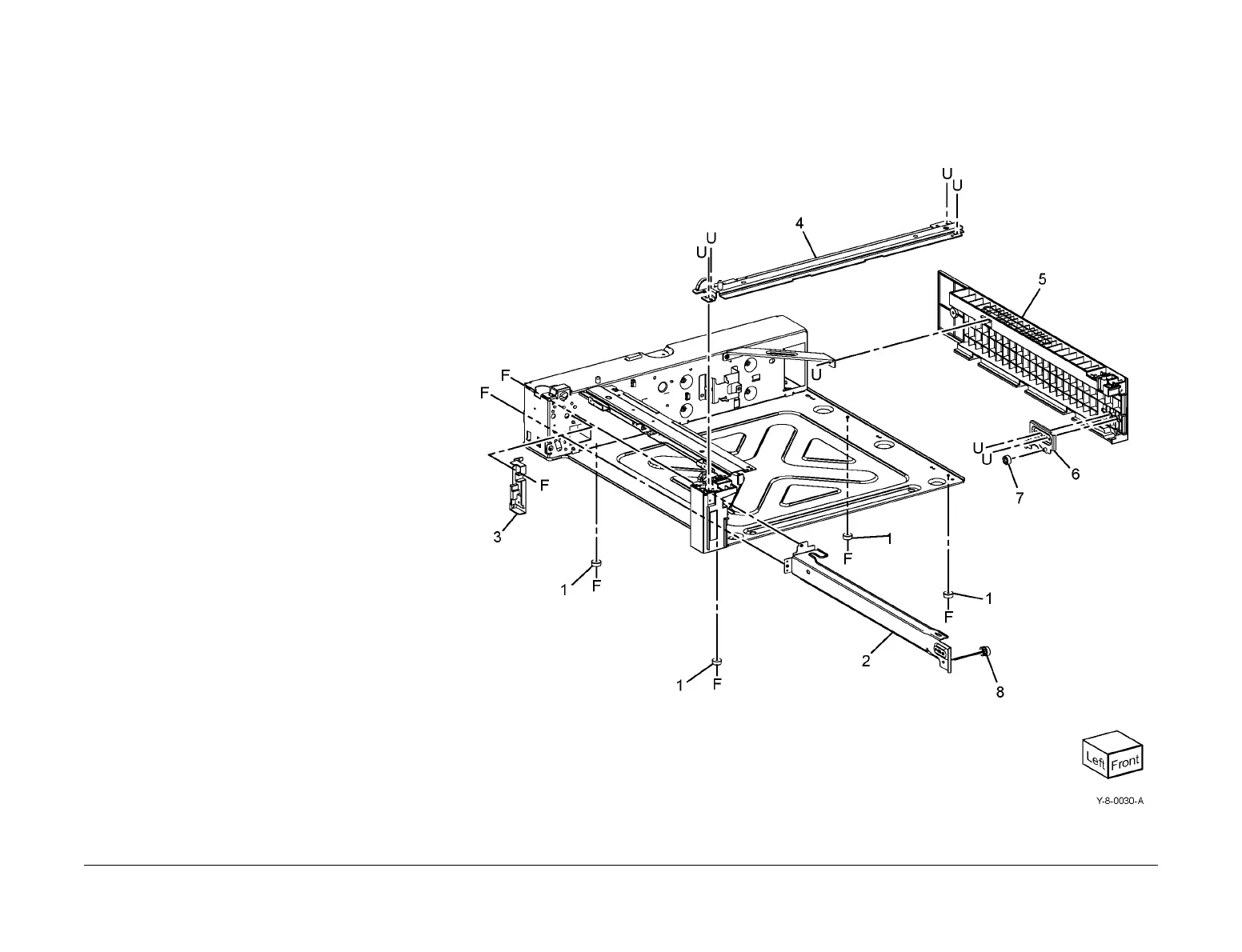

PL 70.27 STM (3 of 4)
Item Part Description
1 – Foot (Not Spared)
2 – Left rail assembly (Not Spared)
3 – Harness guide (Not Spared)
4 – Top front frame assembly (Not
Spared)
5 – RH guide (Not Spared)
6 – Right rail assembly (Not Spared)
7 059E08410 Front right roller
8 059E03500 Front left roller
