Xerox VersaLink B7025 Service Manual

April 2017
5-92
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.35
Launch Issue
Parts Lists

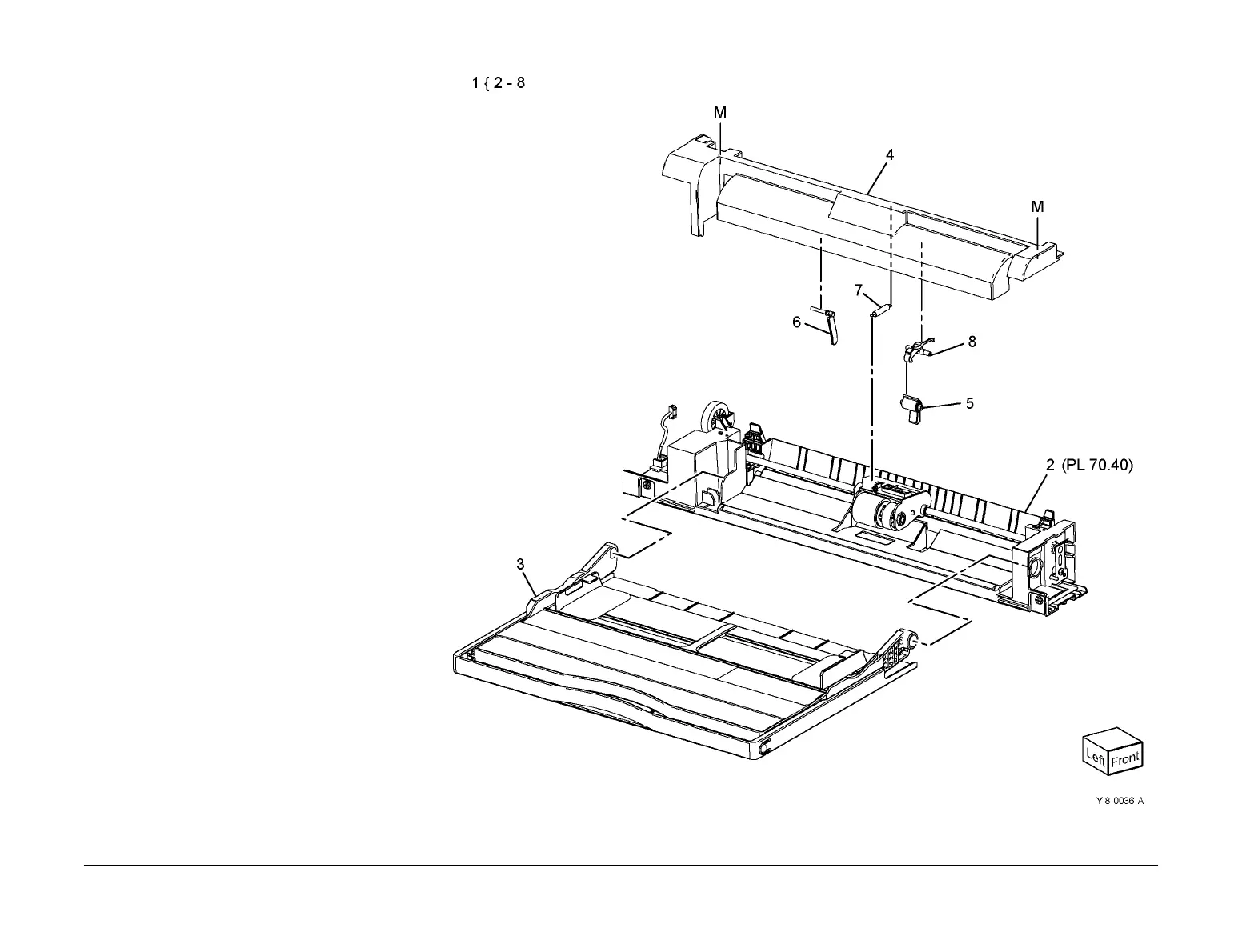

PL 70.35 Bypass Tray Components
Item Part Description
1 – Bypass tray feeder assembly (Not
Spared)
2 – Bypass tray lower feeder assembly
(REF: PL 70.40)
3 – Bypass tray assembly (P/O PL
70.35 Item 1)
4 – Upper frame (P/O PL 70.35 Item 1)
5 – Paper stopper (P/O PL 70.35 Item
1)
6 – No paper sensor actuator (P/O PL
70.35 Item 1)
7 – Spring (P/O PL 70.35 Item 1)
8 – Paper lock stopper (P/O PL 70.35
Item 1)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
