April 2017
5-22
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.70
Launch Issue
Parts Lists

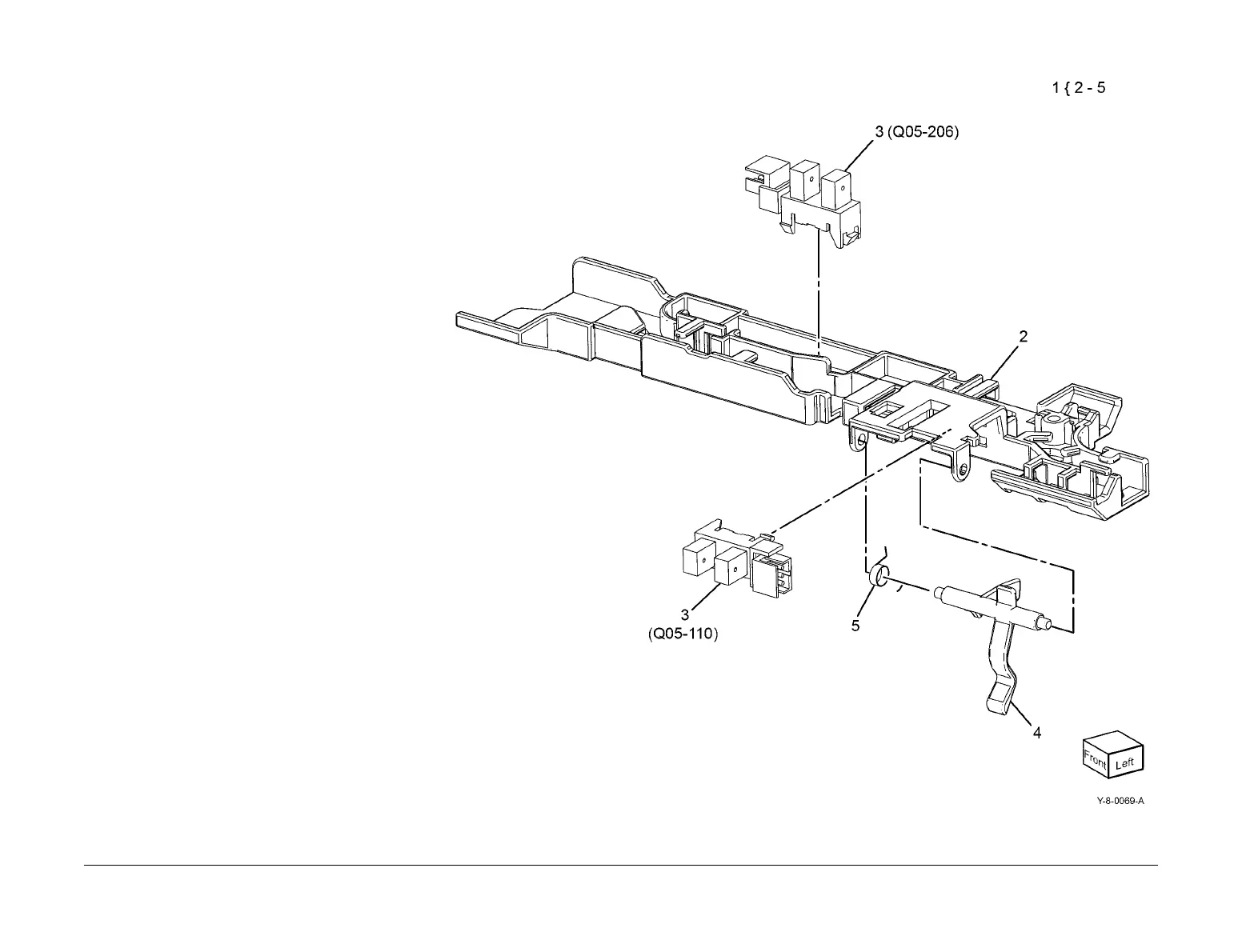

PL 5.70 Sensor Bracket
Item Part Description
1 – Registration sensor bracket
assembly (Not Spared)
2 – Bracket (P/O PL 5.70 Item 1)
3 930W00121 Registration sensor (Q05-110)/pre-
registration sensor (Q05-206)
4 – Actuator (P/O PL 5.70 Item 1)
5 – Torsion spring (P/O PL 5.70 Item 1)
