Xerox VersaLink B7025 Service Manual

April 2017
5-47
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.25
Parts Lists
Launch Issue

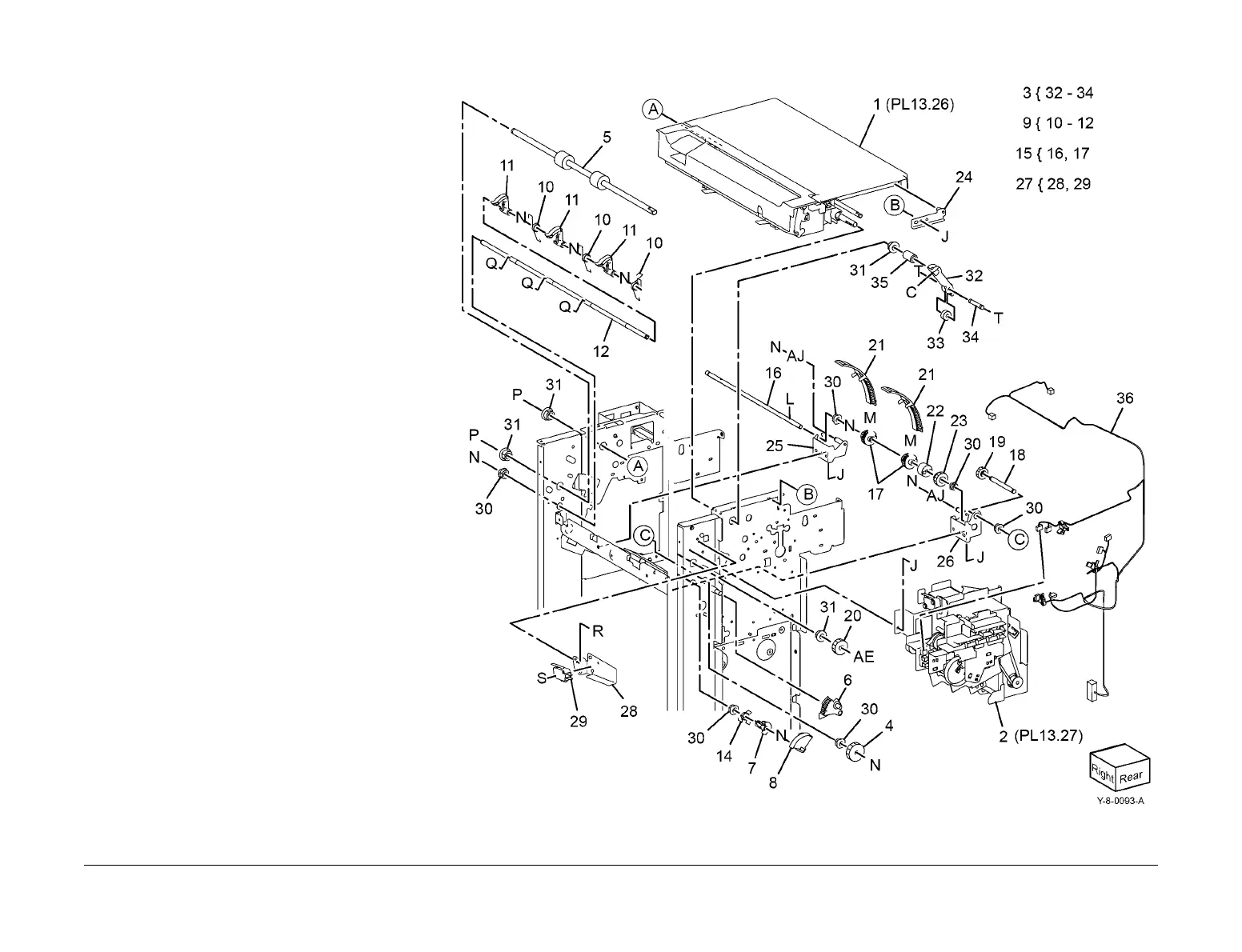

PL 13.25 Office Finisher LX Ejector (1
of 5)
Item Part Description
1 – Eject cover assembly (Not Spared)
2 – Eject assembly (Not Spared)
3 031K93790 Clamp arm assembly
4 807E21400 Gear (31T)
5 059K55111 Eject roller
6 807E21380 Sector gear (72T)
7 807E21391 Gear (18T)
8 120E29773 Actuator
9 006K86731 Set clamp shaft assembly
10 809E79060 Spring
11 – Set clamp holder (P/O PL 13.25
Item 9)
12 – Shaft (P/O PL 13.25 Item 9)
13 – Not used
14 809E79080 Spring
15 006K86741 Guide paper shaft assembly
16 – Guide paper shaft (P/O PL 13.25
Item 15)
17 – Gear (20T) (P/O PL 13.25 Item 15)
18 – Shaft (Not Spared)
19 807E21420 Gear (19T)
20 807E21370 Gear (25T)
21 038E36490 Guide paper (left/right)
22 005K83720 Clutch
23 807E45590 Gear (23T)
24 – Stopper (Not Spared)
25 – Bracket (front) (Not Spared)
26 – Bracket (rear) (Not Spared)
27 – Option switch assembly (Not
Spared)
28 – Bracket (P/O PL 13.25 Item 27)
29 – Option switch (P/O PL 13.25 Item
27)
30 413W11660 Sleeve bearing
31 – Bearing (Not Spared)
32 – Clamp arm (P/O PL 13.25 Item 3)
33 – Roll (P/O PL 13.25 Item 3)
34 – Shaft (P/O PL 13.25 Item 3)
35 – Spacer (Not Spared)
36 962K60433 Wire harness

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
