Xerox VersaLink B7025 Service Manual

April 2017
5-63
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 28.05
Parts Lists
Launch Issue

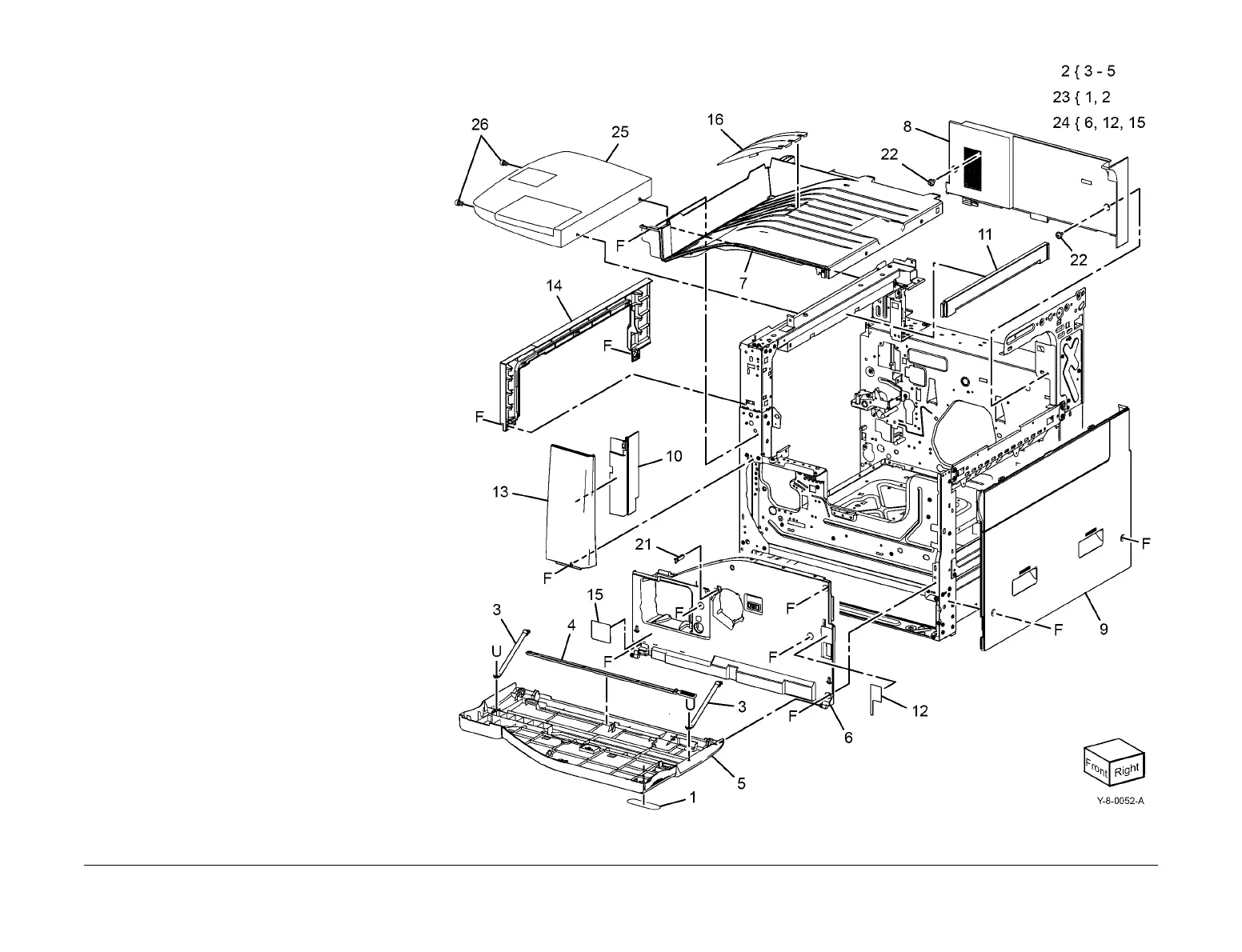

PL 28.05 Covers (1 of 2)
Item Part Description
1 – Logo plate (P/O PL 28.05 Item 23)
2 – Front cover assembly (P/O PL
28.05 Item 23) (REP 28.1)
3 – BS strap (P/O PL 28.05 Item 2)
4 – Cleaner assembly (P/O PL 28.05
Item 2)
5 – Front cover (P/O PL 28.05 Item 2)
6 – Inner cover (P/O PL 28.05 Item 23)
(REP 28.2)
7 – Top cover (Not Spared) (REP 28.4)
8 – Top rear cover (Not Spared)
9 – Right cover (Not Spared) (REP
28.3)
10 – Exit front cover (Not Spared)
11 – Exit upper cover (Not Spared)
12 – SW label (P/O PL 28.05 Item 23)
13 – Pillar left cover (Not Spared)
14 – LH top cover (Not Spared)
15 – CRU label (P/O PL 28.05 Item 23)
16 050E32530 Tray insert
17 – Not used
18 – Not used
19 – Not used
20 – Not used
21 803E23900 Stopper-T
22 – Screw TP black (Not Spared)
23 607K02520 Front cover kit
24 607K03490 Inner cover kit
25 – Work surface (wing table) (P/O PL
31.05 Item 7)
26 003E63230 Thumbscrew
