Xerox VersaLink B7025 Service Manual

April 2017
4-237
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
ADJ 60.4
Repairs and Adjustments
Launch Issue
ADJ 60.4 IIT Image Ratio
Purpose
To correct the in process and cross process direction ratio for a 100% copy.
Check
CAUTION
Only perform this procedure if absolutely necessary. Adjusting IIT magnification may adversely
affect resolution due to ASIC shift.
NOTE: For a description of the print/copy orientation definitions, refer to GP 31 Print/Copy Ori-
entation Definitions.
1. Make two, 100% copies of test pattern 82E8220 from the document glass.
2. Check the 2nd copy:
a. To check the cross process direction magnification: measure the 200mm line run-
ning from near LE1 to near LE3. Check that the dimension is 200mm +/- 1mm (7.9
inches +/- 0.04 inch). Refer to Figure 1.

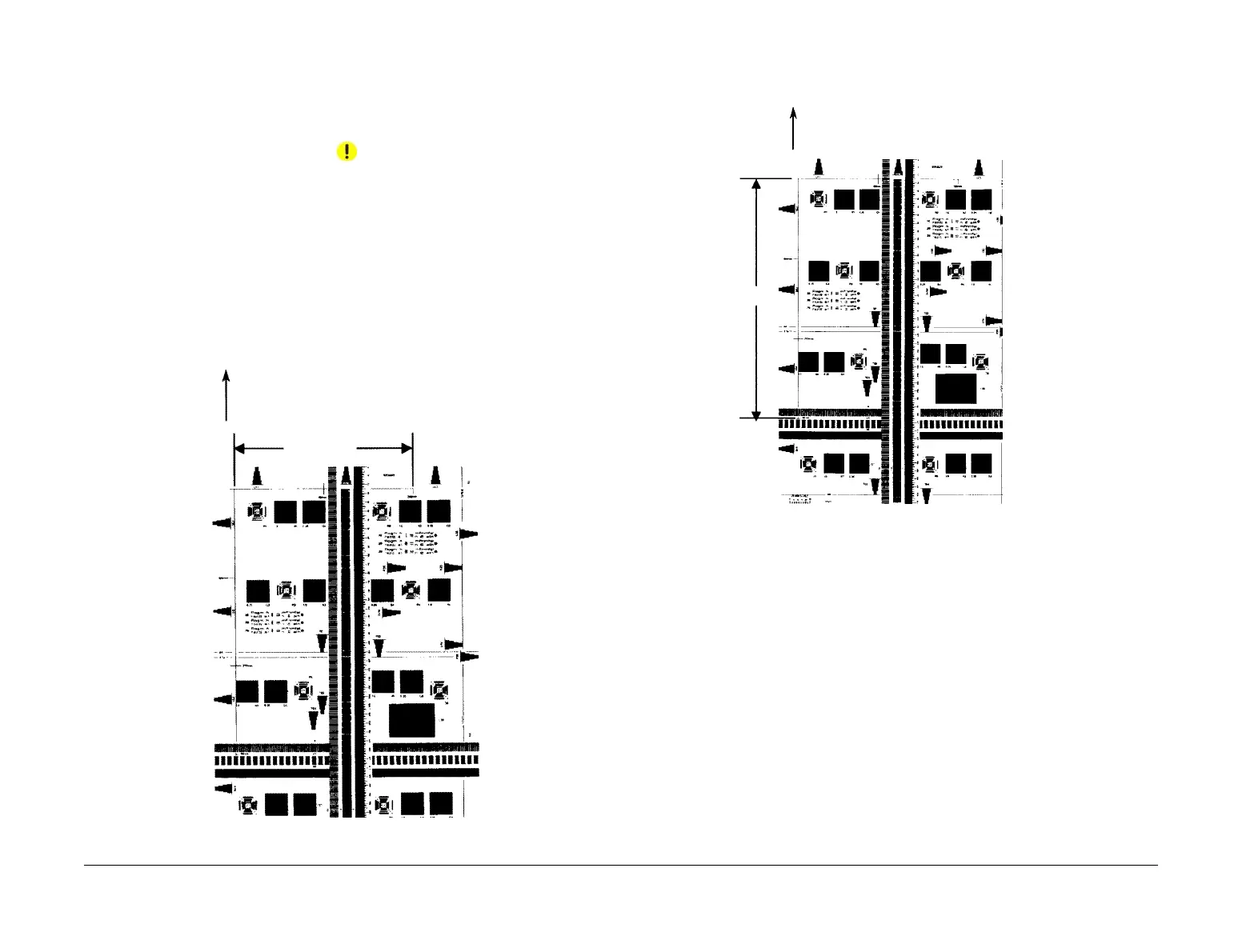

Figure 1 Cross process direction magnification
b. To check the in process direction magnification: measure the 300mm line running
from near LE1 to the trail edge of the 1.8lp ladder. Check that the dimension is
300mm +/- 1mm (11.8 inches +/- 0.04 inch). Refer to Figure 2.
Figure 2 In process direction magnification
3. If either measurement is not in specification, perform the relevant Adjustment.
Adjustment
Cross Process Direction Magnification
1. Enter dC131. Change the value of NVM location 715-702 to correct cross process direc-
tion magnification:
• Increase the value to increase the cross process direction image size.
• Decrease the value to decrease the cross process direction image size.
NOTE: An increment of 1 in NVM = 0.1%.
2. Repeat the Check.
In Process Direction Magnification
1. Enter dC131. Change the value of NVM location 715-051 to correct cross process direc-
tion magnification:
• Increase the value to increase the in process direction image size.
• Decrease the value to decrease the in process direction image size.
NOTE: An increment of 1 in NVM = 0.1%.
2. Repeat the Check.
Lead edge
200mm +/- 1mm
(7.9 inches +/- 0.04 inch)
Lead edge
300mm +/- 1mm
(11.8 inches +/-
0.04 inch)

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
