Xerox VersaLink B7025 Service Manual

April 2017
4-233
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
ADJ 60.1
Repairs and Adjustments
Launch Issue
ADJ 60.1 Full/Half Rate Carriage Position Adjustment
Parts List on PL 60.15
Purpose
To adjust the position of the full rate carriage and half rate carriage.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 10. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
NOTE: Adjust the position of the carriages at the front and rear separately. Only the procedure
for the rear is described here. The procedure for the front is the same.
1. Open DADF.
2. Remove the document glass, REP 60.1.
CAUTION
Do not remove the four screws that secure the lens base.

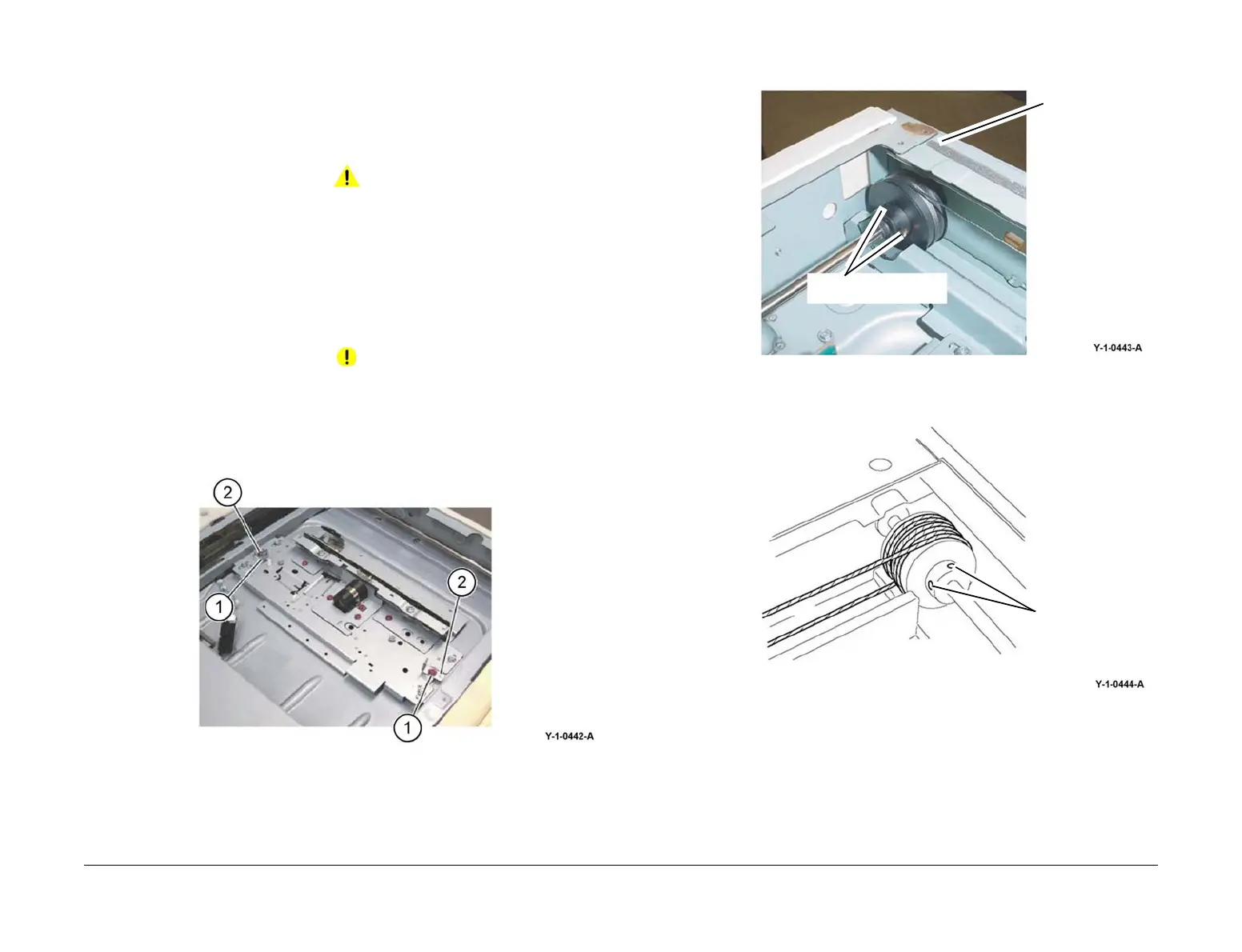

3. Remove the alignment pins from the lens assembly, Figure 1:
a. Remove two screws (1).
b. Remove the alignment pins (2).
Figure 1 Alignment pins
4. Check that the pulley at the front side is firmly secured. If the pulley is loose, tighten both
set screws, Figure 2.
Figure 2 Front set screws
5. Loosen the two set screws that secure the pulley at the rear, Figure 3.
Figure 3 Rear set screws
Set screws
Front
Set screws
Rear
