Xerox VersaLink B7025 Service Manual

April 2017
5-123
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.62
Parts Lists
Launch Issue

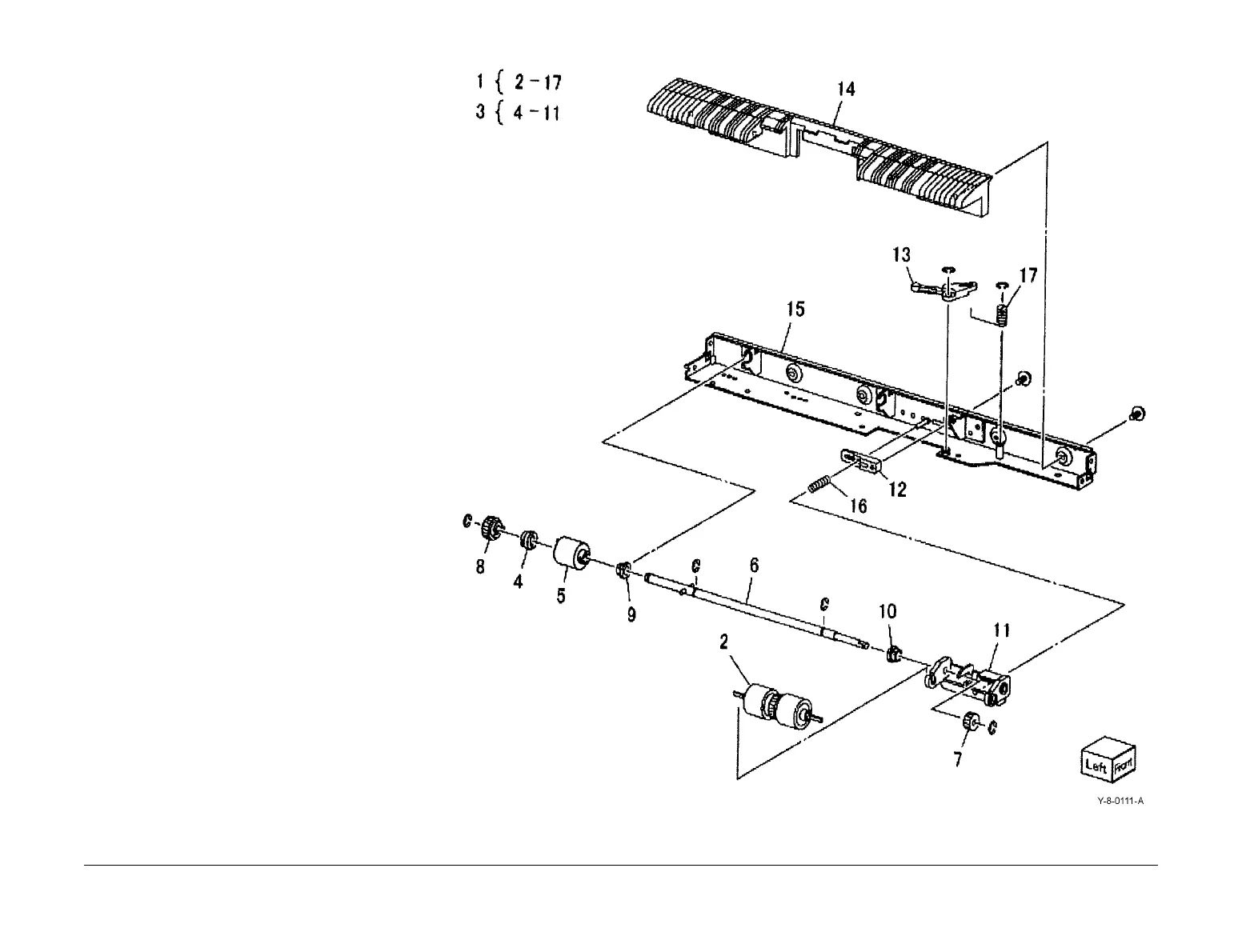

PL 80.62 HCF Feeder (3 of 3)
Item Part Description
1 – Lower feed assembly (Not Spared)
2 – Retard roll (P/O PL 80.61 Item 24)
3 – Retard shaft assembly (P/O PL
80.62 Item 1)
4 – Collar (P/O PL 80.62 Item 3)
5 005K06701 Friction clutch
6 – Shaft (P/O PL 80.62 Item 3)
7 007E78170 Gear 15T
8 007E89760 Gear 22T
9 013E23600 Bearing
10 013E23610 Bearing
11 – Retard bracket (P/O PL 80.62 Item
3)
12 – Slide (P/O PL 80.62 Item 1)
13 – Lever (P/O PL 80.62 Item 1)
14 – Lower chute (P/O PL 80.62 Item 1)
15 – Lower frame (P/O PL 80.62 Item 1)
16 – Spring (P/O PL 80.62 Item 1)
17 – Spring (P/O PL 80.62 Item 1) (REP
80.24)
