Xerox VersaLink B7025 Service Manual

April 2017
5-124
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.65
Launch Issue
Parts Lists

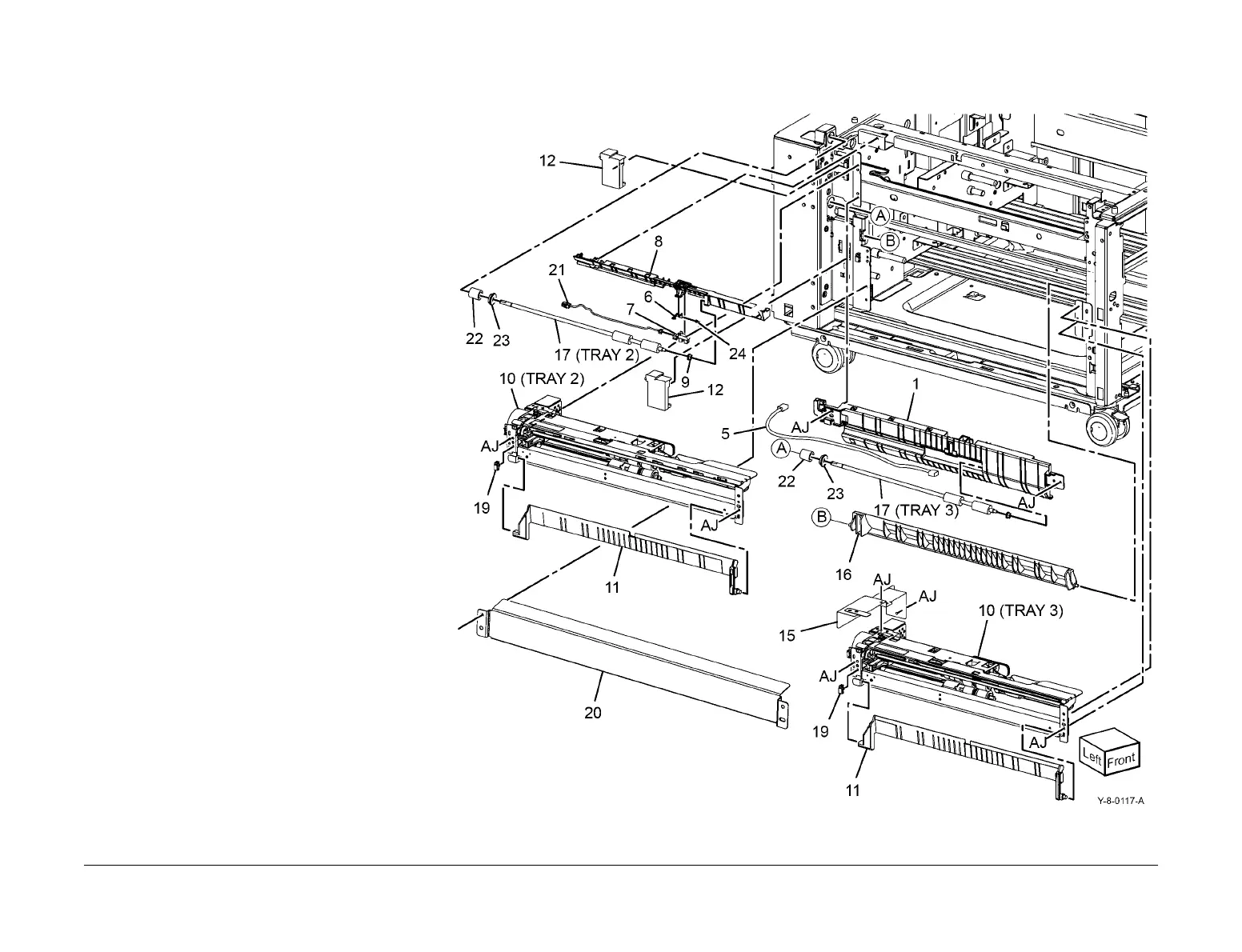

PL 80.65 TTM Tray 2 and 3 Feeders
Item Part Description
1 054E59220 TTM chute (REP 80.30)
2 – Not used
3 – Not used
4 – Not used
5 – Harness assembly (Not Spared)
6 120E37920 Sensor actuator
7 930W00123 Tray 2 feed out sensor (Q72-103)
(REP 80.36)
8 – TA chute (Not Spared)
9 013E46870 Plastic bearing
10 859K09730 Tray 2/3 feeder assembly (REF: PL
80.20, PL 80.25) (See NOTE) (tray
2 - REP 80.33, tray 3 - REP 80.34)
11 054E33803 Feed chute
12 – ESD cover (Not Spared)
13 – Not used
14 – Not used
15 – Feeder cover (Not Spared)
16 – Feed trans - chute (Not Spared)
17 859K04560 Takeaway roll (See NOTE) (REP
80.41)
18 – Not used
19 – Clamp (Not Spared)
20 – Inner cover (Not Spared)
21 – Harness assembly (Not Spared)
22 – Gear 16T (Not Spared)
23 – Sleeve bearing (Not Spared)
24 – Spring (Not Spared)
NOTE: HFSI. To reset the HFSI count, refer to dC135.
