Xerox VersaLink B7025 Service Manual

April 2017
4-97
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.4, REP 13.5
Repairs and Adjustments
Launch Issue
REP 13.4 H-Transport Motor
Parts List on PL 13.08
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the H-transport assembly, REP 13.1.
2. Remove the H-transport rear cover, PL 13.06 Item 9.
3. Place the H-transport top down on a work surface.
4. Remove the H-transport motor, Figure 1:
a. Remove the screw, then the shield (1).
b. Disconnect the connector (2).
c. Loosen two screws to release the belt tension (3).
d. Remove two screws (3), then remove the H-transport motor.

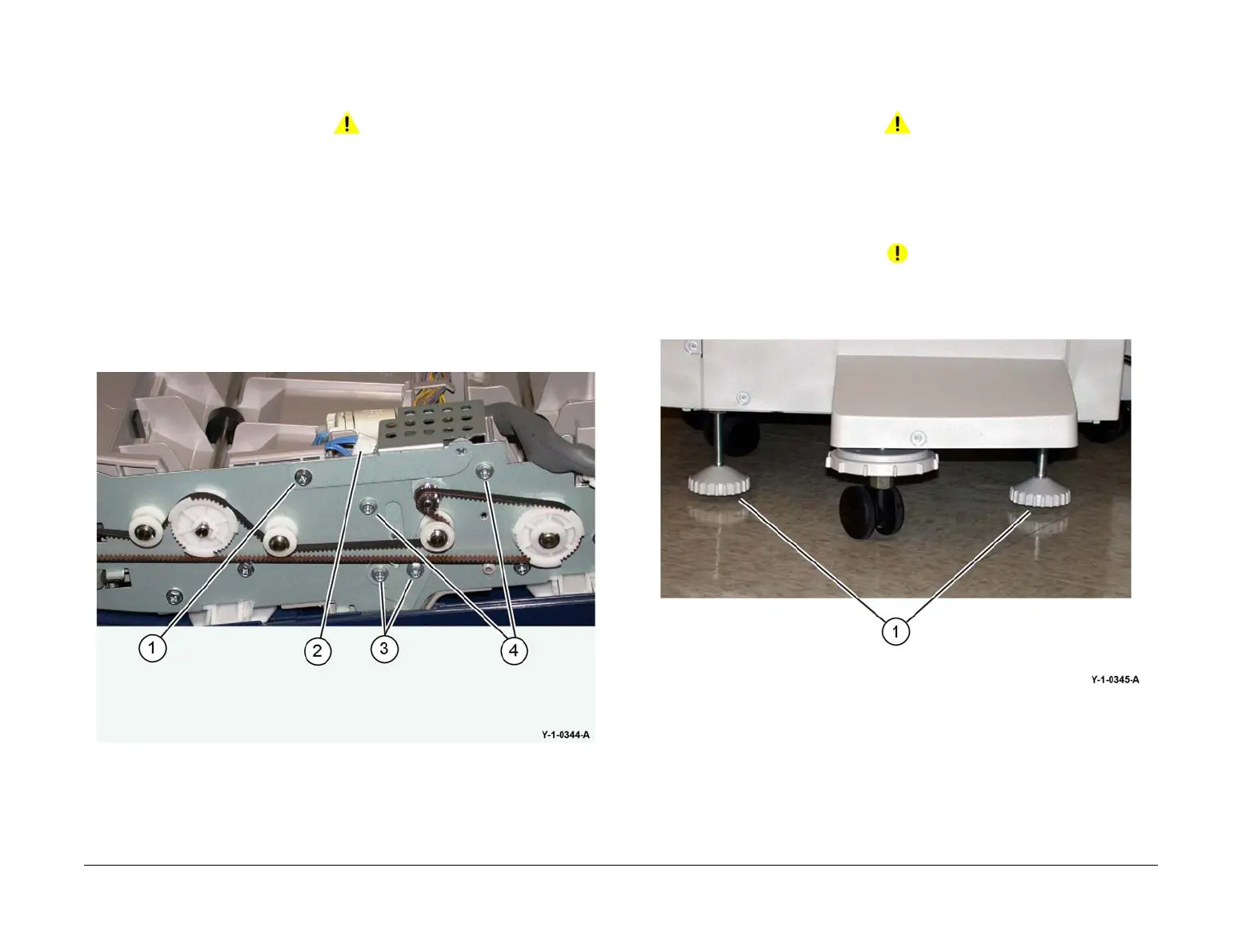

Figure 1 H-transport motor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.5 Finisher LX Undocking
Parts List on PL 13.05
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Disconnect the finisher power cord, the H-transport connector and the finisher connector
from the IOT.
CAUTION
Take care not to topple the finisher. The finisher is unstable when un-docked from the machine.
2. Raise the feet (1) to free the finisher, Figure 1.
Figure 1 Finisher feet
3. Open the finisher front door.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
