Xerox VersaLink B7025 Service Manual

April 2017
5-27
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.21
Parts Lists
Launch Issue

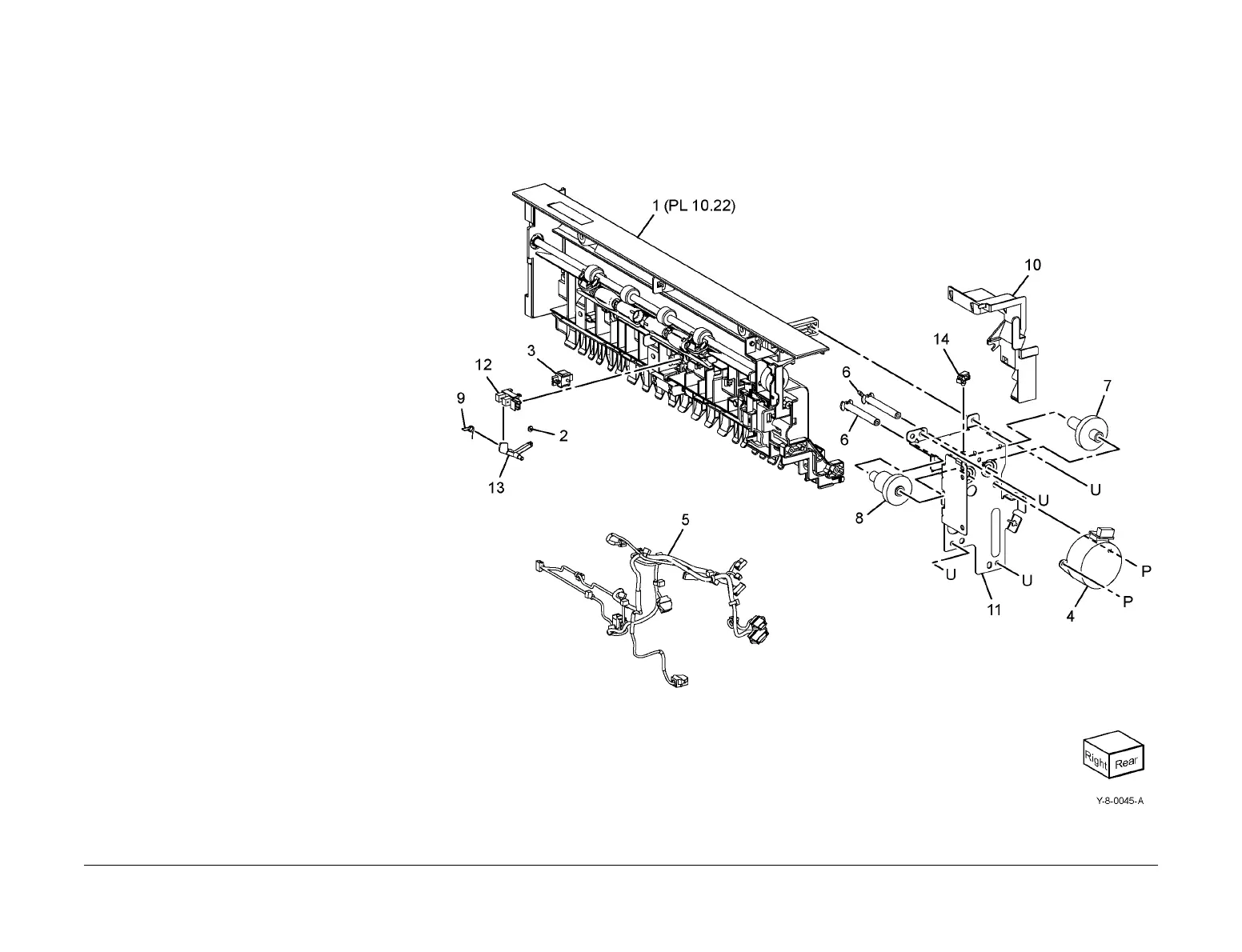

PL 10.21 Exit 2 (2 of 3)
Item Part Description
1 – Exit 2 OCT assembly (REF: PL
10.22)
2 – Roller actuator (Not Spared)
3 110E11580 LH high cover switch (S77-302)
4 127K58400 Exit 2 motor (MOT77-014)
5 952K21200 Exit 2 harness assembly
6 – Gear shaft (Not Spared)
7 – Gear 28T (Not Spared)
8 – Gear 16/48T (Not Spared)
9 – Actuator spring (Not Spared)
10 – Rear cover (Not Spared)
11 – Rear bracket (Not Spared)
12 930W00123 Exit 2 sensor (Q77-100)
13 – Actuator (Not Spared)
14 – Locking clamp (Not Spared)
