Xerox VersaLink B7025 Service Manual

April 2017
5-43
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.09
Parts Lists
Launch Issue

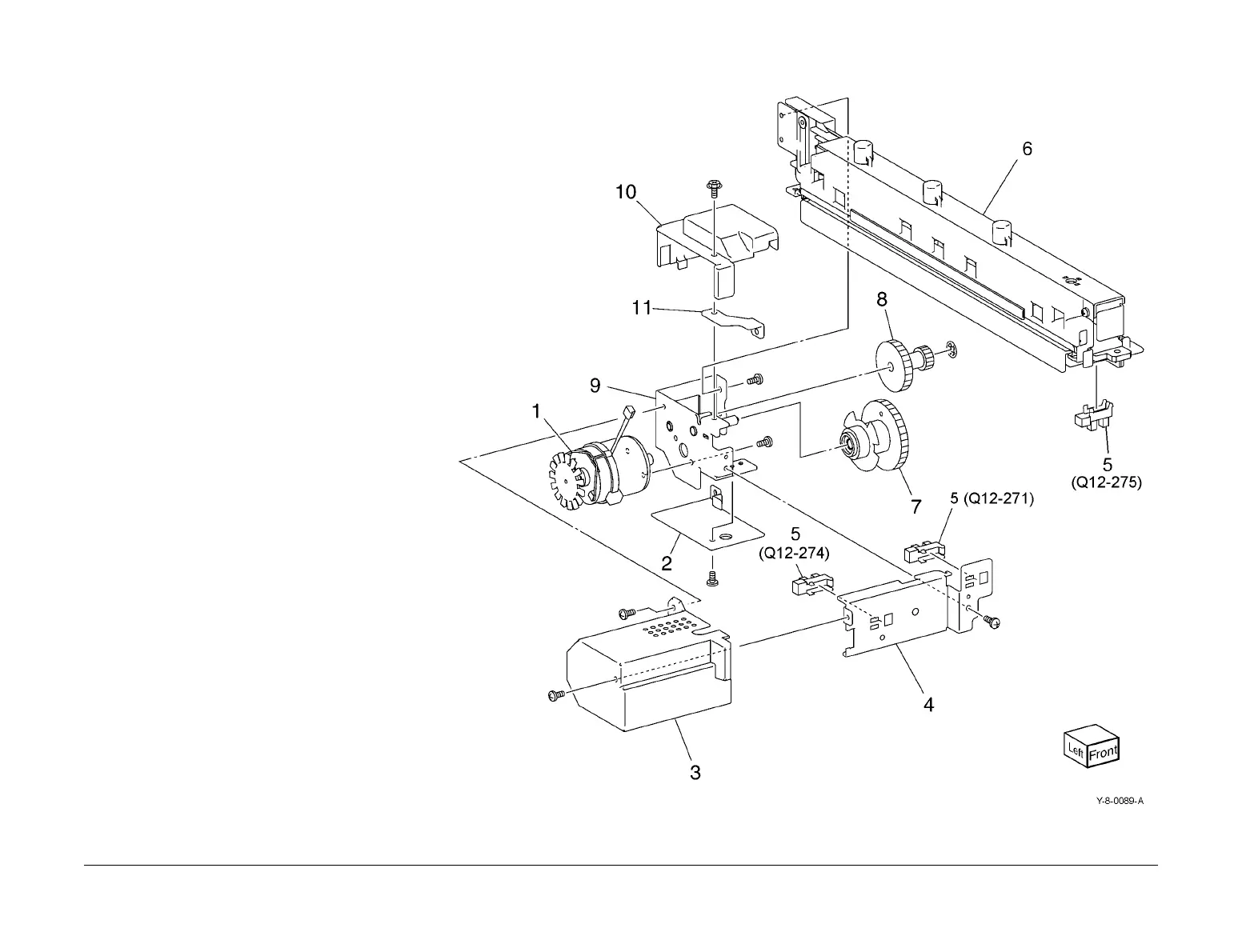

PL 13.09 H-Transport Assembly (5 of
5)
Item Part Description
1 – Punch motor (MOT12-074) (P/O PL
13.06 Item 10)
2 – Punch lower cover (P/O PL 13.06
Item 10)
3 – Punch motor cover (P/O PL 13.06
Item 10)
4 – Sensor bracket (P/O PL 13.06 Item
10)
5 930W00111 Punch encoder sensor (Q12-274)/
punch home sensor (Q12-271)/
punch box set sensor (Q12-275)
6 – Punch frame assembly (P/O PL
13.06 Item 10)
7 – Encoder/gear assembly (P/O PL
13.06 Item 10)
8 – Gear (P/O PL 13.06 Item 10)
9 – Motor bracket (P/O PL 13.06 Item
10)
10 – Punch top cover (P/O PL 13.06
Item 10)
11 – Bracket (P/O PL 13.06 Item 10)
