Xerox VersaLink B7025 Service Manual

April 2017
4-173
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.10
Repairs and Adjustments
Launch Issue
REP 70.10 TTM Tray 4 Lift Shaft and Brake
Parts List on PL 70.67
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Ensure the tray 4 transport assembly, PL 80.70 Item 11 is supported when removing tray 4.
1. Fully pull out tray 4. Remove the paper from tray 4. Lift out tray 4.
2. Remove the tray 4 transport assembly, PL 80.70 Item 11.
3. Remove the tray 4 front cover, PL 70.65 Item 3.
4. Turn tray 4 upside down.

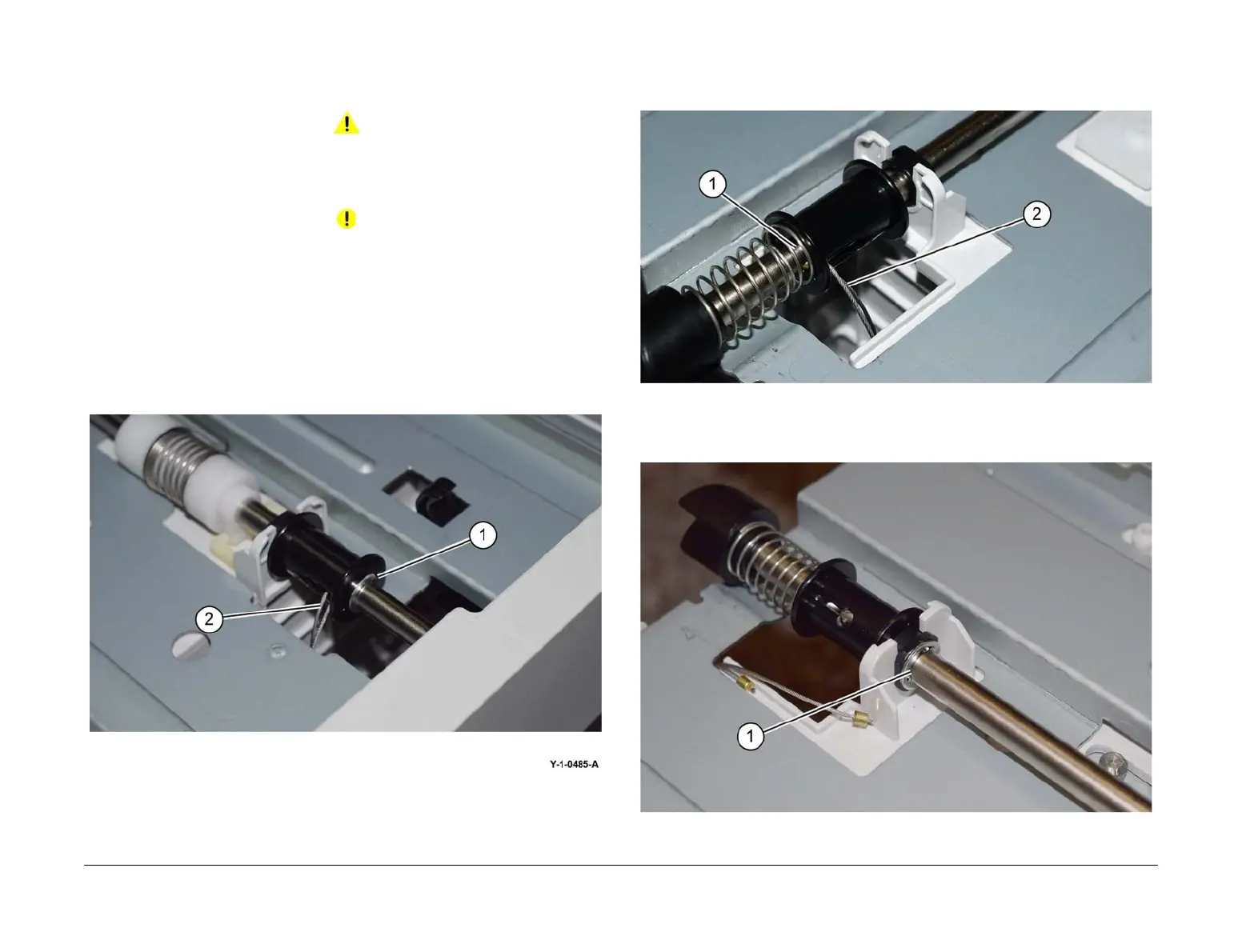

5. Release the front lift cables, Figure 1:
a. Remove the E-clip (1).
b. Release the front lift cables (2).
Figure 1 Front cables
6. Release the rear lift cables, Figure 2:
a. Pull the spring away from the pulley, then remove the E-clip (1).
b. Release the rear lift cables (2).
Figure 2 Rear cables
7. Remove the E-clip (1), Figure 3:
Figure 3 Rear E-clip

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
