Xerox VersaLink B7025 Service Manual

April 2017
5-112
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.15
Launch Issue
Parts Lists

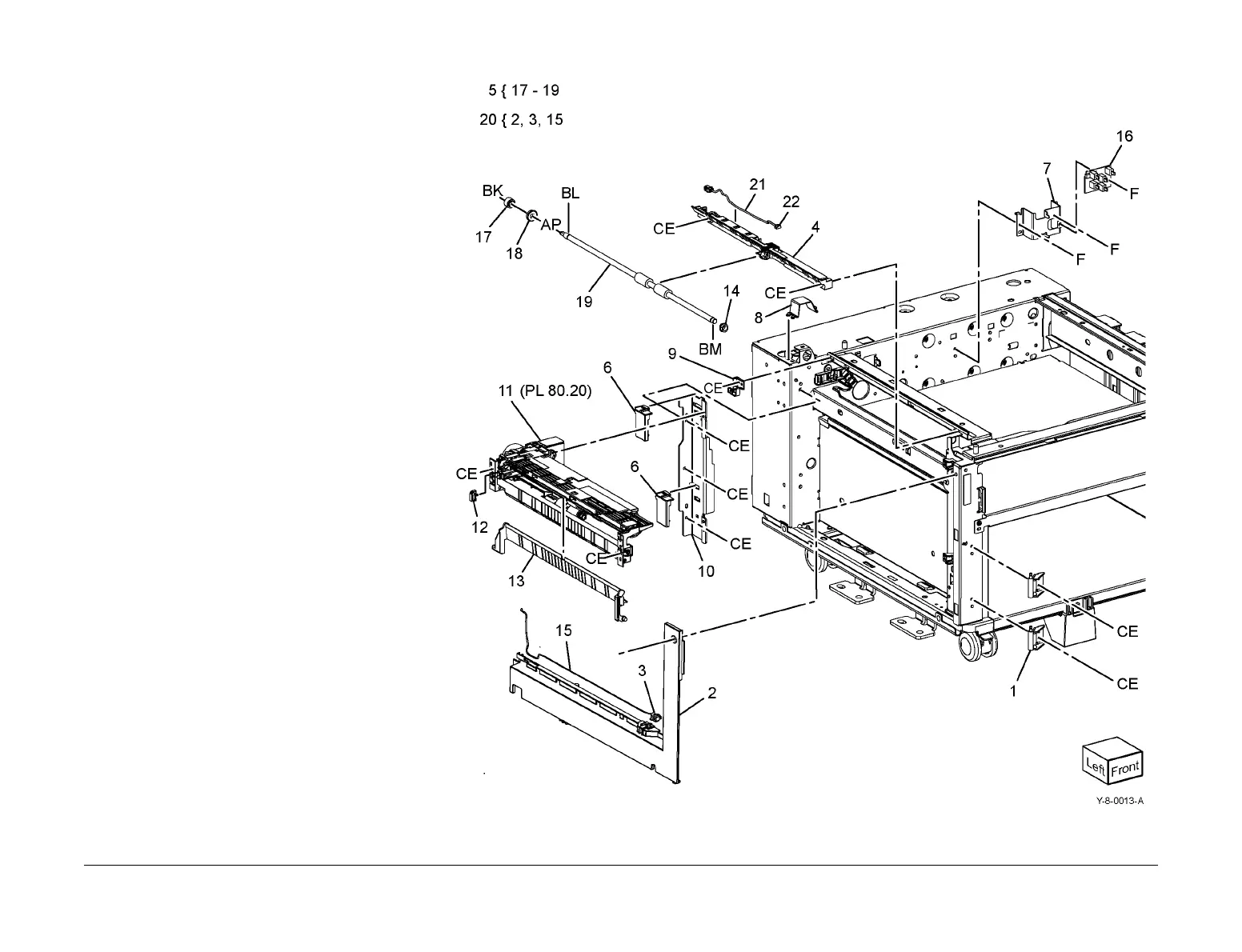

PL 80.15 1TM Feeder
Item Part Description
1 – Hinge bracket (Not Spared)
2 – Left front cover (P/O PL 80.15 Item
20)
3 110E11580 TM left hand interlock switch (S77-
306) (P/O PL 80.15 Item 20)
4 – Exit chute
5 859K03850 Takeaway roll assembly
6 – ESD cover (Not Spared)
7 – Sensor bracket (Not Spared)
8 – Cover bracket (Not Spared)
9 – Left guide (Not Spared)
10 – Bracket (Not Spared)
11 859K09730 Feeder assembly (REF: PL 80.20,
PL 80.25) (see NOTE) (REP 80.3)
12 920W01210 Locking clamp
13 054E33803 Feed chute
14 013E46870 Bearing
15 – Harness assembly (P/O PL 80.15
Item 20)
16 110K17950 Tray 2 paper size sensor
17 – Gear 16T (P/O PL 80.15 Item 5)
18 – Ball bearing (P/O PL 80.15 Item 5)
19 – Takeaway roll (P/O PL 80.15 Item
5)
20 – Left front cover assembly
21 – Feed out sensor harness
22 – Tray 2 feed out sensor (Q72-103)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.
