Xerox VersaLink B7025 Service Manual

April 2017
4-180
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.4
Launch Issue
Repairs and Adjustments
REP 80.4 1TM PWB
Parts List on PL 70.17
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.

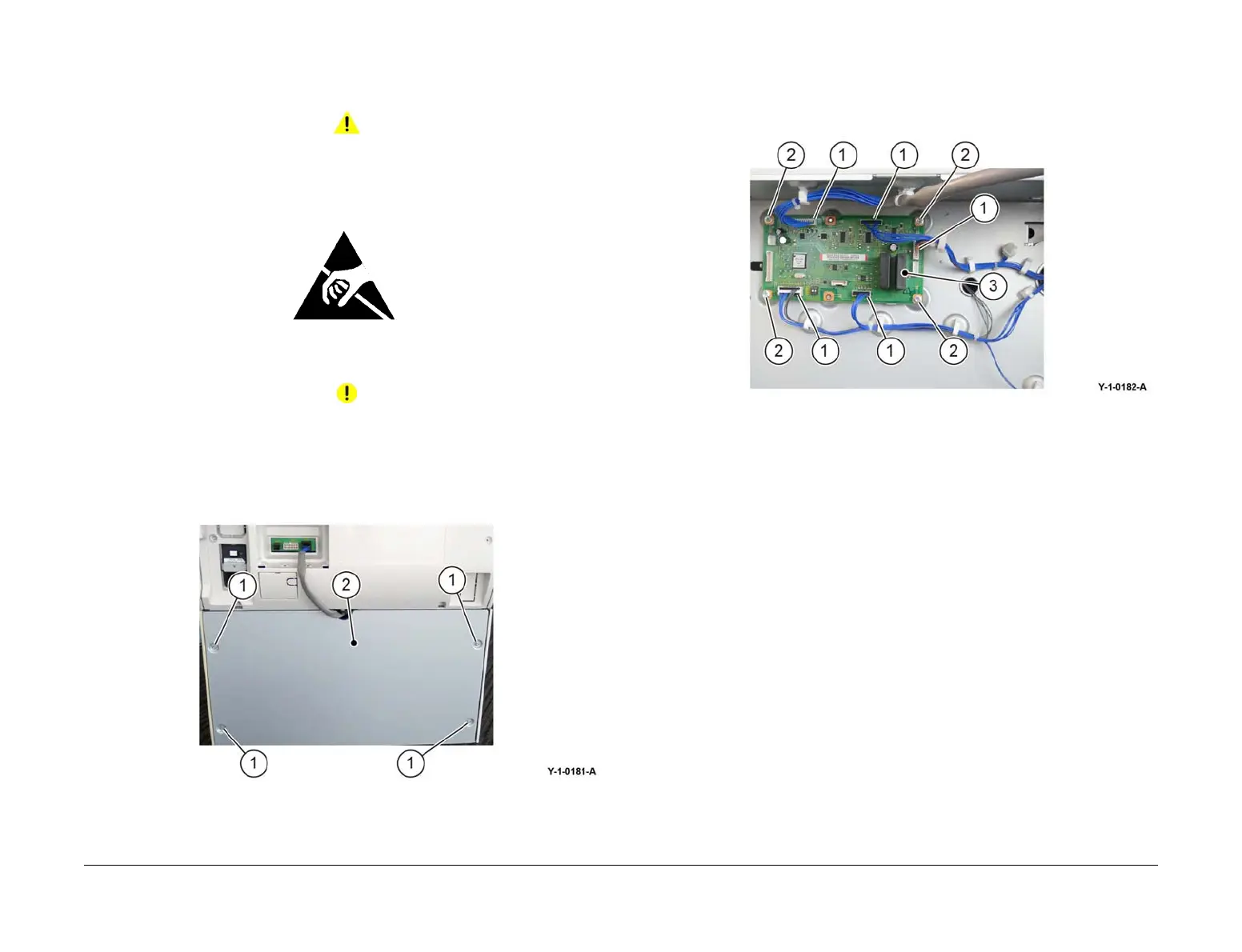

Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. Remove the rear cover, Figure 1:
a. Remove four screws (1).
b. Remove the rear cover (2).
Figure 2 Rear cover removal
2. Remove the 1TM PWB, Figure 2:
a. Disconnect five connectors (1).
b. Remove four screws (2).
c. Remove the 1TM PWB (3).
Figure 3 1TM PWB removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. After installing a new 1TM PWB, change the value of NVM ID 742-205 to '0'.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
