Xerox VersaLink B7025 Service Manual

April 2017
4-129
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.34, REP 13.35
Repairs and Adjustments
Launch Issue
REP 13.34 Booklet Top Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet front cover, REP 13.32.
2. Remove the booklet rear cover, REP 13.33.
3. Remove the booklet top cover, Figure 1:
a. Remove four screws (1).
b. Remove the booklet top cover (2).

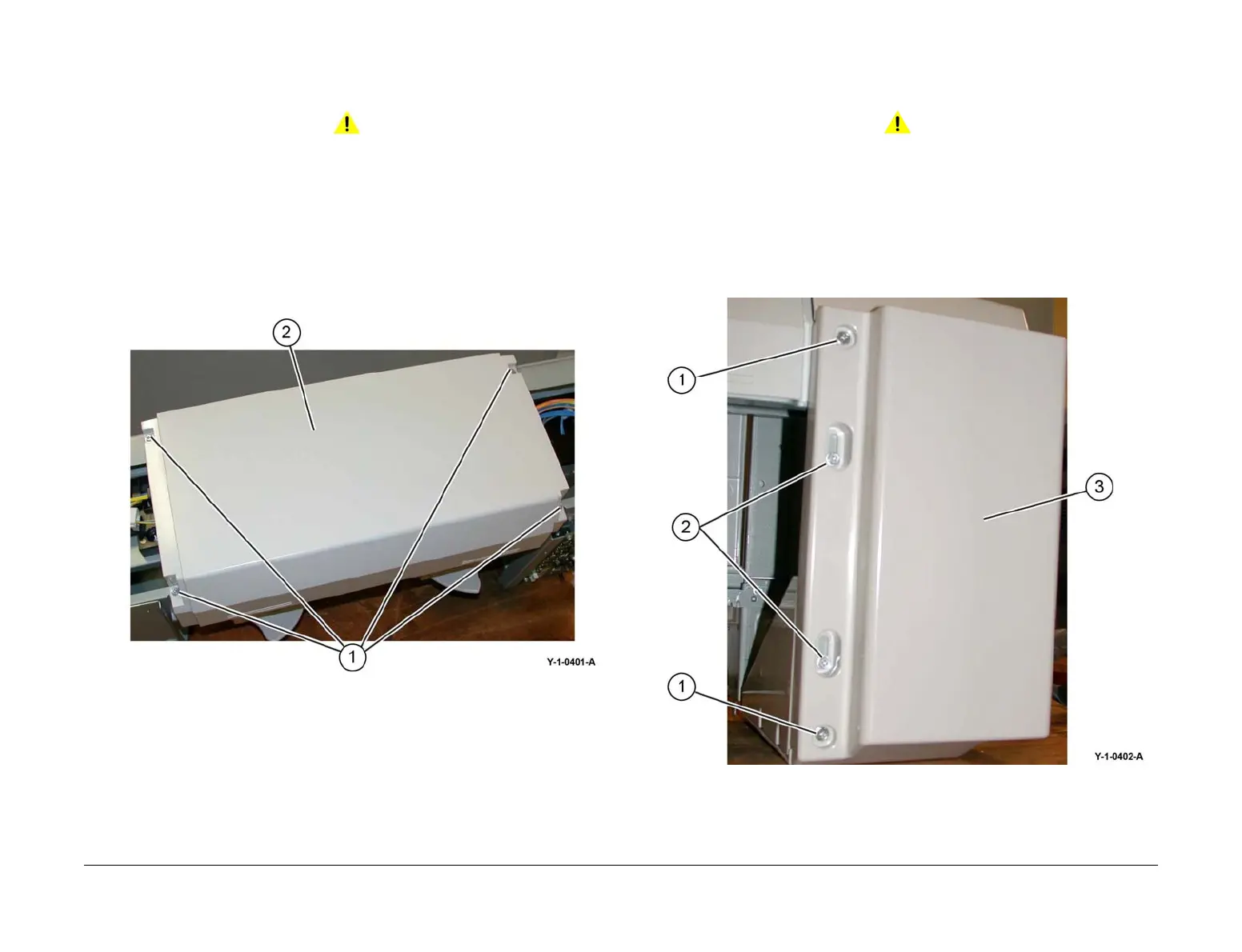

Figure 1 Booklet top cover removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.35 Booklet PWB Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet PWB cover, Figure 1:
a. Remove both self-tapping screws (1).
b. Remove both screws (2).
c. Remove the booklet PWB cover (3).
Figure 1 Booklet PWB cover removal
Replacement
The replacement is the reverse of the removal procedure.

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
