Xerox VersaLink B7025 Service Manual

April 2017
5-99
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.65
Parts Lists
Launch Issue

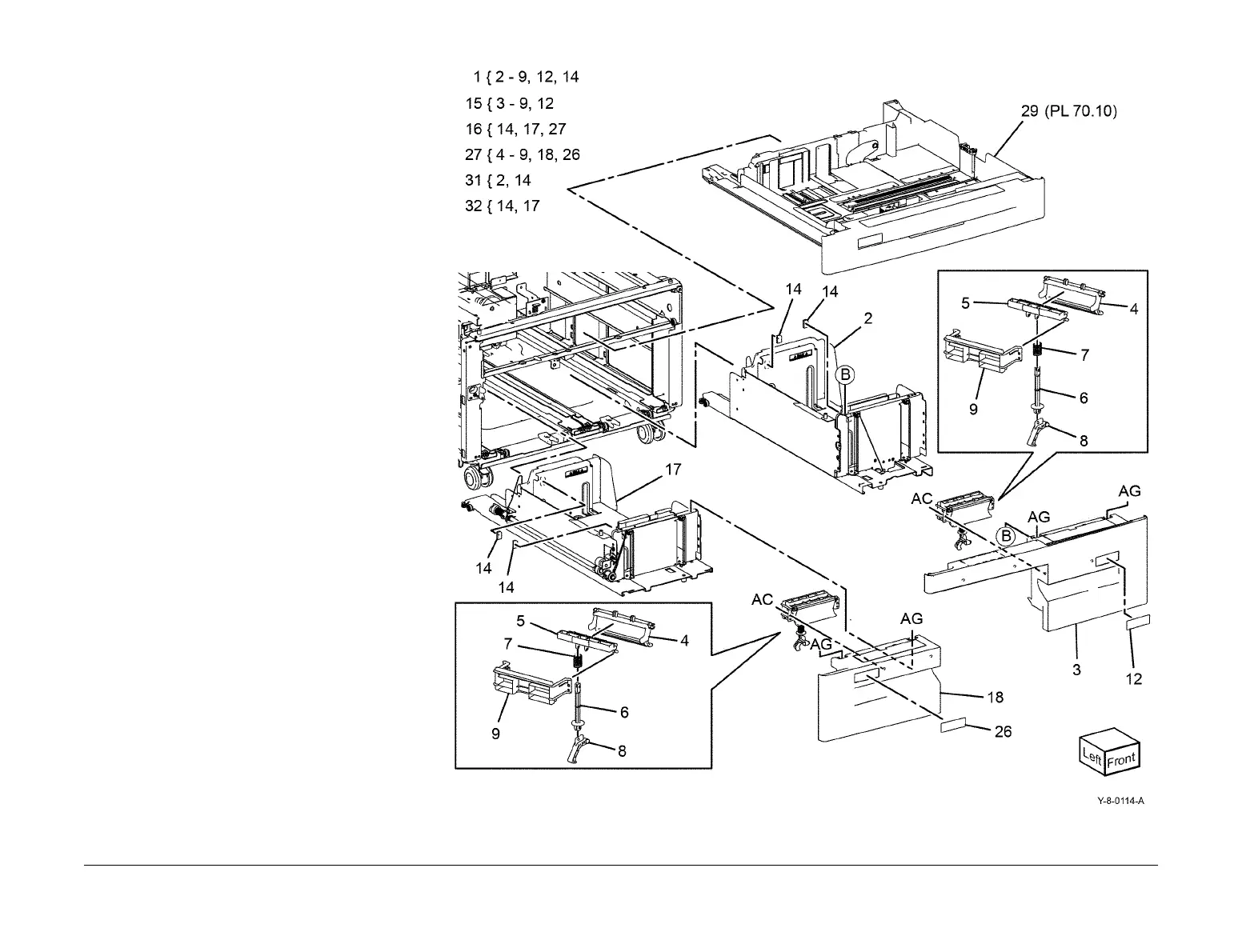

PL 70.65 TTM (1 of 3)
Item Part Description
1 – Tray 4 assembly (Not Spared)
2 – Tray 4 (P/O PL 70.65 Item 31)
3 – Tray 4 cover (P/O PL 70.65 Item
15)
4 – Lever (P/O PL 70.65 Item 27)
5 – Link (P/O PL 70.65 Item 15)
6 – Link (P/O PL 70.65 Item 15)
7 – Spring (P/O PL 70.65 Item 15)
8 – Latch (P/O PL 70.65 Item 15)
9 – Cover (P/O PL 70.65 Item 15)
10 – Not used
11 – Not used
12 – Label (P/O PL 70.65 Item 15)
13 – Not used
14 819E04150 Pad
15 607K08830 Tray 4 cover assembly
16 – Tray 3 assembly
17 – Tray 3 (P/O PL 70.65 Item 32)
18 – Tray 3 cover (P/O PL 70.65 Item
27)
19 – Not used
20 – Not used
21 – Not used
22 – Not used
23 – Not used
24 – Not used
25 – Not used
26 – Label (P/O PL 70.65 Item 27)
27 607K08820 Tray 3 cover assembly
28 – Not used
29 – Tray 2 assembly (REF: PL 70.10)
30 – Not used
31 050K73143 Tray 4 kit
32 050K73163 Tray 3 kit
