Xerox VersaLink B7025 Service Manual

April 2017
4-198
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.19, REP 80.20
Launch Issue
Repairs and Adjustments

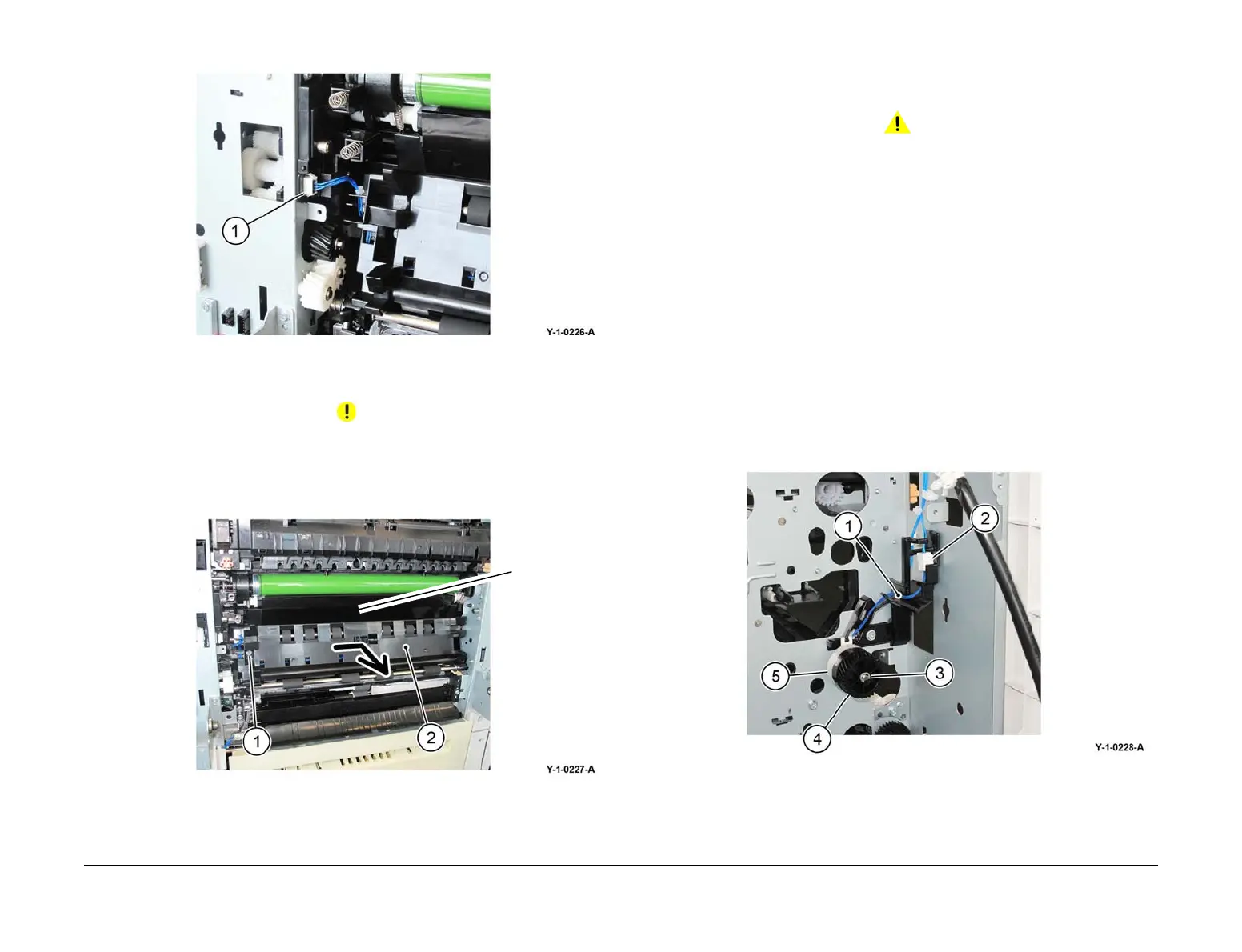

4. Disconnect the connector, Figure 2.
Figure 2 Connector
5. Remove the registration transport assembly, Figure 3:
a. Remove the screw (1).
CAUTION
Take care not to damage the paper guide when removing the registration transport
assembly. Damage to the paper guide may result in paper jams.
b. Move the registration transport assembly (2) in the direction of the arrow to remove.
Figure 3 Registration transport assembly removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.20 Registration Roll
Parts List on PL 80.55
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the drum cartridge, REP 90.4.
2. Remove the front cover, REP 28.1.
3. Remove the inner cover, REP 28.2.
4. Remove the bypass tray, REP 70.2.
5. Remove the LH cover, REP 80.18.
6. Remove the registration transport assembly, REP 80.19.
7. Remove the drive assembly, REP 40.1.
8. Remove the registration clutch assembly, Figure 1:
a. Release the harness from the guide (1).
b. Disconnect the connector (2).
c. Remove the E-clip (3).
d. Remove the registration clutch gear (4).
e. Remove the registration clutch assembly (5).
Figure 1 Registration clutch assembly removal
Paper guide

Xerox VersaLink B7025 Specifications

General

Print Speed	Up to 25 ppm
Print Resolution	Up to 1200 x 1200 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Control Panel	5-inch color touchscreen
Duplex Printing	Standard
Processor	1.05 GHz
Memory	2 GB
Paper Output	250 sheets
Fax Speed	33.6 kbps
Fax Transmission Speed	3 seconds per page
Display	5-inch color touchscreen
Connectivity	Ethernet 10/100/1000 Base-T, High-speed USB 3.0
Functions	Print, Copy, Scan
Media Sizes Supported	A4, A5, A6, B5
Printer Type	Laser
Copy Speed	Up to 25 ppm
Mobile Printing	Apple AirPrint, Google Cloud Print, Xerox Print Service Plug-in for Android
