Xerox VersaLink B7025 Service Manual

April 2017
5-79
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.10
Parts Lists
Launch Issue

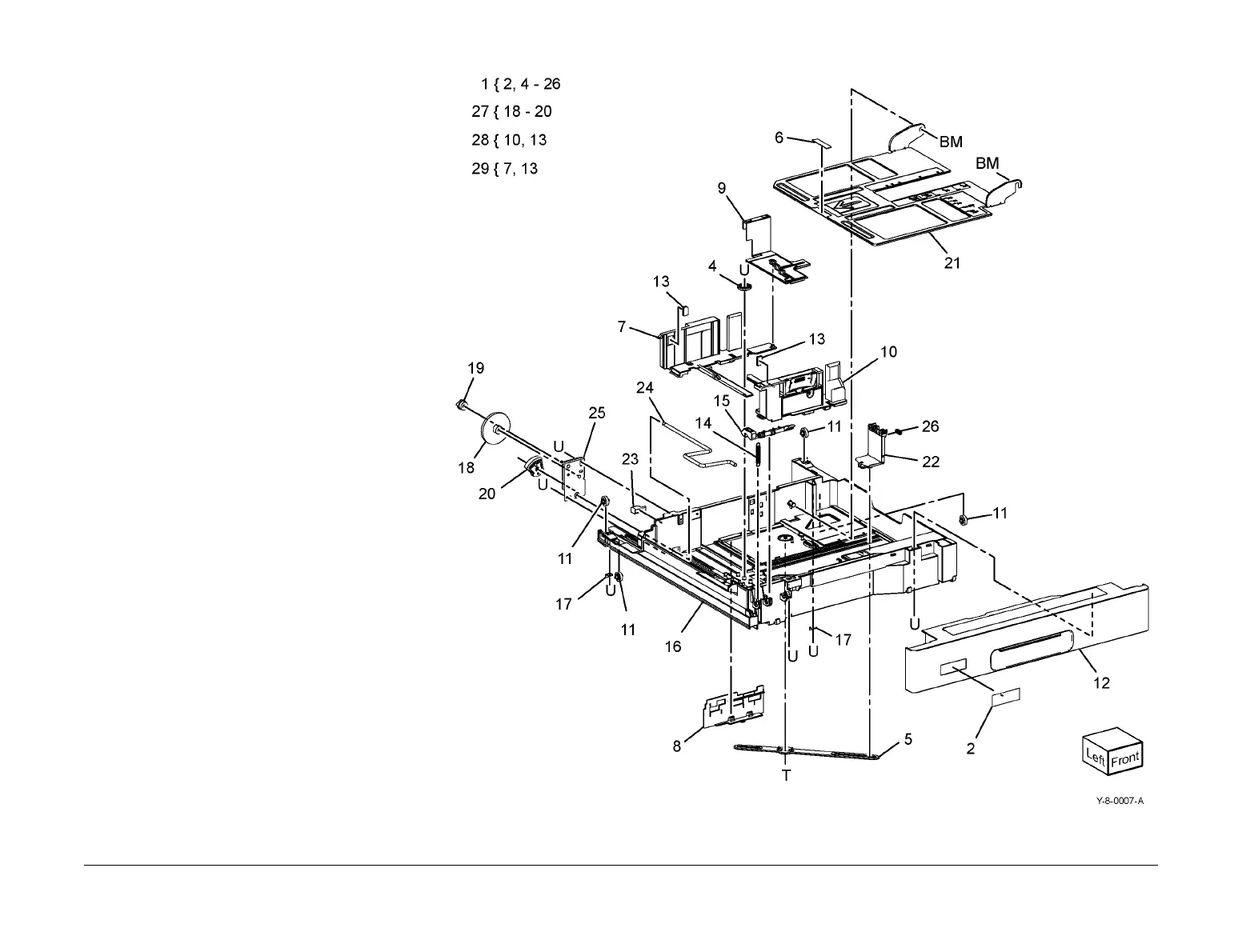

PL 70.10 Tray Component
Item Part Description
1 607K01932 A3 tray kit (See NOTE)
2 – Label (P/O PL 70.10 Item 1)
3 – Not used
4 807E13521 Pinion
5 – End link guide (P/O PL 70.10 Item
1)
6 – Bottom pad assembly (P/O PL
70.10 Item 1)
7 – Rear side guide (P/O PL 70.10 Item
1)
8 – End A3 actuator (P/O PL 70.10
Item 1)
9 – Side A3 actuator (P/O PL 70.10
Item 1)
10 – Front side guide assembly (P/O PL
70.10 Item 1)
11 059E03522 Rear roller
12 – Front cover assembly (P/O PL
70.10 Item 1)
13 819E04110 Pad
14 – Spring (P/O PL 70.10 Item 1)
15 – Latch (P/O PL 70.10 Item 1)
16 – A3 cassette housing (P/O PL 70.10
Item 1)
17 – Tray RH stopper (P/O PL 70.10
Item 1)
18 – Gear 13/60 (P/O PL 70.10 Item 27)
19 – Gear 13 (P/O PL 70.10 Item 27)
20 – Gear Z60 assembly (P/O PL 70.10
Item 27)
21 – Bottom A3 plate (P/O PL 70.10
Item 1)
22 038E44700 End guide
23 – Gasket (P/O PL 70.10 Item 1)
24 – Lift shaft (P/O PL 70.10 Item 1)
25 – Rear plate assembly (P/O PL 70.10
Item 1)
26 – Spring (P/O PL 70.10 Item 1)
27 604K20543 Gear kit
28 607K01941 Front side Guide and pad
29 607K01951 Front side Guide and pad
NOTE: Includes labels for trays 1, 2, 3 and 4.
