Xerox VersaLink B7025 Service Manual

April 2017
5-72
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 60.10
Launch Issue
Parts Lists

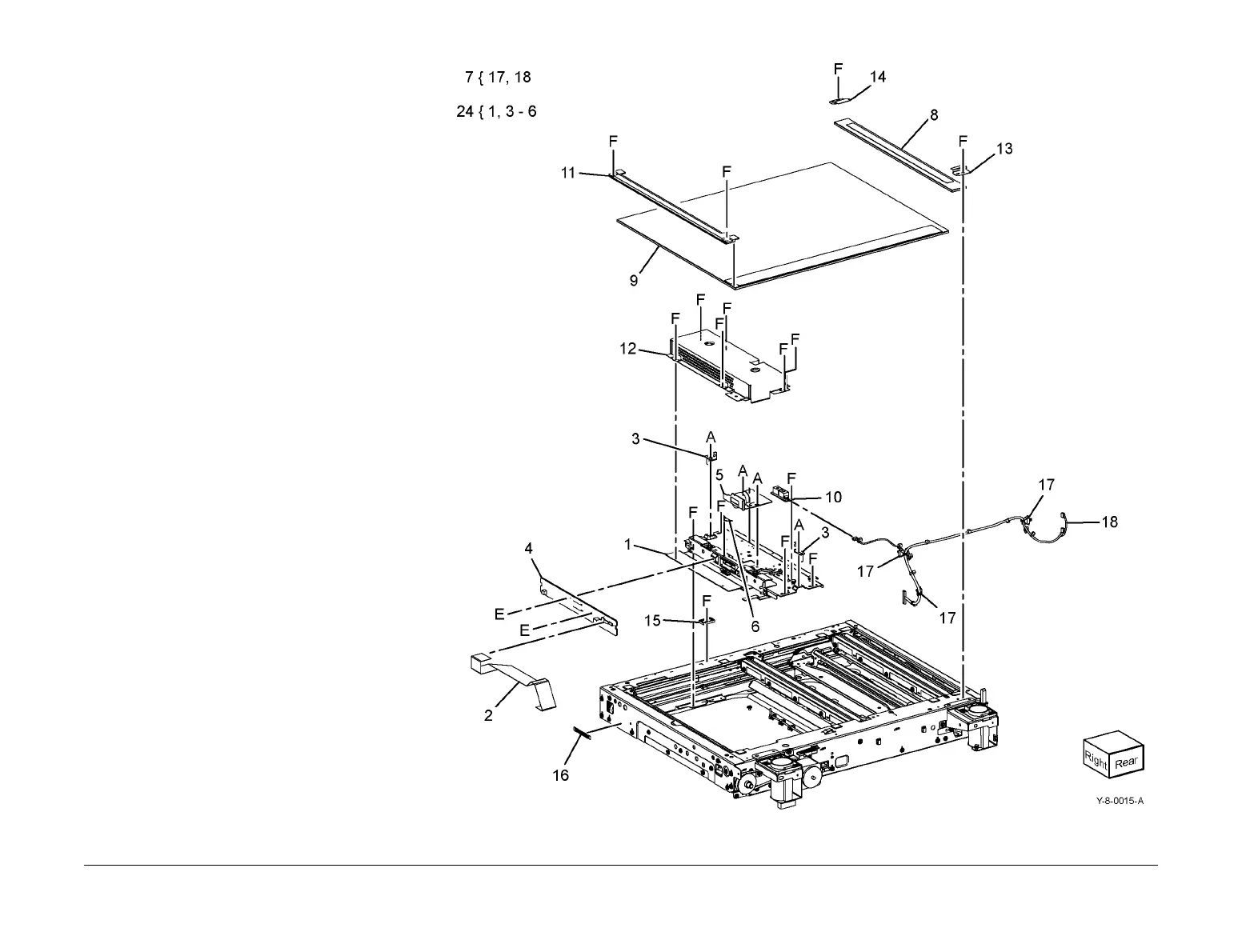

PL 60.10 CCD Lens Assembly/
Document Glass
Item Part Description
1 – Base plate assembly (P/O PL 60.10
Item 24)
2 952K20511 CCD FFC contact cable assembly
3 – Pin assembly (P/O PL 60.10 Item
24)
4 – CCD assembly (P/O PL 60.10 Item
24)
5 – CCD lens assembly (P/O PL 60.10
Item 24) (REP 60.2, ADJ 60.6)
6 – Conductor (P/O PL 60.10 Item 24)
7 952K33890 Sensor harness assembly
8 090K93320 CVT glass
9 090K93580 Document glass
10 130K64150 APS sensor 1 (Q62-251)/APS
sensor 3 (Q62-253)
11 815E58942 Right plate
12 – Lens cover assembly (Not Spared)
13 – Rear glass support (Not Spared)
14 – Front glass support (Not Spared)
15 – Glass support (Not Spared)
16 – Data plate (Not Spared)
17 – Cable tie (P/O PL 60.10 Item 7)
18 – Wire harness assembly (P/O PL
60.10 Item 7)
19 – Not used
20 – Not used
21 – Not used
22 – Not used
23 – Not used
24 604K97090 Lens kit
